Divator Pro for cylinder pack
|
2024 May
|
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

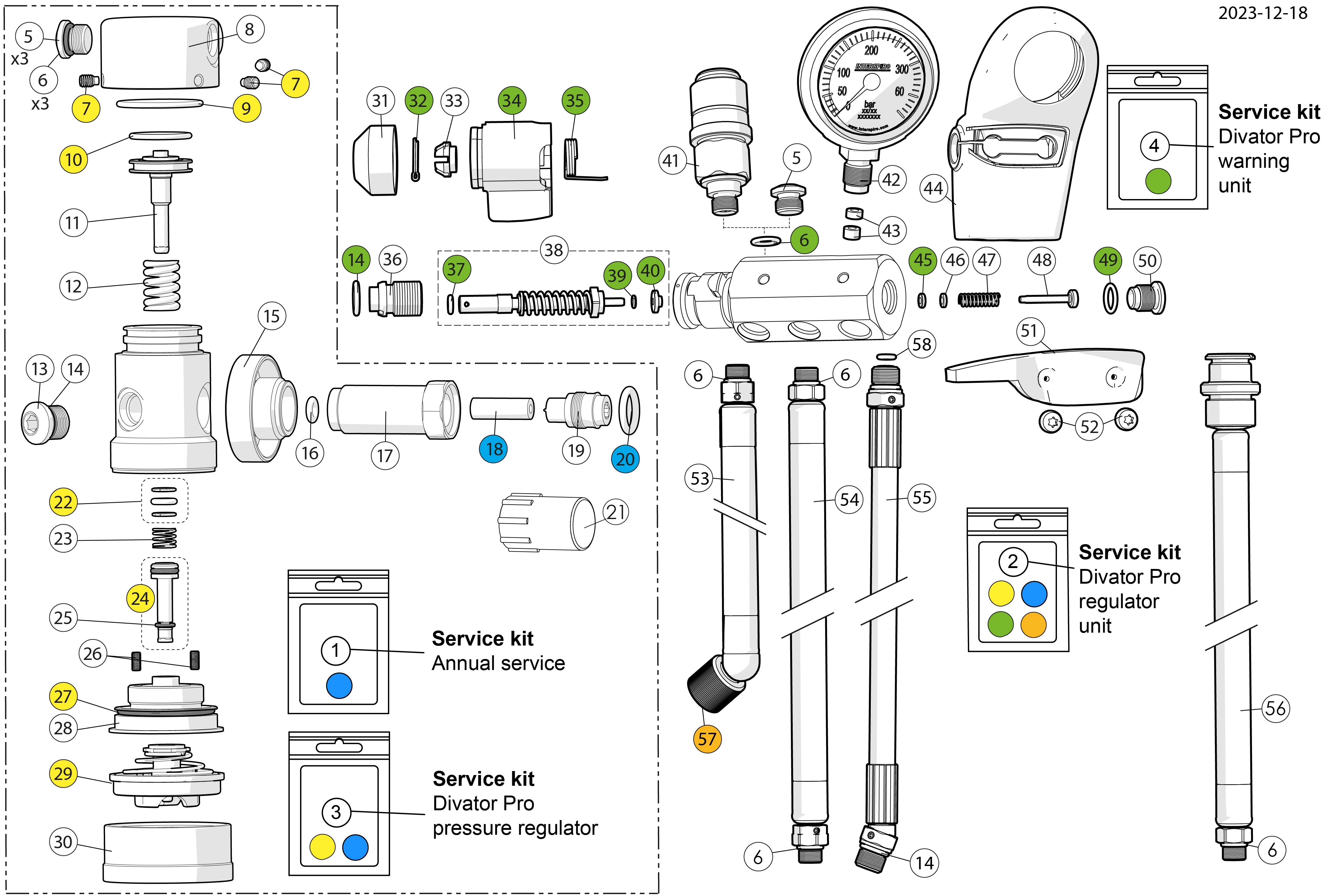

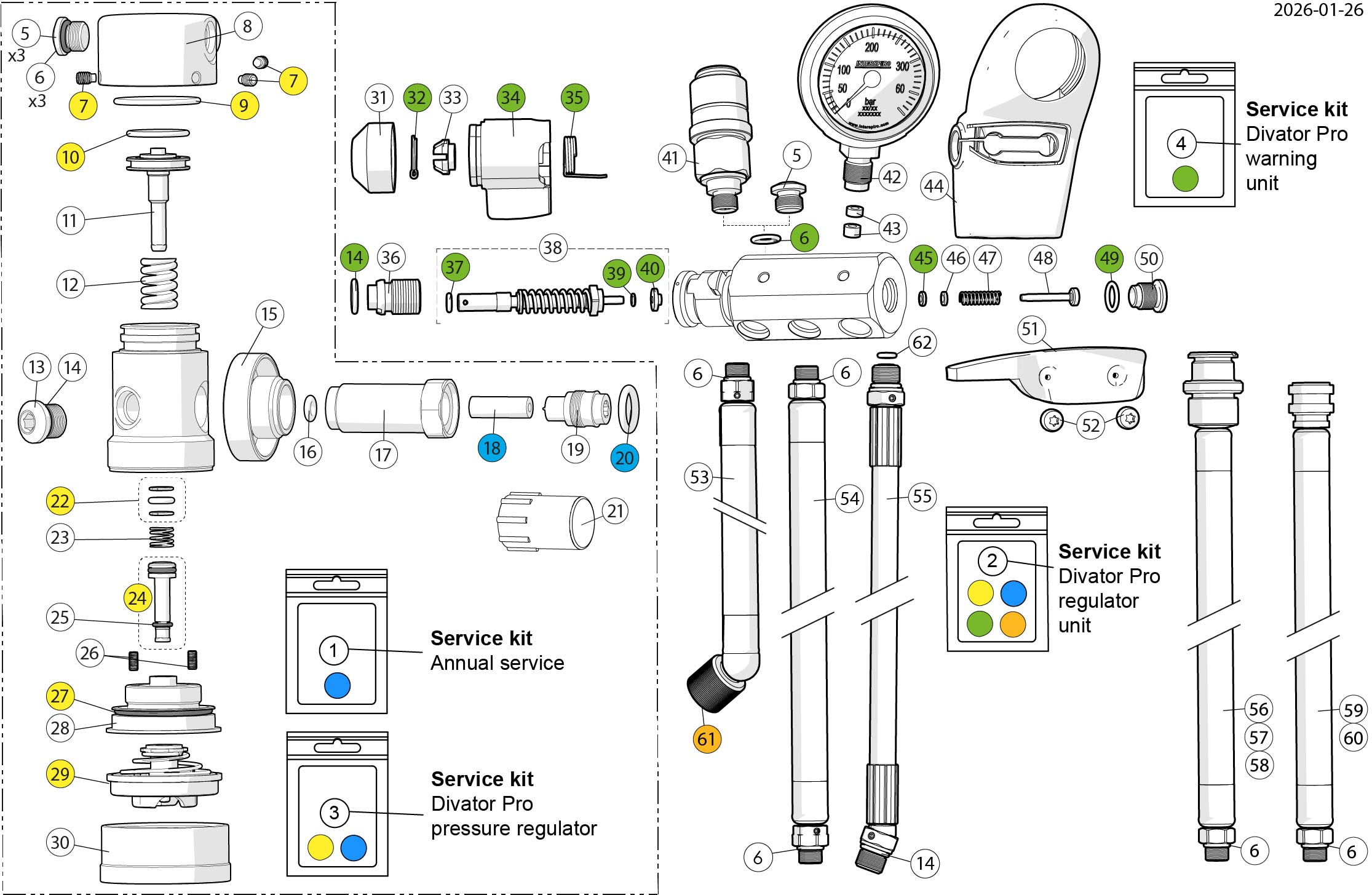

Position | Item number | Description |
1 |
460190711
|
Service kit cylinder connection
|
2 |
57645-51
|
Service Kit Divator Pro regulator unit
|
3 |
57645-52
|
Service Kit Divator Pro pressure regulator
|
4 |
57561-51
|
Service Kit Divator Pro warning unit
|
5 |
88299-51
|
Blank plug
|
6 |
57543-51
|
O-ring, 1 x 336900390
|
7 |
89129-51
|
Screw
|
8 |
87524-51
|
Cover
|
9 |
336190229
|
O-ring, 10 x 336900041
|
10 |
346190022
|
O-ring, 10 x 346900002
|
11 |
460190386
|
Piston
|
12 |
346190026
|
Spring, 5 x 346100005
|
13 |
97192-51
|
Plug 7/16-20 EN250
|
14 |
336190381
|
O-ring, 10 x 336900106
|
15 |
87463-51
|
Hand wheel
|
16 |
336190232
|
O-ring, 10 x 336900044
|
17 |
88804-52
|
Connection nipple, short
|
18 |
346190643
|
Inlet filter, 10-pack (10 x 212100014)
|
19 |
460190382
|
Sealing nipple
|
20 |
336190272
|
O-ring, 10 x 331100767
|
21 |
460190557
|
Protection cap, hand wheel, 10 x 336900327
|
22 |
97698-52
|
Supporting washers & O-ring
|
23 |
346190028
|
Spring, 5 x 336100280
|
24 |
97698-51
|
Valve seat assembly
|
25 |
460190269
|
O-ring, 2.6 x 1.3, 10 x 346900015
|
Position | Item number | Description |
26 |
99732-54
|
Stop screw
|
27 |
336190790
|
O-ring, 10 x 336900268
|
28 |
88288-51
|
Spring housing
|
29 |
88180-01
|
Safety pressure unit
|
30 |
88286-01
|
Diaphragm nut
|
31 |
460190421
|
Cap, 10 pack (10 x 336100604)
|
32 |
336190380
|
Split pin, 10-pack (10 x 336900104)
|
33 |
460190441
|
Nut, 5 pack (5 x 336100606)
|
34 |
87439-51
|
Handle, Divator Pro
|
35 |
460190430
|
Torsion spring, 5 pack (5 x 336100605)
|
36 |
460190428
|
Nipple, 5 pack (5 x 336100407)
|
37 |
336190382
|
O-ring, 10 x 336900103
|
38 |
336190404
|
Valve stem assy MKII
|
39 |
336190595
|
O-ring, 10 x 336900165
|
40 |
336190383
|
Valve disc, 5-pack (5 x 336100412)
|
41 |
31775-51
|
Underwater quick connector male
|
42 |
99265-51
|
Pressure gauge, diving, bar
|
43 |
336190159
|
Gasket set, 1 x 335100368 & 1 x 335100369
|
44 |
87440-51
|
Cover
|
45 |
89134-51
|
Gasket
|
46 |
89141-51
|
Washer
|
47 |
89142-51
|
Spring
|
48 |
89132-54
|
Piston
|
49 |
336190311
|
O-ring, 10 x 944610206
|
50 |
87438-51
|
Blank plug
|
Position | Item number | Description |
51 |
87450-51
|
Cover holder
|
52 |
57562-51
|
Screw
|
53 |
57575-105
|
Breathing hose, 1.05 M
|
54 |
57578-110
|
Medium pressure hose, 1.1 M
|
55 |
57577-110
|
High pressure hose
|
56 |
57576-100
|
Dry suit inflation hose 1 M
|
57 |
336190237
|
O-ring, 10 x 336900099
|
58 |
57672-52
|
O-ring, 10 x OR4,1X1,6-E70
|

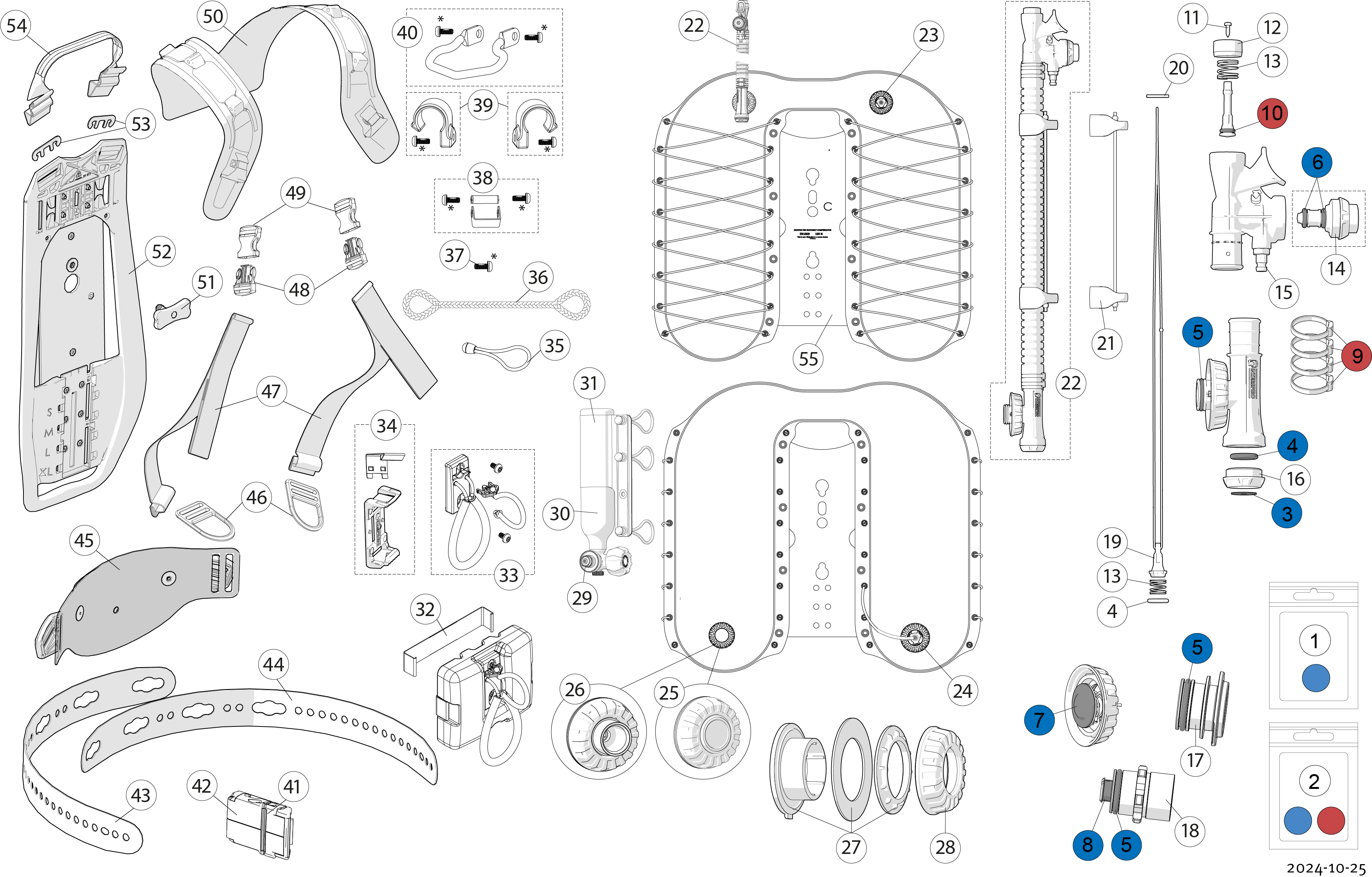

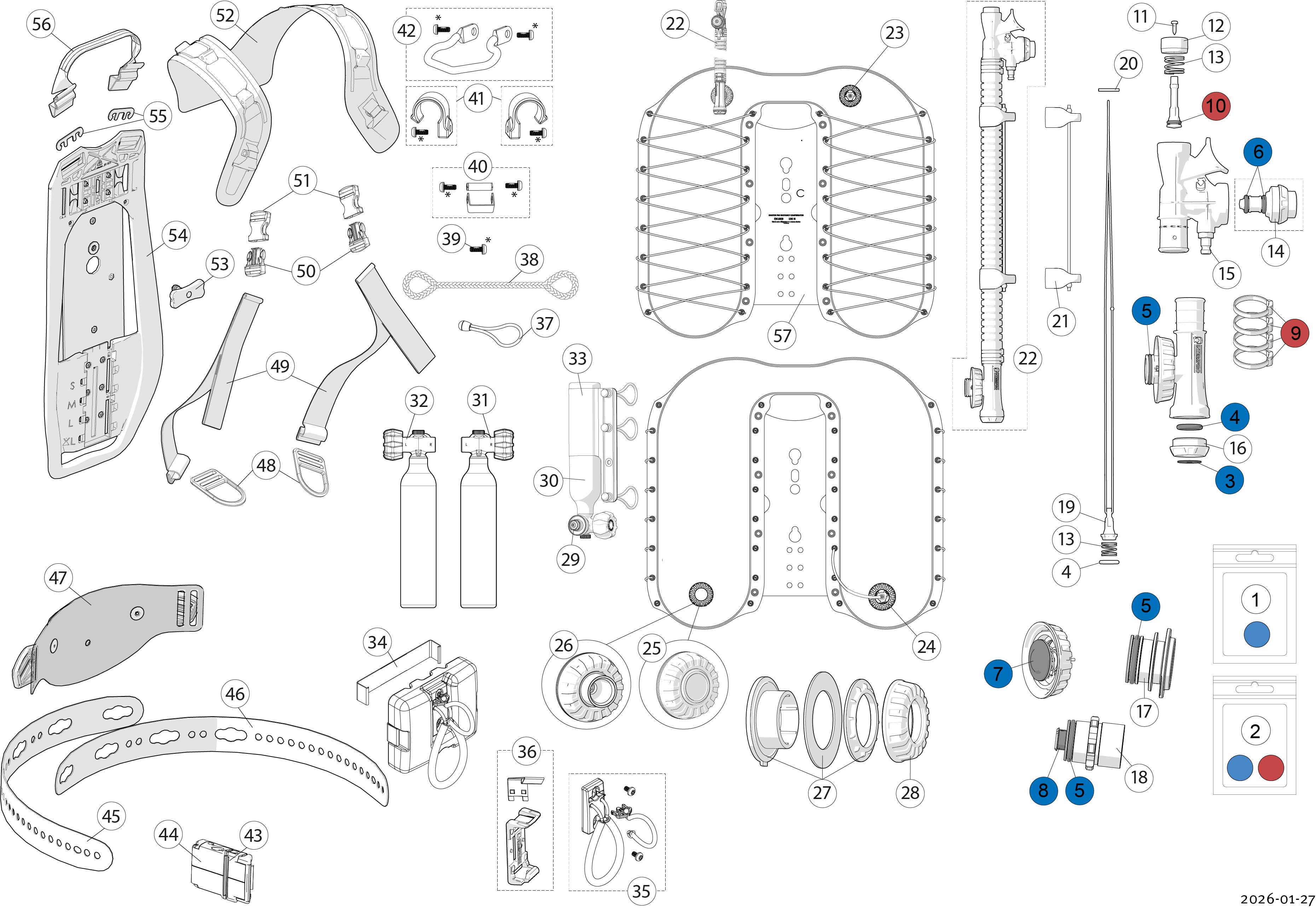

Position | Item number | Description |
1 |
57678-51
|
Service kit AP inflator
|
2 |
57655-51
|
Handle
|
3 |
33466-51
|
Backplate clip, 2 x 33466-01
|
4 |
57656-51
|
Shoulder strap unit
|
5 |
57657-51
|
Backplate Divator Pro
|
6 |
57658-51
|
Rotary handle
|
7 |
87308-53
|
Buckle, female, 2-pack
|
8 |
87308-55
|
Buckle, male, 2-pack
|
9 |
57659-51
|
Adjusting strap, shoulder
|
10 |
57666-51
|
Tri-glide D-ring
|
11 |
57660-51
|
Waist belt holder plate
|
12 |
87525-51
|
Waist belt, left
|
13 |
87525-52
|
Waist belt, right
|
14 |
87073-51
|
Waist buckle
|
15 |
88265-51
|
O-ring
|
16 |
57661-51
|
D-ring kit
|
17 |
57662-51
|
Hose holder kit
|
18 |
57663-51
|
Buckle holder kit
|
19 |
99711-852
|
Screw, 10 x 99711-802
|
20 |
57664-51
|
Relief loop
|
21 |
99431-51
|
Elastic cord loop with knob, 5-pack
|
22 |
87096-51
|
Weight holder kit
|
23 |
87515-51
|
Weight bracket
|
24 |
57665-51
|
Weight release kit
|
25 |
57549-51
|
Holder for inflation cylinder
|
Position | Item number | Description |
26 |
30146-01
|
Inflator cylinder, 0.35 L - in-line cylinder valve
|
27 |
336190272
|
O-ring, 10 x 331100767
|
28 |
57548-51
|
Pro Connection Inflation Cylinder
|
29 |
57669-51
|
Plug AP
|
30 |
87398-51
|
Dump valve waist complete set
|
31 |
57679-51
|
Inflator unit AP
|
32 |
87397-51
|
Dump valve shoulder complete set
|
33 |
57641-51
|
Bladder
|
34 |
57654-51
|
Zip tie AP
|
