Spare part list










Octopus breathing valve with holder



2024 May

READ BEFORE USE


1. Only holders of a valid Interspiro Service Certificate may carry out
    service and repairs on Interspiro breathing equipment. Unauthorized
    service may result in malfunction and users relying thereon could
    sustain severe respiratory injury or death.


2. When using the spare part list always refer to the equipment's Service
    manual in regard to procedures and handling of the spare parts
    assembly and function.


3. Changes to this document – necessitated by typographical errors,
    inaccuracies of current information or improvements and changes of
    equipment – may be done at any time and without prior notice. Always
    refer to the Interspiro webpage for the latest version.


4. The description defines if the spare part is a multi-pack,
    e. g. "10 x 336100437" indicates that this is a multi-pack
    that consists of 10 pieces of the single component 336100437.
    The single component part number 336100437 can not be ordered,
    it is only used to label parts included in service kits.


5. The service kits contain replacement items used for preventive
    maintenance.


6.  Always refer to the Interspiro webpage for product and document
     updates and important notices.

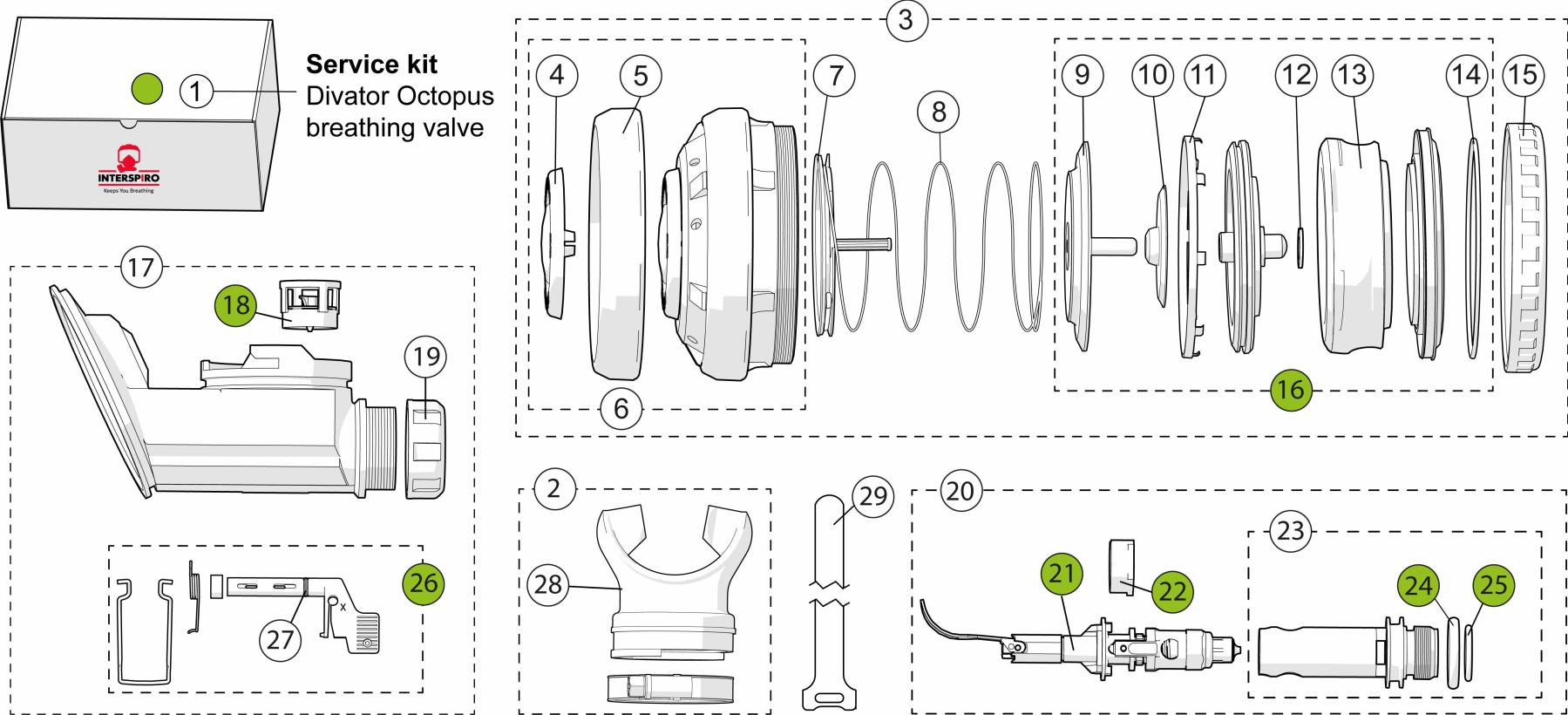

Spare Parts Divator Octopus






Spare Parts Divator Octopus
Position Item number Description
1
460200510
Service kit for 1 Divator Octopus breathing valve with lever
2
336190353
Mouthpiece kit
3
336101155
Exhalation unit, without safety pressure, black
4
336190487
Purge button, 5 x 336100432
5
99485-51
Shield ring, yellow, 5-pack
6
460190518
Cover with purge button, black
7
460190721
Guide disc Divator, BV, NP
8
460190500
Sealing spring, without SP, 5 x 333100056
9
460190393
Sealing disc, 5-pack (5 x 336100005)
10
30005-51
Exhalation diaphragm 5-pack Natural rubber, black
11
460190413
Securing ring 10-pack (10 x 336100008)
12
336190638
Washer, 10 x 336100437
13
460190140
Diaphragm for breathing valve, (1 x 336100009)
14
336190224
O-ring, 5 x 336900009
15
460190515
Locking ring, black, 5 x 336101139
16
336190360
Diaphragm unit MK II
17
336101156
Valve housing assy MKll, black, without safty pressure
18
460190559
Non return valve assy
19
460190516
Locking nut, black, 5 x 336101140
20
460190558
Valve insert Divator w/o SP
21
97083-51
Valve insert subassy with normal pressure
22
346190198
Retaining ring 10-pack 10 x 336100777
23
96341-52
Connection nipple, green O-ring
24
336190228
O-ring, 12.42x1.78, NBR, 10 x 336900007
25
99486-51
O-ring , green, 10 x 99486-01

Spare Parts Divator Octopus
Position Item number Description
26
32408-51
Lever assembly with adjustment screw
27
336190225
O-ring, 10 x 336900001
28
460190505
Mouthpiece
29
30776-51
Velcro Strap Spare Part
