Divator Pro pack, 2 x 7.2 L
|
2024 September
|
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

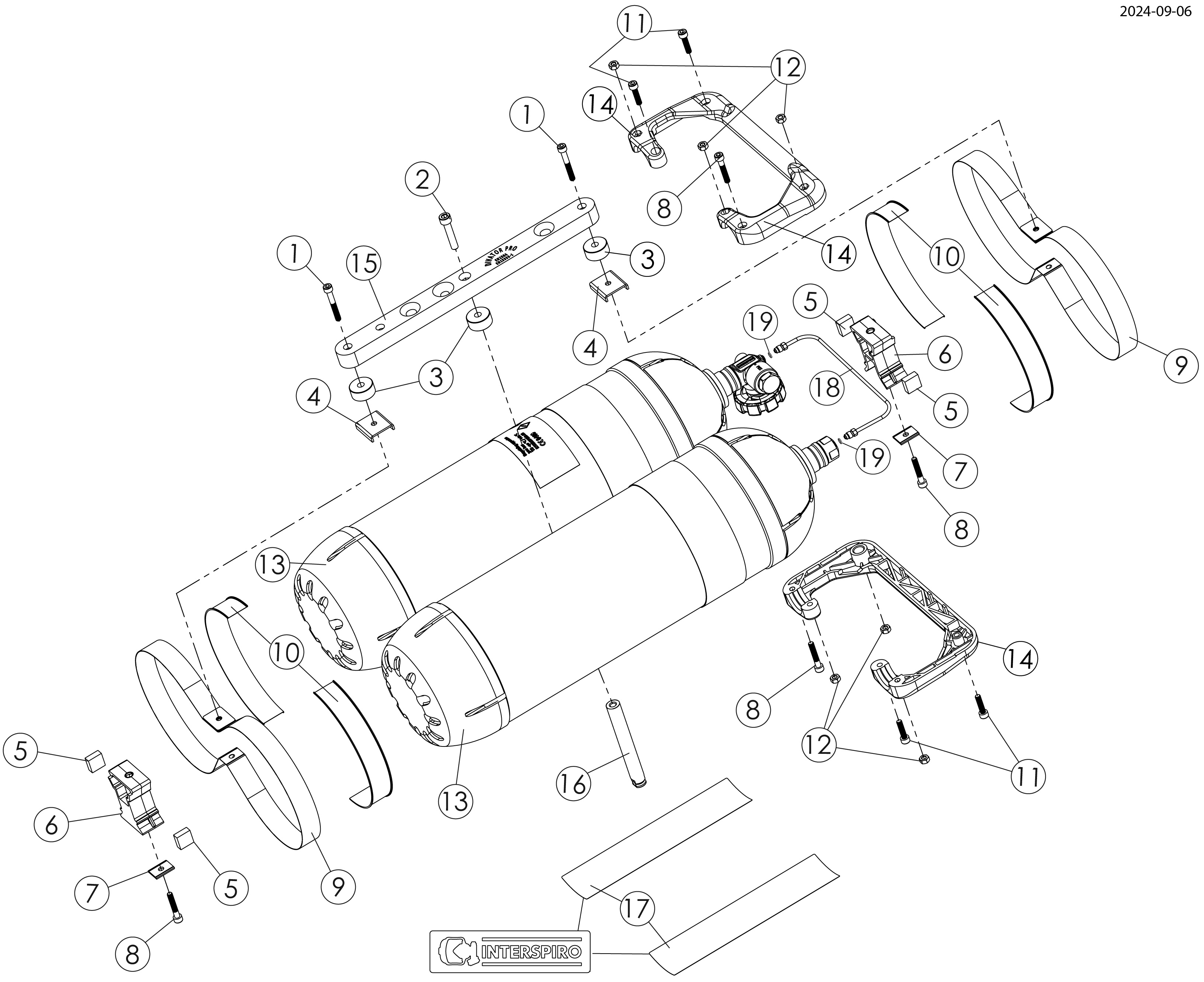

Position | Item number | Description |
1 |
460190625
|
Screw, 10 x 356900003
|
2 |
99727-60
|
Screw
|
3 |
87538-51
|
Distance washer
|
4 |
460190468
|
Retaining plate, 10 x 336100071
|
5 |
97510-51
|
Anti-slide protection, 4-pack
|
6 |
460190474
|
Spacer 3.4L & 3.5 L & Divator Lite 6.7 L & Pro 7.2 L, 2-pack
|
7 |
460190624
|
Washer, 10 x 356100008
|
8 |
97506-51
|
Screw, 10 x 99730-01
|
9 |
97513-51
|
Tension strap assy
|
10 |
460190219
|
Protective ring, 10 x 336100068
|
11 |
336190241
|
Screw, 10 x 99730-10
|
12 |
336190244
|
Nut 10-pack 10 x 941680316
|
13 |
57606-51
|
Cylinder boot 7.2 L
|
14 |
98889-51
|
Handle kit incl screws and nuts, width 201 mm
|
15 |
87537-51
|
Spacing rod, Divator Pro
|
16 |
97502-53
|
Weight shaft
|
17 |
460190230
|
Interspiro label, 10 x 95849-01
|
18 |
69032-51
|
Primer
|
19 |
69031-51
|
Glue Cartridge
|

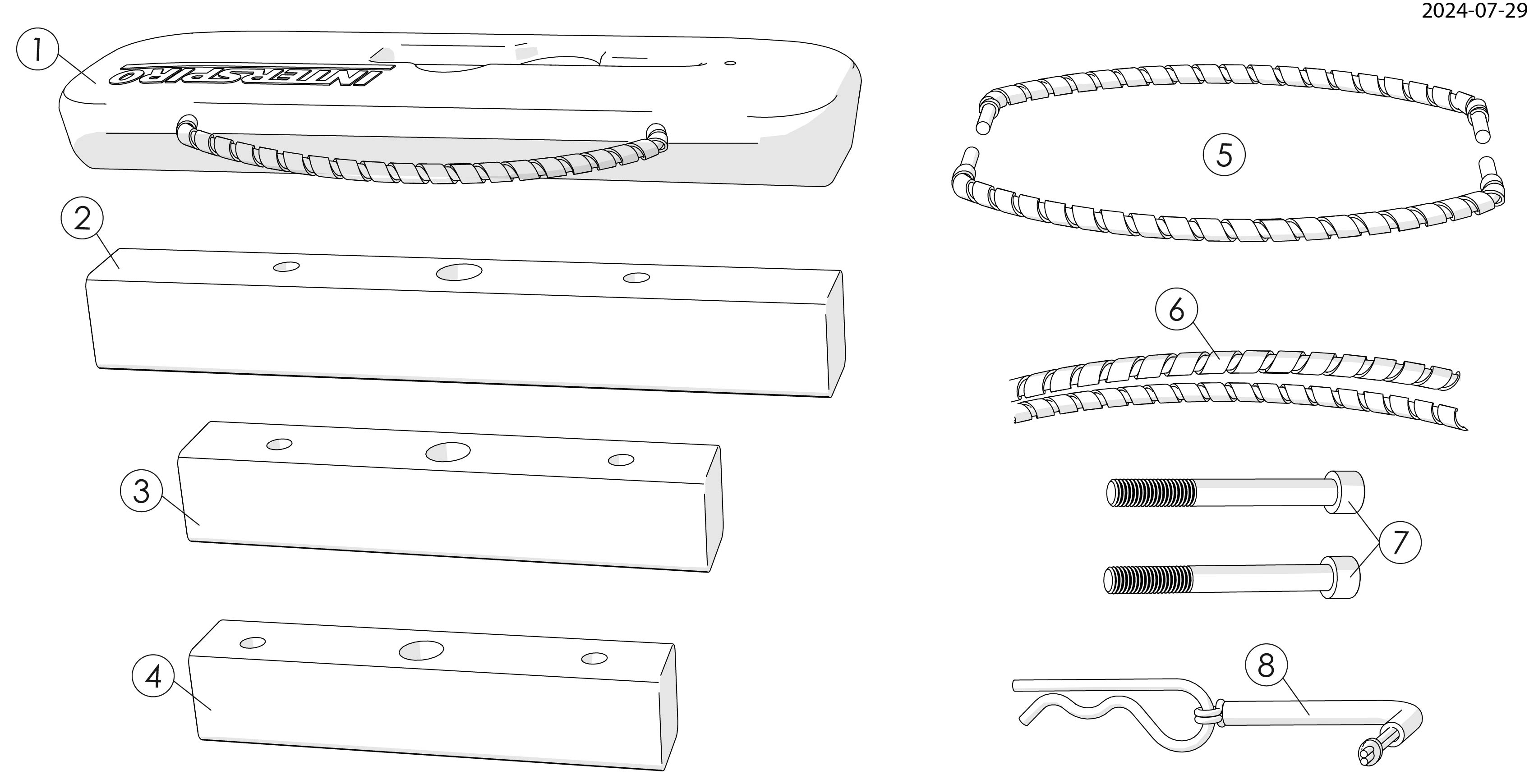

Position | Item number | Description |
1 |
97521-51
|
Weight upper. 7.2 kg
|
2 |
97522-51
|
Weight lower. 3.0 kg
|
3 |
97522-52
|
Weight lower 2.1kg
|
4 |
97522-53
|
Weight lower 1.1kg
|
5 |
460200524
|
Handle wire kit, upper weight
|
6 |
88199-51
|
Handle protection for 5 Divator weights
|
7 |
97528-51
|
Screw, 2 x 97528-01
|
8 |
460190570
|
Hair pin assy
|

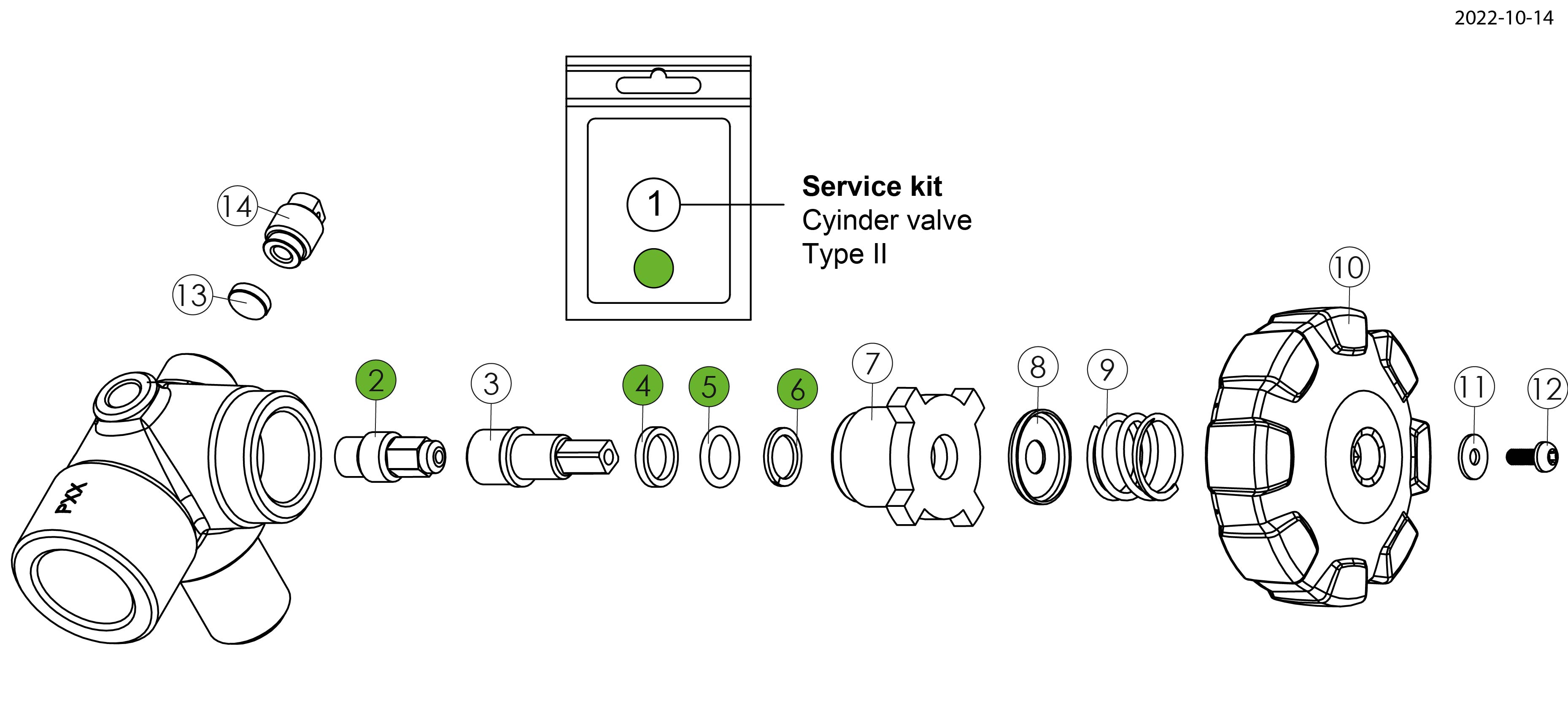

Position | Item number | Description |
1 |
460190686
|
Service kit cylinder valve, Type II
|
2 |
97850-51
|
Valve slug
|
3 |
97849-51
|
Valve stem
|
4 |
97853-51
|
Glide washer, 10-pack
|
5 |
336190381
|
O-ring, 10 x 336900106
|
6 |
97847-51
|
Back-up ring, 10 x 97847-01
|
7 |
97852-51
|
Gland nut
|
8 |
336922104
|
Washer, 10-pack (10 x 336100057)
|
9 |
336922105
|
Spring, 10-pack (10 x 336100058)
|
10 |
95719-51
|
Hand wheel assy, black Replaces 460190243
|
11 |
336190296
|
Washer, 10 x 336900093
|
12 |
336190297
|
Screw, 10 x 336900094
|
13 |
97740-51
|
Burst disc
|
14 |
97399-51
|
Burst disc plug
|
