Spare part list










Divator Lite cylinder pack 2 x 7.2 L, PED approval (EU)



2026 February

READ BEFORE USE


1. Only holders of a valid Interspiro Service Certificate may carry out
    service and repairs on Interspiro breathing equipment. Unauthorized
    service may result in malfunction and users relying thereon could
    sustain severe respiratory injury or death.


2. When using the spare part list always refer to the equipment's Service
    manual in regard to procedures and handling of the spare parts
    assembly and function.


3. Changes to this document – necessitated by typographical errors,
    inaccuracies of current information or improvements and changes of
    equipment – may be done at any time and without prior notice. Always
    refer to the Interspiro webpage for the latest version.


4. The description defines if the spare part is a multi-pack,
    e. g. "10 x 336100437" indicates that this is a multi-pack
    that consists of 10 pieces of the single component 336100437.
    The single component part number 336100437 can not be ordered,
    it is only used to label parts included in service kits.


5. The service kits contain replacement items used for preventive
    maintenance.


6.  Always refer to the Interspiro webpage for product and document
     updates and important notices.

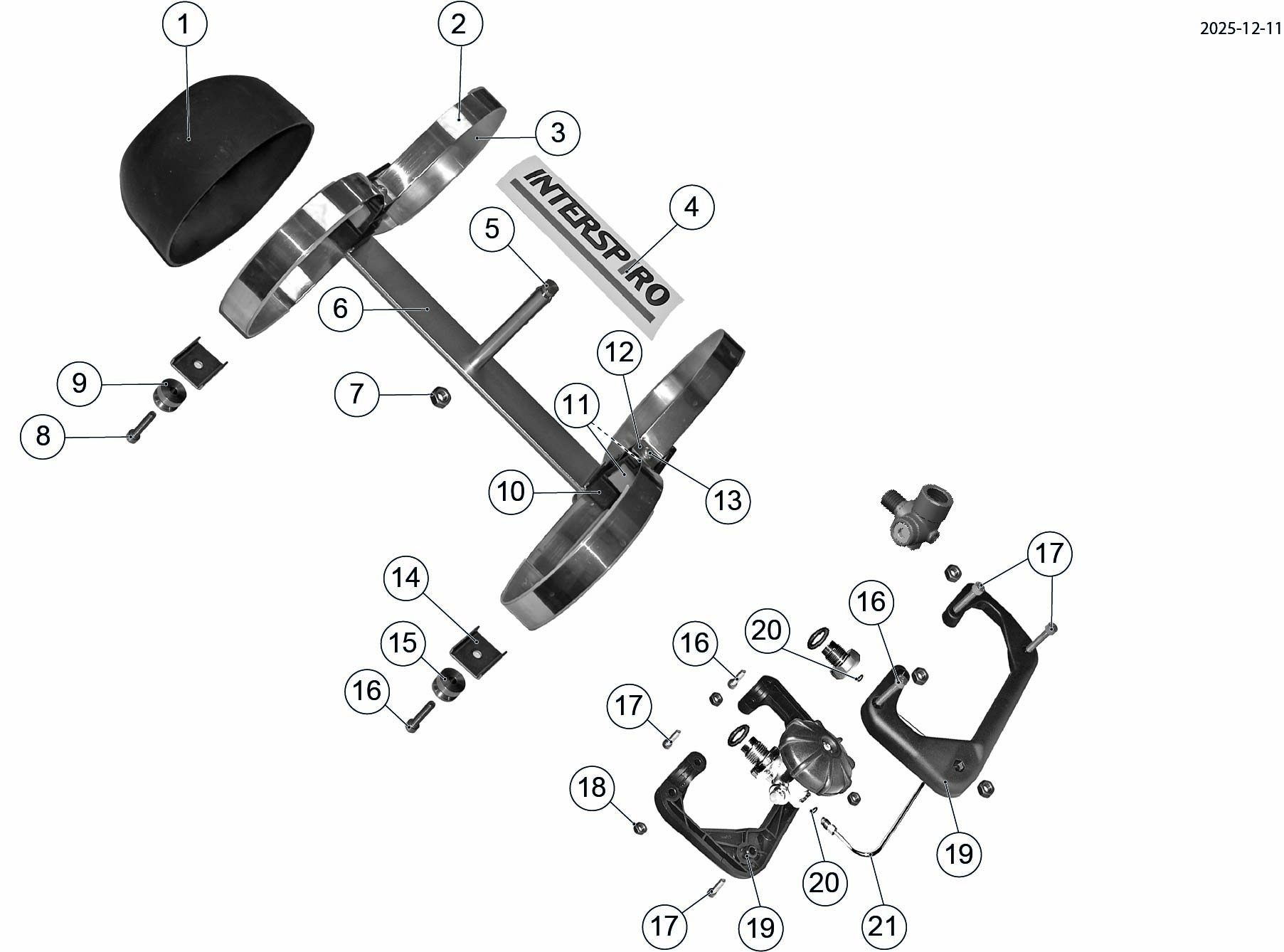

Spare Parts Divator Lite pack 2 x 7.2L






Spare Parts Divator Lite pack 2 x 7.2L
Position Item number Description
1
57606-51
Cylinder boot 7.2 L
2
97513-51
Tension strap assy
3
460190219
Protective ring, 10 x 336100068
4
460190230
Interspiro label, 10 x 95849-01
5
97502-51
Weight shaft 116,1 mm
6
97501-51
Spacing rod
7
97507-51
Nut, 10 pack
8
460190625
Screw, 10 x 356900003
9
97857-51
Guide washer
10
460190474
Spacer 3.4L & 3.5 L & Divator Lite 6.7 L & Pro 7.2 L, 2-pack
11
97510-51
Anti-slide protection, 4-pack
12
460190624
Washer, 10 x 356100008
13
97506-51
Screw, 10 x 99730-01
14
460190468
Retaining plate, 10 x 336100071
15
97857-52
Guide washer
16
336190243
Screw, 10 x 99730-01
17
336190241
Screw, 10 x 99730-10
18
336190244
Nut 10-pack 10 x 941680316
19
98889-51
Handle kit incl screws and nuts, width 201 mm
20
460190301
Gasket, 10-pack (10 x 336100305)
21
98891-51
Cross over tube for cylinder pack 2x7.2L & 326.7
