Spare part list
|
Divator MKII regulator
|
|
2024 December
|
READ BEFORE USE
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

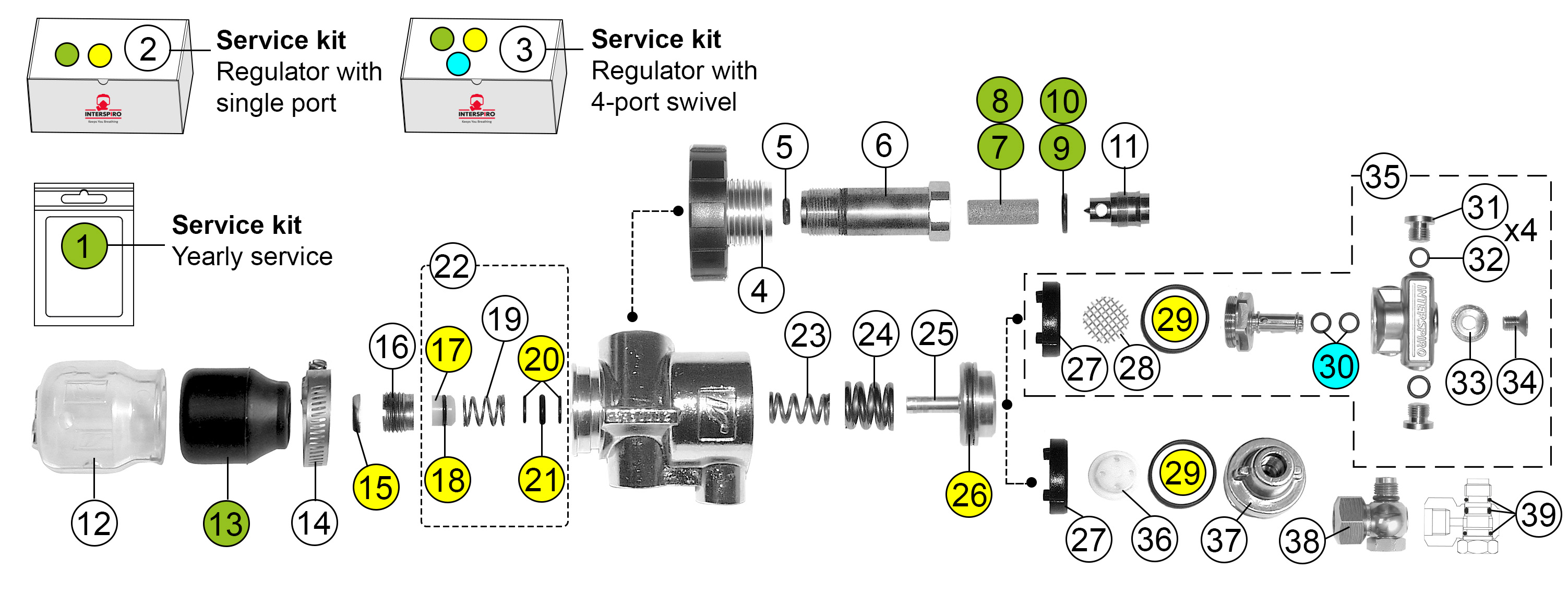

| Position | Item number | Description |
| 1 |
460200507
|
Service kit Divator MKII annual service
|
| 2 |
460190910
|
Service kit Divator Regulator single port
|
| 3 |
460190756
|
Service kit Divtator MKII with 4-port swivel
|
| 4 |
460190385
|
Hand wheel Connector Replaces 331100398
|
| 5 |
336190232
|
O-ring, 10 x 336900044
|
| 6 |
460190383
|
Connection nipple
|
| 7 |
346190643
|
Inlet filter, 10-pack (10 x 212100014)
|
| 8 |
346190644
|
Inlet Filter, 100-pack (100 x 212100014)
|
| 9 |
336190272
|
O-ring, 10 x 331100767
|
| 10 |
460190237
|
O-ring, 100 x 331100767
|
| 11 |
460190382
|
Sealing nipple
|
| 12 |
460190523
|
Anti freezing cover
|
| 13 |
460190507
|
Antifreezing cap, 6 x 336100425
|
| 14 |
460190526
|
Hose clamp
|
| 15 |
336190256
|
Sealing plate, 25-pack (25 x 336100035)
|
| 16 |
460190425
|
Adjustment screw, 5 x 336100127
|
| 17 |
460190591
|
Valve seat, 10 x 336100126
|
| 18 |
336190231
|
O-ring, 10 x 336900043
|
| 19 |
346190028
|
Spring, 5 x 336100280
|
| 20 |
336190637
|
Supporting washer, 10 x 336100131
|
| 21 |
336190233
|
O-ring, 10 x 336900045
|
| 22 |
460190648
|
Valve seat set MKII & P+ regulator
|
| 23 |
460190422
|
Regulating spring, 5-pack (5 x 336100422)
|
| 24 |
460190484
|
Spring, 5 x 336100048
|
| 25 |
460190420
|
Piston
|
| Position | Item number | Description |
| 26 |
336190230
|
O-ring, 10 x 336900042
|
| 27 |
460190424
|
Stop ring, 5-pack (5 x 336100049)
|
| 28 |
99038-51
|
Swivel MKII, Diffusor, 10-pack
|
| 29 |
336190229
|
O-ring, 10 x 336900041
|
| 30 |
336190237
|
O-ring, 10 x 336900099
|
| 31 |
460190755
|
Blank plug UNF 3/8 with O-ring, 2-pack
|
| 32 |
460190529
|
O-ring, 10 x 336920009
|
| 33 |
99013-51
|
Swivel MKII, Washer, 10-pack
|
| 34 |
98939-51
|
Swivel MKII, Screw 10-pack
|
| 35 |
99014-51
|
4-port MKII swivel UNF 3/8, plugged ports
|
| 36 |
460190564
|
Diffuser
|
| 37 |
460190506
|
Cover
|
| 38 |
460190906
|
Service kit Divator Swivel BSP1/8"-BSP1/8"
|

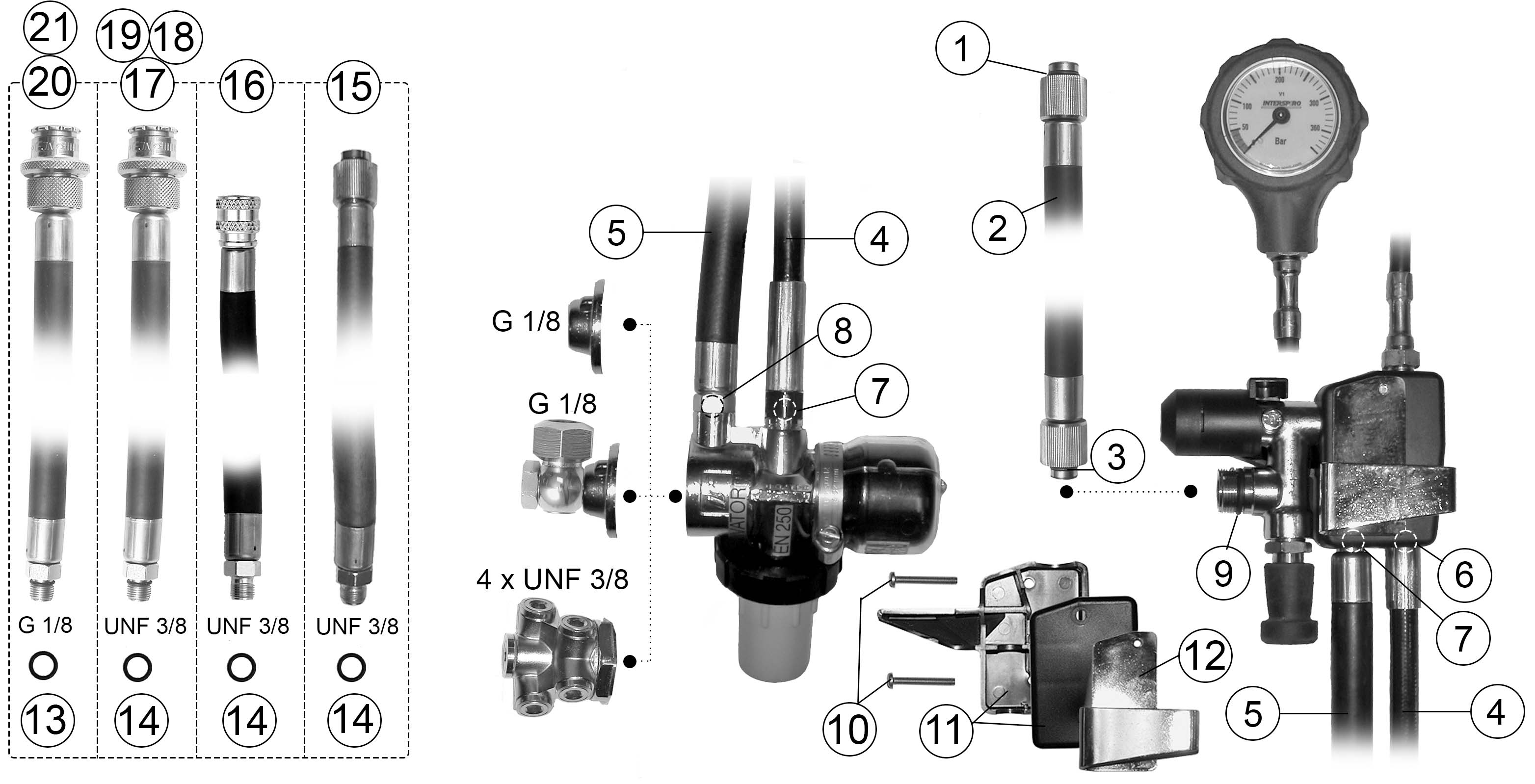

| Position | Item number | Description |
| 1 |
336190236
|
O-ring, 10 x 944610205
|
| 2 |
460190560
|
Breathing hose, 0.75 M
|
| 3 |
336190237
|
O-ring, 10 x 336900099
|
| 4 |
336190265
|
High pressure hose
|
| 5 |
336190288
|
Supply hose
|
| 6 |
336190235
|
O-ring, 10 x 944610201
|
| 7 |
336190221
|
O-ring, 10 x 944610204
|
| 8 |
336190311
|
O-ring, 10 x 944610206
|
| 9 |
336190228
|
O-ring, 12.42x1.78, NBR, 10 x 336900007
|
| 10 |
336190247
|
Screw, 10 pack (10 x 336900057)
|
| 11 |
460190427
|
Cover (front and back) Replaces 336100416, 417
|
| 12 |
460190503
|
Retaining clip
|
| 13 |
460190599
|
O-ring, 10 x 336900272
|
| 14 |
460190529
|
O-ring, 10 x 336920009
|
| 15 |
99007-51
|
Breathing hose, 3/8 UNF, 1.70 M / 67 inch
|
| 16 |
336291131
|
Divator BCW Inflation Hose, UNF 3/8, MKII/MKII FJ/MKIII, 1.15 m
|
| 17 |
97474-53
|
Dry suit inflation hose 0.75 M, CEJN 221-UNF 3/8, locked
|
| 18 |
97474-54
|
Dry suit inflation hose 1.0 M, CEJN 221-UNF 3/8, locked
|
| 19 |
97474-63
|
Dry suit inflation hose 0.75 M, CEJN 221-UNF 3/8, unlocked
|
| 20 |
97474-52
|
Dry suit inflation hose 0.75 M, CEJN 221-G 1/8, locked
|
| 21 |
97474-62
|
Dry suit inflation hose 0.75 M, CEJN 221-G 1/8, unlocked
|

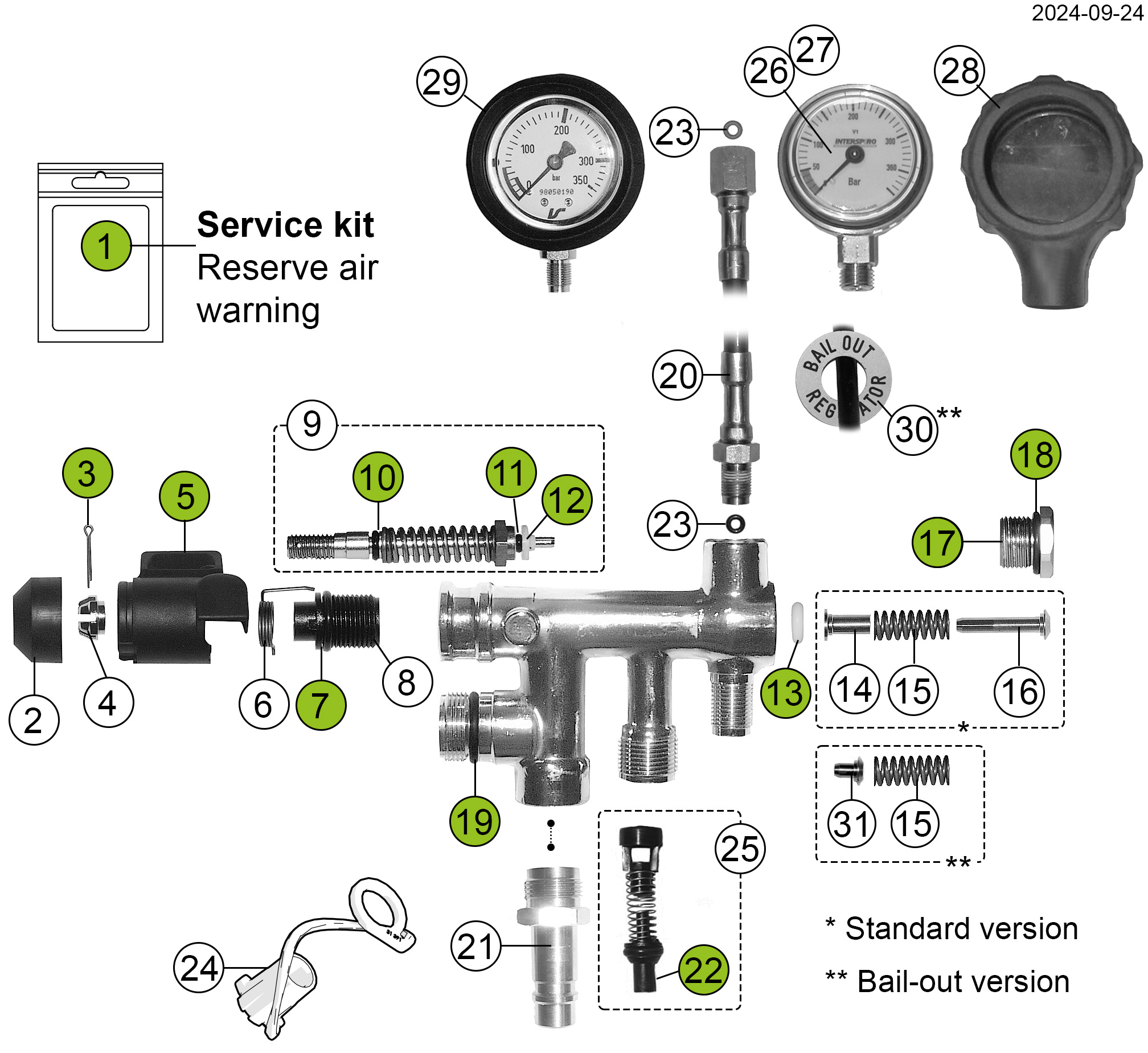

| Position | Item number | Description |
| 1 |
460190908
|
Service kit Divator Warning
|
| 2 |
460190421
|
Cap, 10 pack (10 x 336100604)
|
| 3 |
336190380
|
Split pin, 10-pack (10 x 336900104)
|
| 4 |
460190441
|
Nut, 5 pack (5 x 336100606)
|
| 5 |
460190433
|
Handle, 5 pack (5 x 336100603)
|
| 6 |
460190430
|
Torsion spring, 5 pack (5 x 336100605)
|
| 7 |
336190381
|
O-ring, 10 x 336900106
|
| 8 |
460190428
|
Nipple, 5 pack (5 x 336100407)
|
| 9 |
336190404
|
Valve stem assy MKII
|
| 10 |
336190382
|
O-ring, 10 x 336900103
|
| 11 |
336190595
|
O-ring, 10 x 336900165
|
| 12 |
336190383
|
Valve disc, 5-pack (5 x 336100412)
|
| 13 |
336190240
|
O-ring, 5 x 331100562
|
| 14 |
460190439
|
Guide bushing, 5 pack (5 x 336100402)
|
| 15 |
460190437
|
Spring, 5 x 336100401
|
| 16 |
460190431
|
Piston, 5 pack (5 x 336100400)
|
| 17 |
460190442
|
Plug, 5 pack (5 x 336100403)
|
| 18 |
336190384
|
O-ring, 10 x 944610209
|
| 19 |
336190228
|
O-ring, 12.42x1.78, NBR, 10 x 336900007
|
| 20 |
460190527
|
High pressure hose, short
|
| 21 |
96531-51
|
Quick coupling, Interspiro, male Replaces 460190485
|
| 22 |
460190369
|
Cone with o-ring
|
| 23 |
336190235
|
O-ring, 10 x 944610201
|
| 24 |
31391-51
|
Dust cover, small, 10-pack
|
| 25 |
346190223
|
Non-return valve
|
| Position | Item number | Description |
| 26 |
99265-51
|
Pressure gauge, diving, bar
|
| 27 |
99265-52
|
Pressure gauge, diving, psi
|
| 28 |
99266-53
|
Pressure gauge cover
|
| 29 |
96548-51
|
Rubber cover Replaces 336100771
|
| 30 |
96554-51
|
Label for Bail-Out Regulator
|
| 31 |
96728
|
Piston bail-out valve
|
