Divator MKIII Regulator
|
2024 September
|
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

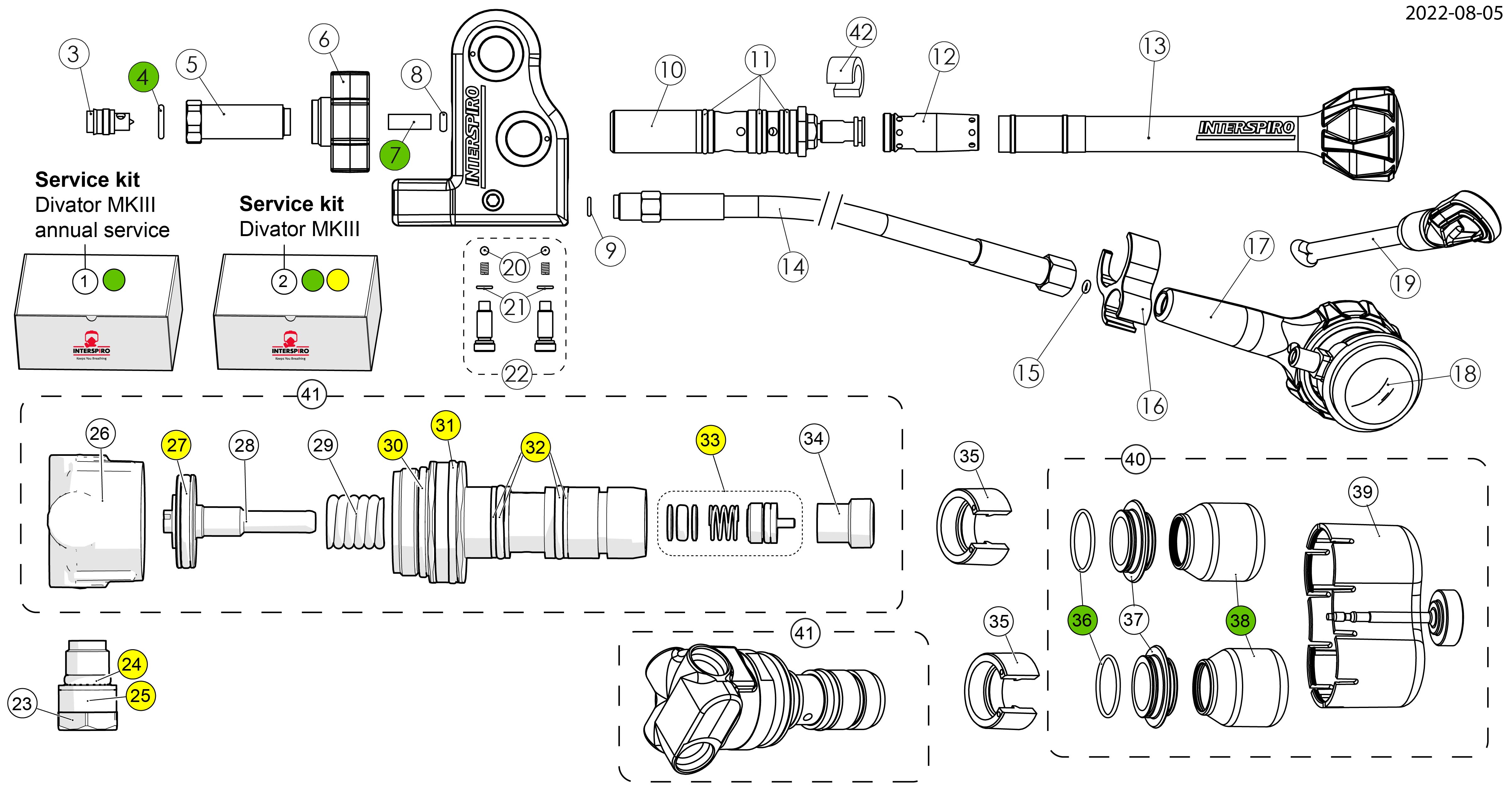

Position | Item number | Description |
1 |
460190717
|
Service kit Divator MKIII annual service
|
2 |
460200518
|
Service kit Divator MKIII regulator unit
|
3 |
460190382
|
Sealing nipple
|
4 |
336190272
|
O-ring, 10 x 331100767
|
5 |
460190383
|
Connection nipple
|
6 |
88178-51
|
Handwheel G5/8"
|
7 |
346190643
|
Inlet filter, 10-pack (10 x 212100014)
|
8 |
336190232
|
O-ring, 10 x 336900044
|
9 |
336190221
|
O-ring, 10 x 944610204
|
10 |
88120-51
|
CDR valve insert
|
11 |
346190021
|
O-ring, 10 x 346900001
|
12 |
88113-52
|
Bend protection - Replaces 88113-51
|
13 |
88111-51
|
CDR Valve handle
|
14 |
460190724
|
High pressure hose (75 cm)
|
15 |
336190235
|
O-ring, 10 x 944610201
|
16 |
88115-51
|
Octopus holder, yellow, 5 x 88115-01
|
17 |
99266-54
|
Pressure gauge cover, diving with hole for holder strap
|
18 |
99265-51
|
Pressure gauge, diving, bar
|
19 |
88139-52
|
Holder cord with hook
|
20 |
96599-53
|
Ball, 4 mm 10-pack
|
21 |
88137-51
|
O-ring, 10 x 88137-01
|
22 |
460190758
|
Mounting kit warning valve
|
23 |
30660-51
|
Relief Valve Assy UNF 3/8 MK III RNLN
|
24 |
336190311
|
O-ring, 10 x 944610206
|
25 |
346190053
|
Protective band, 10-pack (10 x 346100066)
|
Position | Item number | Description |
26 |
88193-52
|
Regulator cover 2-port 3/8 inch 90 degree
|
27 |
346190022
|
O-ring, 10 x 346900002
|
28 |
460190386
|
Piston
|
29 |
346190026
|
Spring, 5 x 346100005
|
30 |
346190024
|
O-ring, 10 x 346900004
|
31 |
31401-51
|
O-ring, 21.95x1.78, EPDM, 10 x 31401-01
|
32 |
460190198
|
O-ring & back-up ring, 10 pack (10 x 346900001 & 95471-01)
|
33 |
346190023
|
Valve seat set
|
34 |
460190388
|
Adjusting screw, 5 x 346100009
|
35 |
88114-51
|
Locking Clip, 10-pack
|
36 |
31189-51
|
O-ring, 10 x 31189-01
|
37 |
88162-51
|
Holder for anti freezing cap
|
38 |
460190507
|
Antifreezing cap, 6 x 336100425
|
39 |
460190763
|
Anti freezing cover with screw
|
40 |
30028-51
|
Anti Freezing unit MK III
|
41 |
88170-02
|
Plug-in pressure regulator 2 x 3/8" -24 UNF, 90 degree
|
42 |
88109-51
|
DR mode locking ring, 5 x 88109-01
|

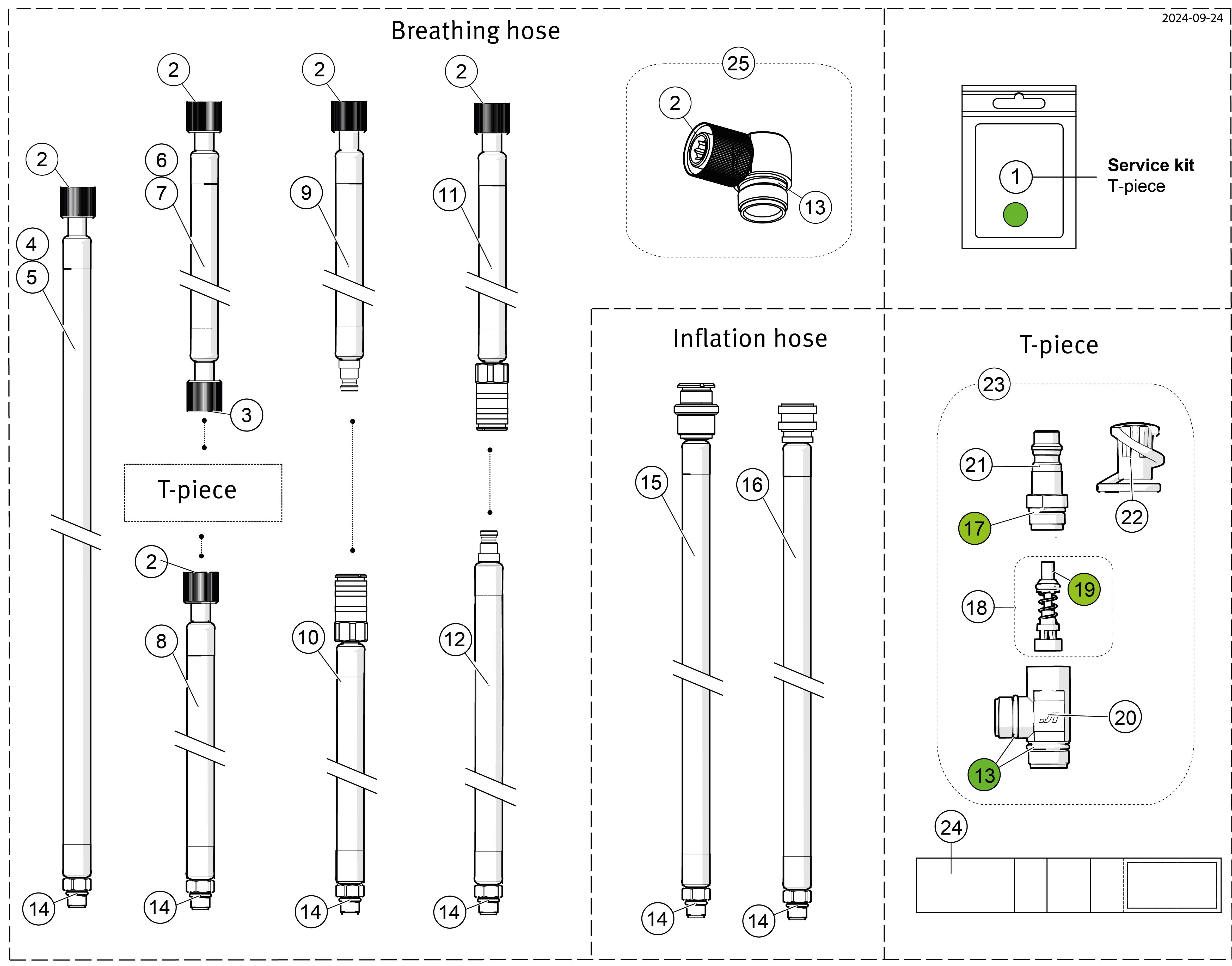

Position | Item number | Description |
1 |
460190414
|
Service kit Y-piece, QS II & Incurve and T-piece, Spiromatic 90U
|
2 |
336190237
|
O-ring, 10 x 336900099
|
3 |
336190236
|
O-ring, 10 x 944610205
|
4 |
99007-51
|
Breathing hose, 3/8 UNF, 1.70 M / 67 inch
|
5 |
99007-52
|
Breathing hose, 3/8 UNF, 1.13 M / 44 inch
|
6 |
460190560
|
Breathing hose, 0.75 M
|
7 |
336190287
|
Breathing hose 0,55 m
|
8 |
99007-53
|
Supply hose, 3/8 UNF, 1.0 M / 39 inch
|
9 |
88156-52
|
Breathing hose, small Euro male, 0.54 M
|
10 |
30645-51
|
Supply hose, small Euro female, 0.8 M
|
11 |
88197-51
|
Breathing hose, small Euro female
|
12 |
30644-51
|
Supply hose, small Euro male, 1.12 M
|
13 |
336190228
|
O-ring, 12.42x1.78, NBR, 10 x 336900007
|
14 |
336190311
|
O-ring, 10 x 944610206
|
15 |
460190529
|
O-ring, 10 x 336920009
|
16 |
97474-53
|
Dry suit inflation hose 0.75 M, CEJN 221-UNF 3/8, locked
|
17 |
30411-51
|
BC inflation hose UNF 3/8, 1.15 M / 45 inch
|
18 |
346190069
|
O-ring, 12.1x1.6, 10 x 944610210
|
19 |
346190223
|
Non-return valve
|
20 |
460190369
|
Cone with o-ring
|
21 |
460190264
|
T-manifold Replaces 346100028
|
22 |
96531-51
|
Quick coupling, Interspiro, male Replaces 460190485
|
23 |
31391-51
|
Dust cover, small, 10-pack
|
24 |
346190040
|
Extra air connection, Interspiro male
|
25 |
99099-51
|
Holder strap with hose loop
|
Position | Item number | Description |
26 |
88119-51
|
Connector, 90 degree
|
