Octopus breathing valve with holder
|
2024 November
|
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

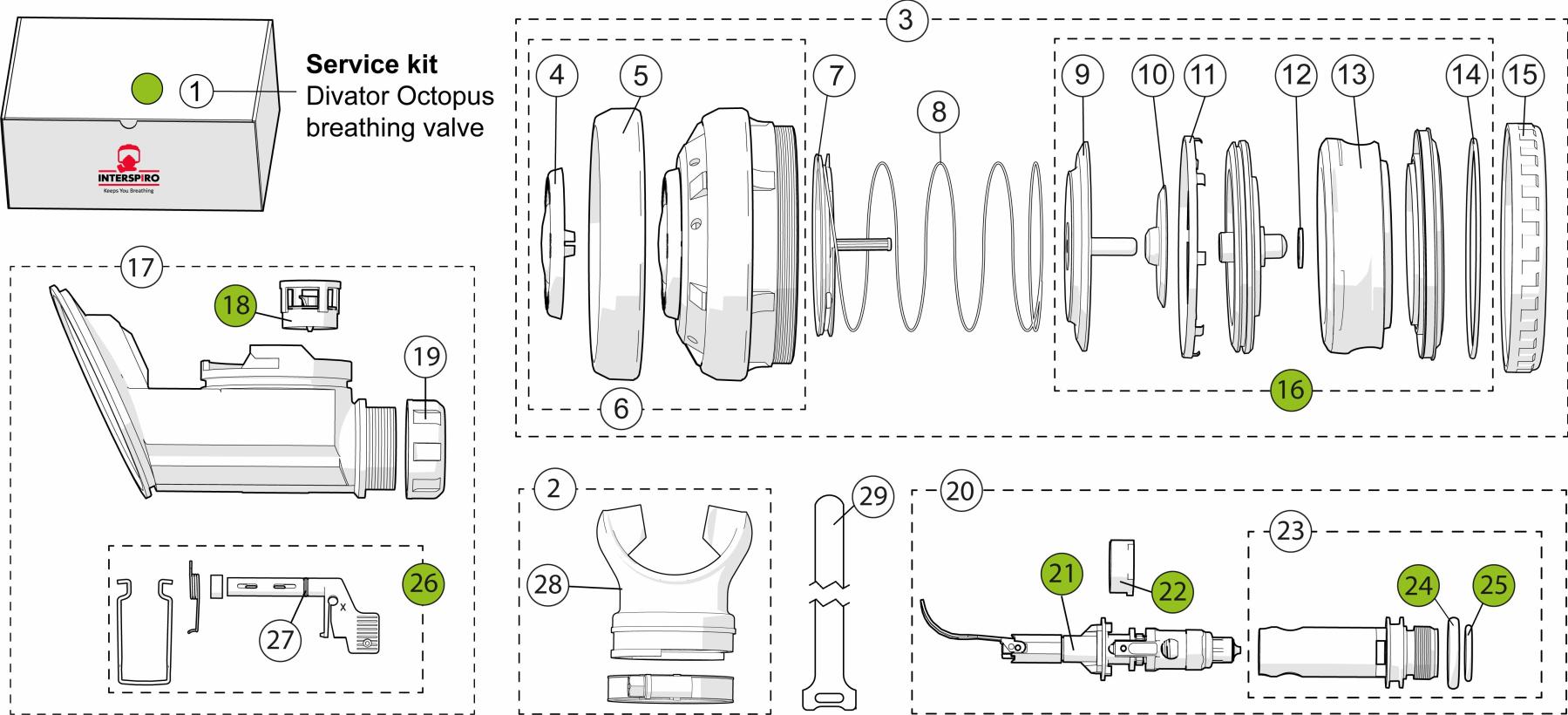

Position | Item number | Description |
1 |
460200510
|
Service kit for 1 Divator Octopus breathing valve with lever
|
2 |
336190353
|
Mouthpiece kit
|
3 |
336101155
|
Exhalation unit, without safety pressure, black
|
4 |
336190487
|
Purge button, 5 x 336100432
|
5 |
99485-51
|
Shield ring, yellow, 5-pack
|
6 |
460190518
|
Cover with purge button, black
|
7 |
460190721
|
Guide disc Divator, BV, NP
|
8 |
460190500
|
Sealing spring, without SP, 5 x 333100056
|
9 |
460190393
|
Sealing disc, 5-pack (5 x 336100005)
|
10 |
30005-51
|
Exhalation diaphragm 5-pack Natural rubber, black
|
11 |
460190413
|
Securing ring 10-pack (10 x 336100008)
|
12 |
336190638
|
Washer, 10 x 336100437
|
13 |
460190140
|
Diaphragm for breathing valve, (1 x 336100009)
|
14 |
336190224
|
O-ring, 5 x 336900009
|
15 |
460190515
|
Locking ring, black, 5 x 336101139
|
16 |
336190360
|
Diaphragm unit MK II
|
17 |
336101156
|
Valve housing assy MKll, black, without safty pressure
|
18 |
460190559
|
Non return valve assy
|
19 |
460190516
|
Locking nut, black, 5 x 336101140
|
20 |
460190558
|
Valve insert Divator w/o SP
|
21 |
97083-51
|
Valve insert subassy with normal pressure
|
22 |
346190198
|
Retaining ring 10-pack 10 x 336100777
|
23 |
96341-52
|
Connection nipple, green O-ring
|
24 |
336190227
|
O-ring, 10 x 331900064
|
25 |
99486-51
|
O-ring , green, 10 x 99486-01
|
Position | Item number | Description |
26 |
32408-51
|
Lever assembly with adjustment screw
|
27 |
336190225
|
O-ring, 10 x 336900001
|
28 |
460190505
|
Mouthpiece
|
29 |
30776-51
|
Velcro Strap Spare Part
|
