Spare part list
|
Divator Pro for cylinder pack
|
|
2024 December
|
READ BEFORE USE
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

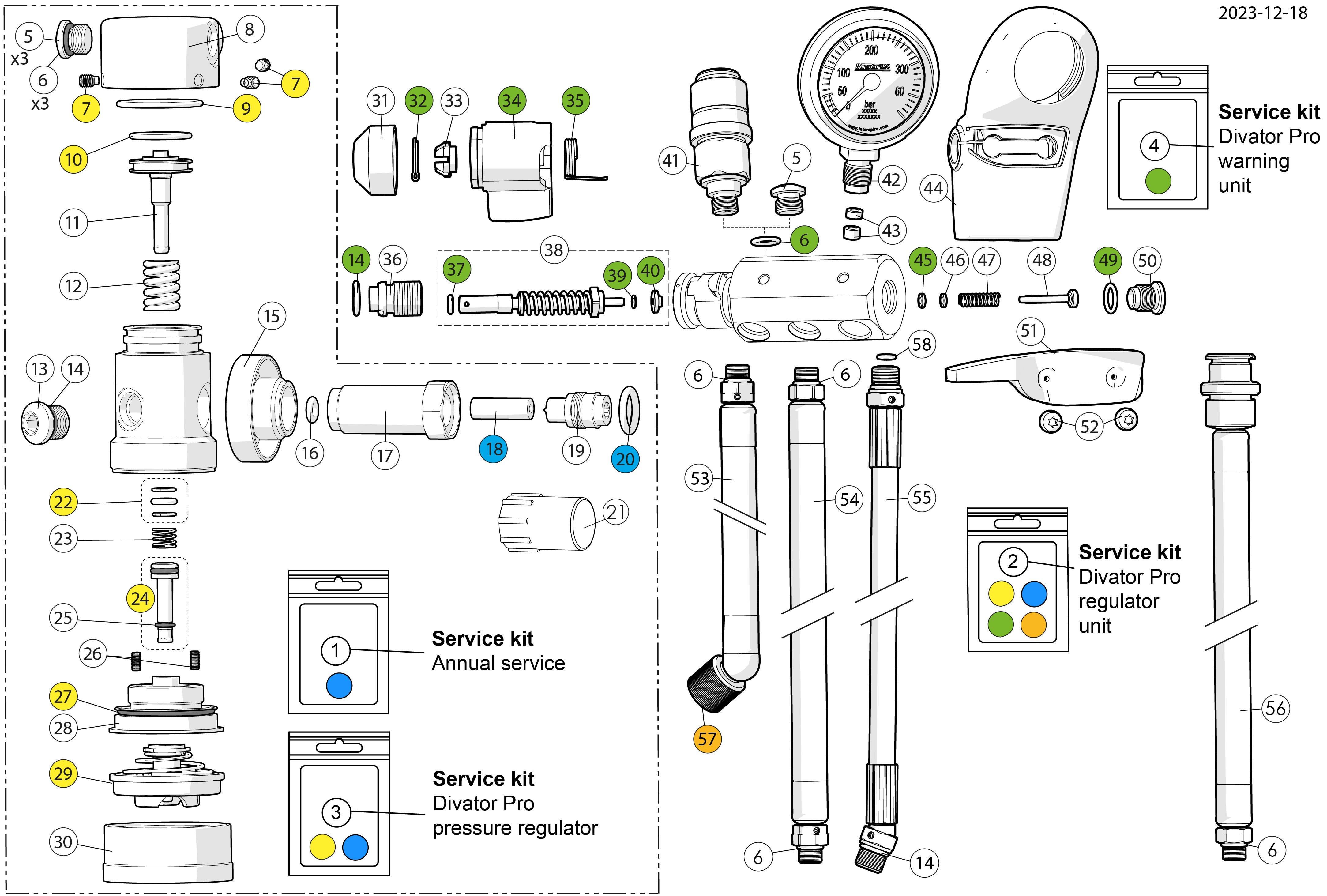

| Position | Item number | Description |
| 1 |
460190711
|
Service kit cylinder connection
|
| 2 |
57645-51
|
Service Kit Divator Pro regulator unit
|
| 3 |
57645-52
|
Service Kit Divator Pro pressure regulator
|
| 4 |
57561-51
|
Service Kit Divator Pro warning unit
|
| 5 |
88299-51
|
Blank plug
|
| 6 |
57543-51
|
O-ring, 1 x 336900390
|
| 7 |
89129-51
|
Screw
|
| 8 |
87524-51
|
Cover
|
| 9 |
336190229
|
O-ring, 10 x 336900041
|
| 10 |
346190022
|
O-ring, 10 x 346900002
|
| 11 |
460190386
|
Piston
|
| 12 |
346190026
|
Spring, 5 x 346100005
|
| 13 |
97192-51
|
Plug 7/16-20 EN250
|
| 14 |
336190381
|
O-ring, 10 x 336900106
|
| 15 |
87463-51
|
Hand wheel
|
| 16 |
336190232
|
O-ring, 10 x 336900044
|
| 17 |
88804-52
|
Connection nipple, short
|
| 18 |
346190643
|
Inlet filter, 10-pack (10 x 212100014)
|
| 19 |
460190382
|
Sealing nipple
|
| 20 |
336190272
|
O-ring, 10 x 331100767
|
| 21 |
460190557
|
Protection cap, hand wheel, 10 x 336900327
|
| 22 |
97698-52
|
Supporting washers & O-ring
|
| 23 |
346190028
|
Spring, 5 x 336100280
|
| 24 |
97698-51
|
Valve seat assembly
|
| 25 |
460190269
|
O-ring, 2.6 x 1.3, 10 x 346900015
|
| Position | Item number | Description |
| 26 |
99732-54
|
Stop screw
|
| 27 |
336190790
|
O-ring, 10 x 336900268
|
| 28 |
88288-51
|
Spring housing
|
| 29 |
88180-01
|
Safety pressure unit
|
| 30 |
88286-01
|
Diaphragm nut
|
| 31 |
460190421
|
Cap, 10 pack (10 x 336100604)
|
| 32 |
336190380
|
Split pin, 10-pack (10 x 336900104)
|
| 33 |
460190441
|
Nut, 5 pack (5 x 336100606)
|
| 34 |
87439-51
|
Handle, Divator Pro
|
| 35 |
460190430
|
Torsion spring, 5 pack (5 x 336100605)
|
| 36 |
460190428
|
Nipple, 5 pack (5 x 336100407)
|
| 37 |
336190382
|
O-ring, 10 x 336900103
|
| 38 |
336190404
|
Valve stem assy MKII
|
| 39 |
336190595
|
O-ring, 10 x 336900165
|
| 40 |
336190383
|
Valve disc, 5-pack (5 x 336100412)
|
| 41 |
31776-51
|
Underwater quick connector, female
|
| 42 |
99265-51
|
Pressure gauge, diving, bar
|
| 43 |
336190159
|
Gasket set, 1 x 335100368 & 1 x 335100369
|
| 44 |
87440-51
|
Cover
|
| 45 |
89134-51
|
Gasket
|
| 46 |
89141-51
|
Washer
|
| 47 |
89142-51
|
Spring
|
| 48 |
89132-54
|
Piston
|
| 49 |
336190311
|
O-ring, 10 x 944610206
|
| 50 |
87438-51
|
Blank plug
|
| Position | Item number | Description |
| 51 |
87450-51
|
Cover holder
|
| 52 |
57562-51
|
Screw
|
| 53 |
57575-105
|
Breathing hose, 1.05 M
|
| 54 |
57578-110
|
Medium pressure hose, 1.1 M
|
| 55 |
57577-110
|
High pressure hose
|
| 56 |
57576-100
|
Dry suit inflation hose 1 M
|
| 57 |
336190237
|
O-ring, 10 x 336900099
|
| 58 |
57672-52
|
O-ring, 10 x OR4,1X1,6-E70
|

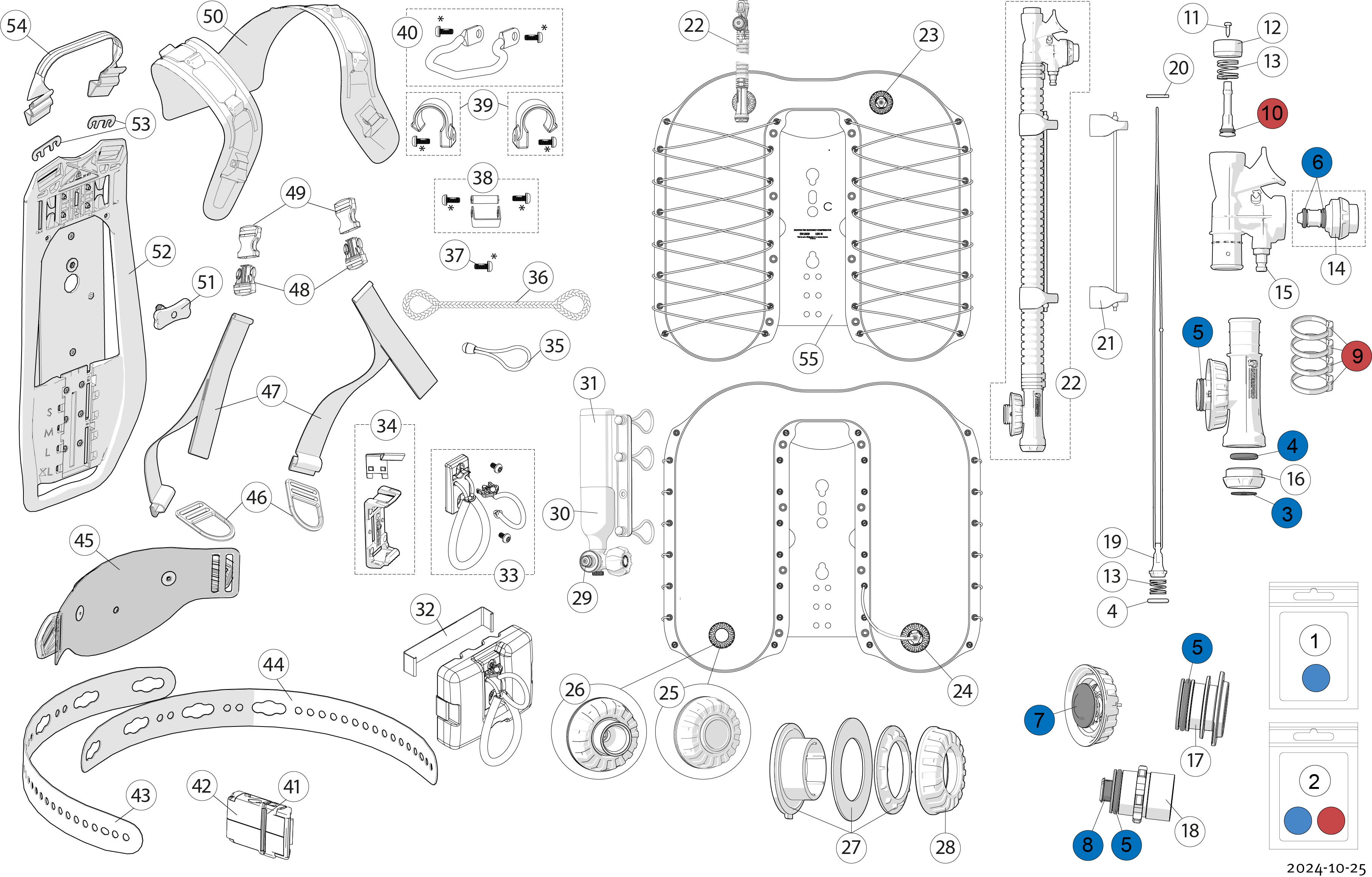

| Position | Item number | Description |
| 1 |
57678-52
|
Service kit, Divator Pro BC, routine maintenance
|
| 2 |
57678-55
|
Service kit, Divator Pro BC, full service
|
| 3 |
57680-51
|
Non return valve
|
| 4 |
57681-51
|
O-Ring, 15x4
|
| 5 |
57696-51
|
O-ring
|
| 6 |
57682-51
|
O-Ring 9,12x3,53
|
| 7 |
57683-51
|
Relief valve sealing
|
| 8 |
57684-51
|
Protective rubber
|
| 9 |
57654-52
|
Zip tie
|
| 10 |
57696-52
|
O-ring
|
| 11 |
57646-51
|
Screw, RTS ST2,9
|
| 12 |
57647-51
|
Button
|
| 13 |
57648-51
|
Compression spring
|
| 14 |
57649-51
|
Kit for komplete MP valve
|
| 15 |
88336-51
|
Quick connector Male
|
| 16 |
57644-51
|
Dump valve insert
|
| 17 |
57711-51
|
Plug with o ring
|
| 18 |
57712-51
|
BC emergency inflation assembly
|
| 19 |
57715-51
|
Dump valve axis with string
|
| 20 |
88263-54
|
Pin
|
| 21 |
57716-51
|
Hose clip with elastic string.
|
| 22 |
57679-52
|
Inflator unit Pro incl. Connection
|
| 23 |
87397-52
|
Pro Dump valve upper, complete set
|
| 24 |
87398-52
|
Pro Dump valve lower, complete set
|
| 25 |
57669-52
|
Pro Plug assembly
|
| Position | Item number | Description |
| 26 |
57548-52
|
Inflator cylinder connection Divator Pro
|
| 27 |
57713-51
|
BC connector
|
| 28 |
57609-51
|
BC connector lid
|
| 29 |
57709-51
|
O-ring 7,65x1,78
|
| 30 |
30146-01
|
Inflator cylinder, 0.35 L - in-line cylinder valve
|
| 31 |
57549-51
|
Holder for inflation cylinder
|
| 32 |
87515-51
|
Weight bracket
|
| 33 |
57665-51
|
Weight release kit
|
| 34 |
87096-51
|
Weight holder kit
|
| 35 |
99431-51
|
Elastic cord loop with knob, 5-pack
|
| 36 |
57664-51
|
Relief loop
|
| 37 |
99711-852
|
Screw, 10 x 99711-802
|
| 38 |
57663-51
|
Buckle holder kit
|
| 39 |
57662-51
|
Hose holder kit
|
| 40 |
57661-51
|
D-ring kit
|
| 41 |
88265-51
|
O-ring
|
| 42 |
87073-51
|
Waist buckle
|
| 43 |
87525-52
|
Waist belt, right
|
| 44 |
87525-51
|
Waist belt, left
|
| 45 |
57660-51
|
Waist belt holder plate
|
| 46 |
57666-51
|
Tri-glide D-ring
|
| 47 |
57659-51
|
Adjusting strap, shoulder
|
| 48 |
87308-55
|
Buckle, male, 2-pack
|
| 49 |
87308-53
|
Buckle, female, 2-pack
|
| 50 |
57656-51
|
Shoulder strap unit
|
| Position | Item number | Description |
| 51 |
57658-51
|
Rotary handle
|
| 52 |
57657-51
|
Backplate Divator Pro
|
| 53 |
33466-51
|
Backplate clip, 2 x 33466-01
|
| 54 |
57655-51
|
Handle
|
| 55 |
57718-51
|
Pro bladder, without valve/connectors
|
