Spare part list
|
Divator DP1 Panel
|
|
2024 December
|
READ BEFORE USE
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

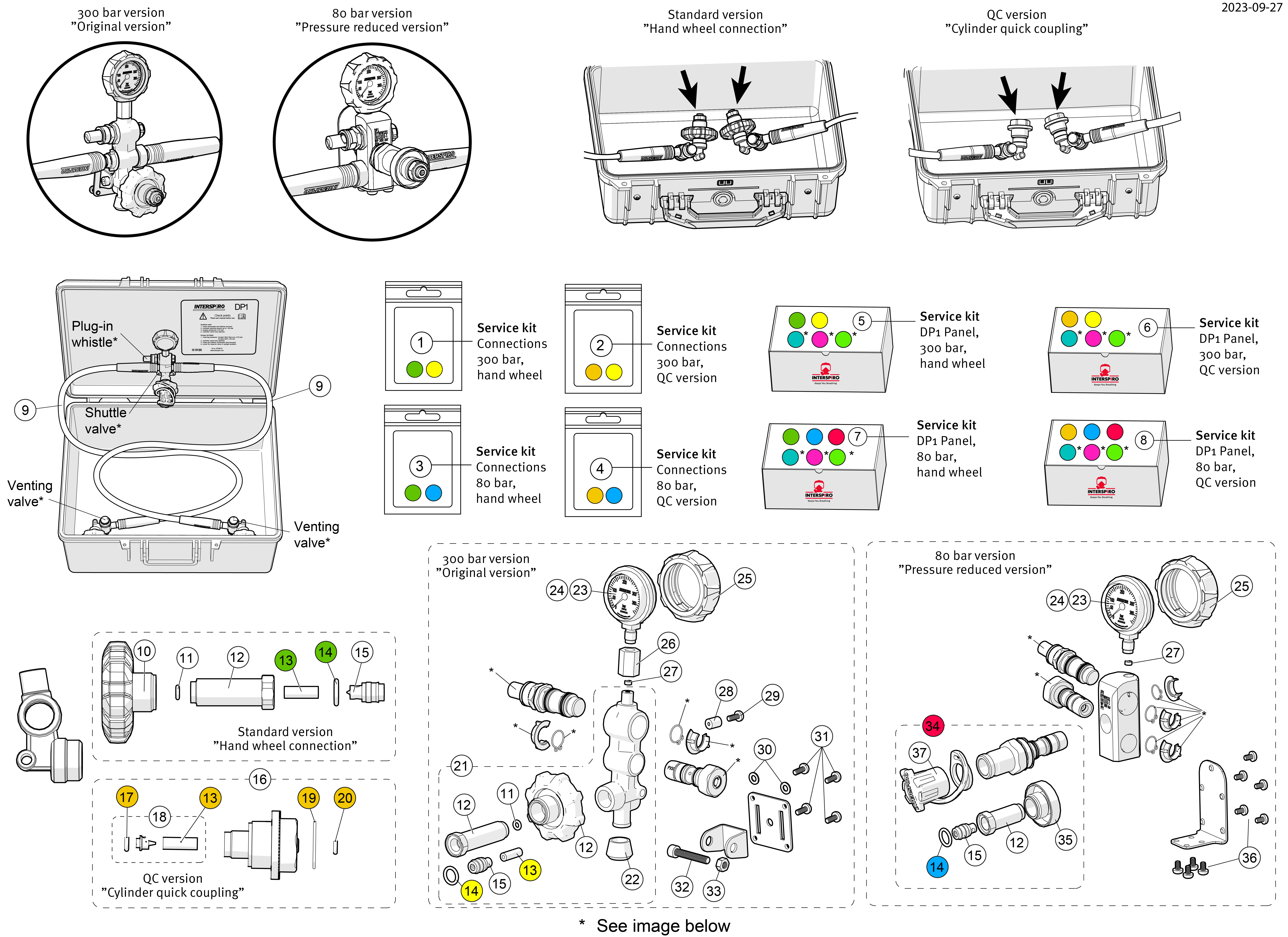

| Position | Item number | Description |
| 1 |
460190701
|
Service kit DP1 connections, 300 bar, hand wheel version
|
| 2 |
57695-53
|
Service kit DP1 connections, 300 bar, QC version
|
| 3 |
57695-51
|
Service kit DP1 connections, 80 bar, hand wheel version
|
| 4 |
57695-52
|
Service kit DP1 connections, 80 bar, QC version
|
| 5 |
460190702
|
Service kit Divator DP1 panel, 300 bar, hand wheel version
|
| 6 |
57447-51
|
Service kit DP1 300 bar QC:
|
| 7 |
57448-51
|
Service kitt DP1 80 bar:
|
| 8 |
57448-52
|
Service kit DP1 80 bar QC
|
| 9 |
96116-51
|
Supply hose DP1, 300 bar, 1 M
|
| 10 |
98520-51
|
Hand wheel
|
| 11 |
336190232
|
O-ring, 10 x 336900044
|
| 12 |
460190383
|
Connection nipple
|
| 13 |
346190643
|
Inlet filter, 10-pack (10 x 212100014)
|
| 14 |
336190272
|
O-ring, 10 x 331100767
|
| 15 |
460190382
|
Sealing nipple
|
| 16 |
30569-51
|
Regulator part, cylinder quick coupling
|
| 17 |
336890105
|
O-ring, 10 x 336900183
|
| 18 |
460190059
|
Filter & holder & O-ring kit, 10-pack
|
| 19 |
460200114
|
O-ring, 10 x OR22,0X1,0-Q60
|
| 20 |
336190437
|
O-ring, 10 x 336900182
|
| 21 |
346190329
|
Manifold block
|
| 22 |
346190230
|
Cylinder support 5-pack 5 x 336100081
|
| 23 |
99265-51
|
Pressure gauge, diving, bar
|
| 24 |
99265-52
|
Pressure gauge, diving, psi
|
| 25 |
99266-52
|
Pressure gauge cover
|
| Position | Item number | Description |
| 26 |
336100832
|
Sleeve
|
| 27 |
336190159
|
Gasket set, 1 x 335100368 & 1 x 335100369
|
| 28 |
99226-51
|
Sleeve 10 pack
|
| 29 |
96723-52
|
Screw, M5x25, 10 x 96723-02
|
| 30 |
336190261
|
Washer, 10 x 944482146
|
| 31 |
96723-51
|
Screw, M5x12, 10 x 96723-01
|
| 32 |
336190243
|
Screw, 10 x 99730-01
|
| 33 |
336190244
|
Nut 10-pack 10 x 941680316
|
| 34 |
32581-53
|
Valve block, DP1, 80 bar
|
| 35 |
87463-51
|
Hand wheel
|
| 36 |
99713-51
|
Screw
|
| 37 |
31392-51
|
Dust cover, large, 10-pack
|

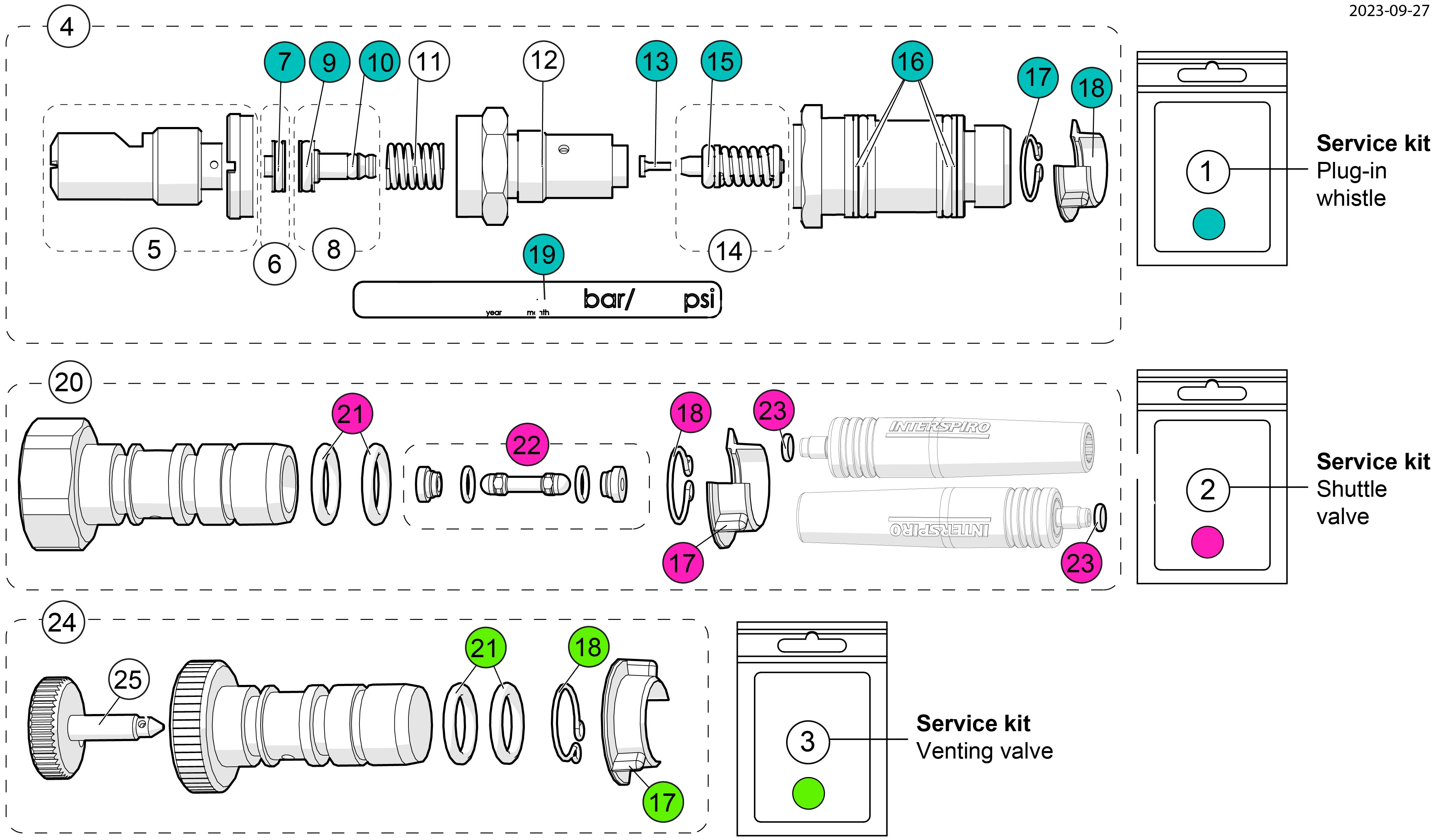

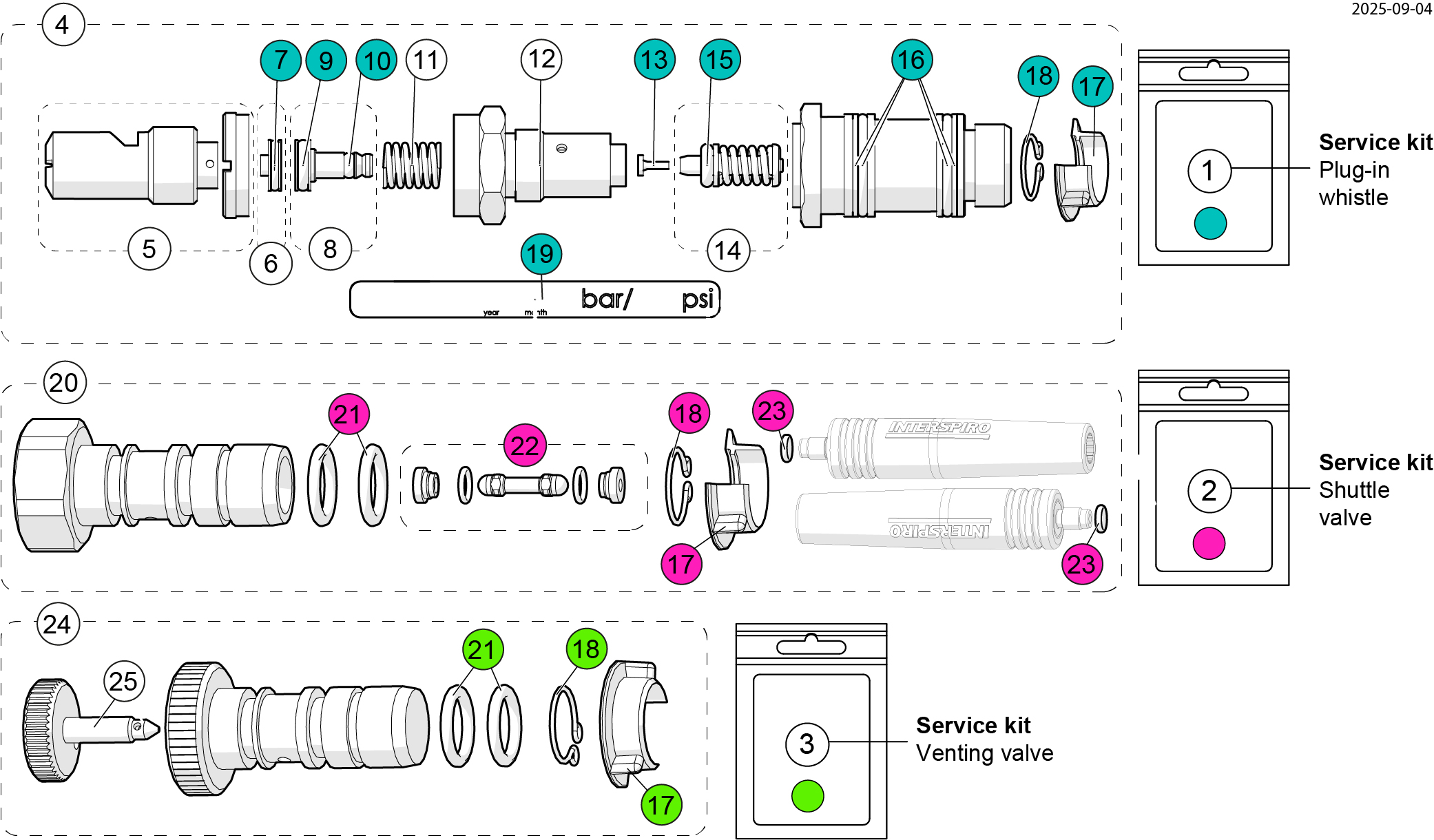

| Position | Item number | Description |
| 1 |
460190323
|
Service kit Plug-in whistle
|
| 2 |
460190712
|
Service kit Shuttle valve
|
| 3 |
460190713
|
Service kit Venting valve
|
| 4 |
460190143
|
Whistle insert 55 bar - Replaces 346190404
|
| 5 |
346190221
|
Whistle assy
|
| 6 |
346190220
|
Nozzle with o-ring
|
| 7 |
346190251
|
O-ring, 7.5 x 1.3, 10 x 346900016
|
| 8 |
346190219
|
Regulating piston assy
|
| 9 |
346190249
|
O-ring, 7.1 x 1.6, 10 x 346900014
|
| 10 |
460190269
|
O-ring, 2.6 x 1.3, 10 x 346900015
|
| 11 |
346190218
|
Spring, 5 x 346100082
|
| 12 |
346190248
|
Whistle cylinder
|
| 13 |
346190217
|
Sealing cone 10-pack 10 x 346100081
|
| 14 |
346190216
|
Piston assy
|
| 15 |
336190240
|
O-ring, 5 x 331100562
|
| 16 |
460190200
|
O-ring & back-up rings, 10-pack (10 x 346900017 & 95473-01)
|
| 17 |
460190299
|
Retaining ring, 10 x 346100208
|
| 18 |
346190293
|
Locking clip, 10-pack (10 x 346100158)
|
| 19 |
346190296
|
Sealing label, 20-pack (20 x 97081-01)
|
| 20 |
460190709
|
Shuttle Insert
|
| 21 |
336190220
|
O-ring, 11.3x2.4, NBR, 10 x 944610309
|
| 22 |
460190750
|
Shuttle kit DP1
|
| 23 |
336190312
|
O-ring, 10 x 336900105
|
| 24 |
460190916
|
Venting valve, 300 bar
|
| 25 |
460190751
|
Venting screw
|
