Spare part list










Divator Pro P+ Supply hose



2024 November

READ BEFORE USE


1. Only holders of a valid Interspiro Service Certificate may carry out
    service and repairs on Interspiro breathing equipment. Unauthorized
    service may result in malfunction and users relying thereon could
    sustain severe respiratory injury or death.


2. When using the spare part list always refer to the equipment's Service
    manual in regard to procedures and handling of the spare parts
    assembly and function.


3. Changes to this document – necessitated by typographical errors,
    inaccuracies of current information or improvements and changes of
    equipment – may be done at any time and without prior notice. Always
    refer to the Interspiro webpage for the latest version.


4. The description defines if the spare part is a multi-pack,
    e. g. "10 x 336100437" indicates that this is a multi-pack
    that consists of 10 pieces of the single component 336100437.
    The single component part number 336100437 can not be ordered,
    it is only used to label parts included in service kits.


5. The service kits contain replacement items used for preventive
    maintenance.


6.  Always refer to the Interspiro webpage for product and document
     updates and important notices.

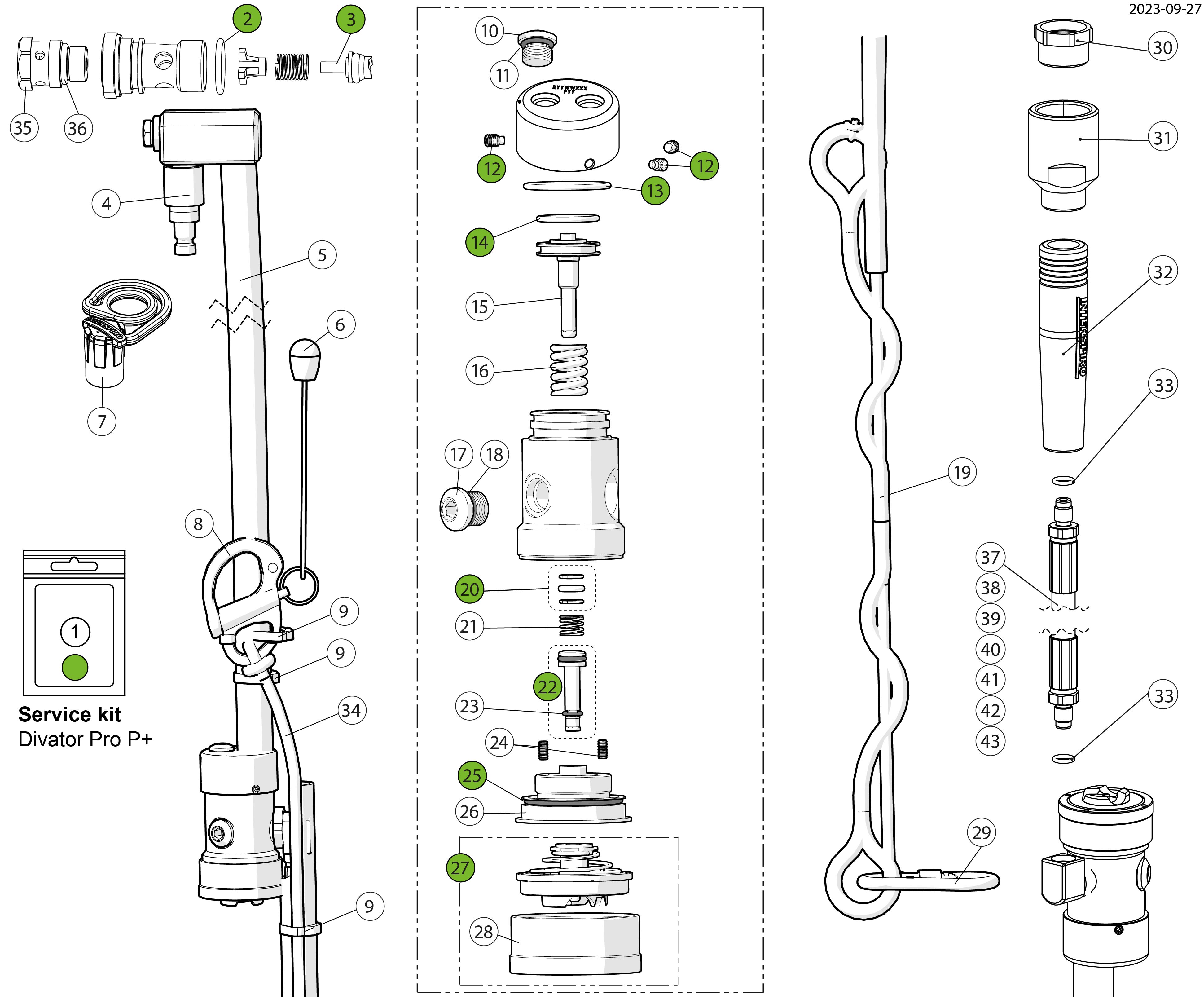

Spare Parts Divator Pro P plus






Spare Parts Divator Pro P plus
Position Item number Description
1
57699-51
Service kit Divator Pro P+
2
346190069
O-ring, 12.1x1.6, 10 x 944610210
3
460190368
Cone with o-ring
4
57698-51
Quick coupling
5
57697-51
Hose with bend restrictor
6
57446-51
String loop with knob
7
31391-51
Dust cover, small, 10-pack
8
57445-01
Snap shackle
9
57689-51
Cable tie
10
88299-51
Blank plug
11
57543-51
O-ring, 1 x 336900390
12
89129-51
Screw
13
336190229
O-ring, 10 x 336900041
14
346190022
O-ring, 10 x 346900002
15
460190386
Piston
16
88492-952
Spring P+
17
97192-51
Plug 7/16-20 EN250
18
336190381
O-ring, 10 x 336900106
19
96726-51
Relieving Loop Kit for two hose ends
20
97698-52
Supporting washers & O-ring
21
346190028
Spring, 5 x 336100280
22
97698-51
Valve seat assembly
23
346190250
O-ring 10-pack Replaced by 460190269
24
99732-54
Stop screw
25
336190790
O-ring, 10 x 336900268

Spare Parts Divator Pro P plus
Position Item number Description
26
88288-51
Spring housing
27
88180-01
Safety pressure unit
28
88286-01
Diaphragm nut
29
336921843
Carabiner hook, stainless steel
30
97039-51
Protective Plug, DP1 hose 10-p
31
96721-51
Connection R5/8,DP1
32
88232-51
Bend protection tube
33
336190312
O-ring, 10 x 336900105
34
57444-51
Relief rope
35
88297-51
Releif valve
36
336190311
O-ring, 10 x 944610206
37
99086-06
Supply Hose/Lifeline, 300 bar w Relieving Loop 0.5m/11 M
38
99086-04
Supply Hose/Lifeline, 300 bar w Relieving Loop 0.5m/31 M
39
99086-02
Supply Hose/Lifeline, 300 bar w Relieving Loop 0.5m/61 M
40
99086-03
Supply Hose/Lifeline, 300 bar w Relieving Loop 0.5m/71 M
41
99086-08
Supply Hose/Lifeline, 300 bar w Relieving Loop 0.5m/80 M
42
99086-07
Supply Hose/Lifeline, 300 bar w Relieving Loop 0.5m/91 M
43
99086-05
Supply Hose/Lifeline, 300 bar w Relieving Loop 0.5m/121 M
