Spare part list










Spirocom Wired



2024 December

READ BEFORE USE


1. Only holders of a valid Interspiro Service Certificate may carry out
    service and repairs on Interspiro breathing equipment. Unauthorized
    service may result in malfunction and users relying thereon could
    sustain severe respiratory injury or death.


2. When using the spare part list always refer to the equipment's Service
    manual in regard to procedures and handling of the spare parts
    assembly and function.


3. Changes to this document – necessitated by typographical errors,
    inaccuracies of current information or improvements and changes of
    equipment – may be done at any time and without prior notice. Always
    refer to the Interspiro webpage for the latest version.


4. The description defines if the spare part is a multi-pack,
    e. g. "10 x 336100437" indicates that this is a multi-pack
    that consists of 10 pieces of the single component 336100437.
    The single component part number 336100437 can not be ordered,
    it is only used to label parts included in service kits.


5. The service kits contain replacement items used for preventive
    maintenance.


6.  Always refer to the Interspiro webpage for product and document
     updates and important notices.

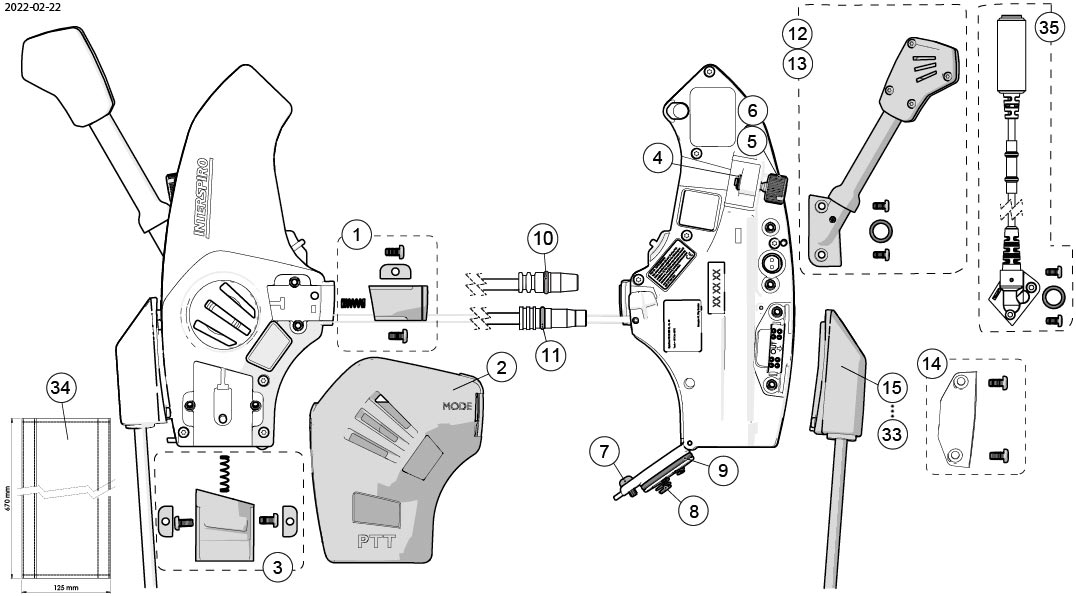

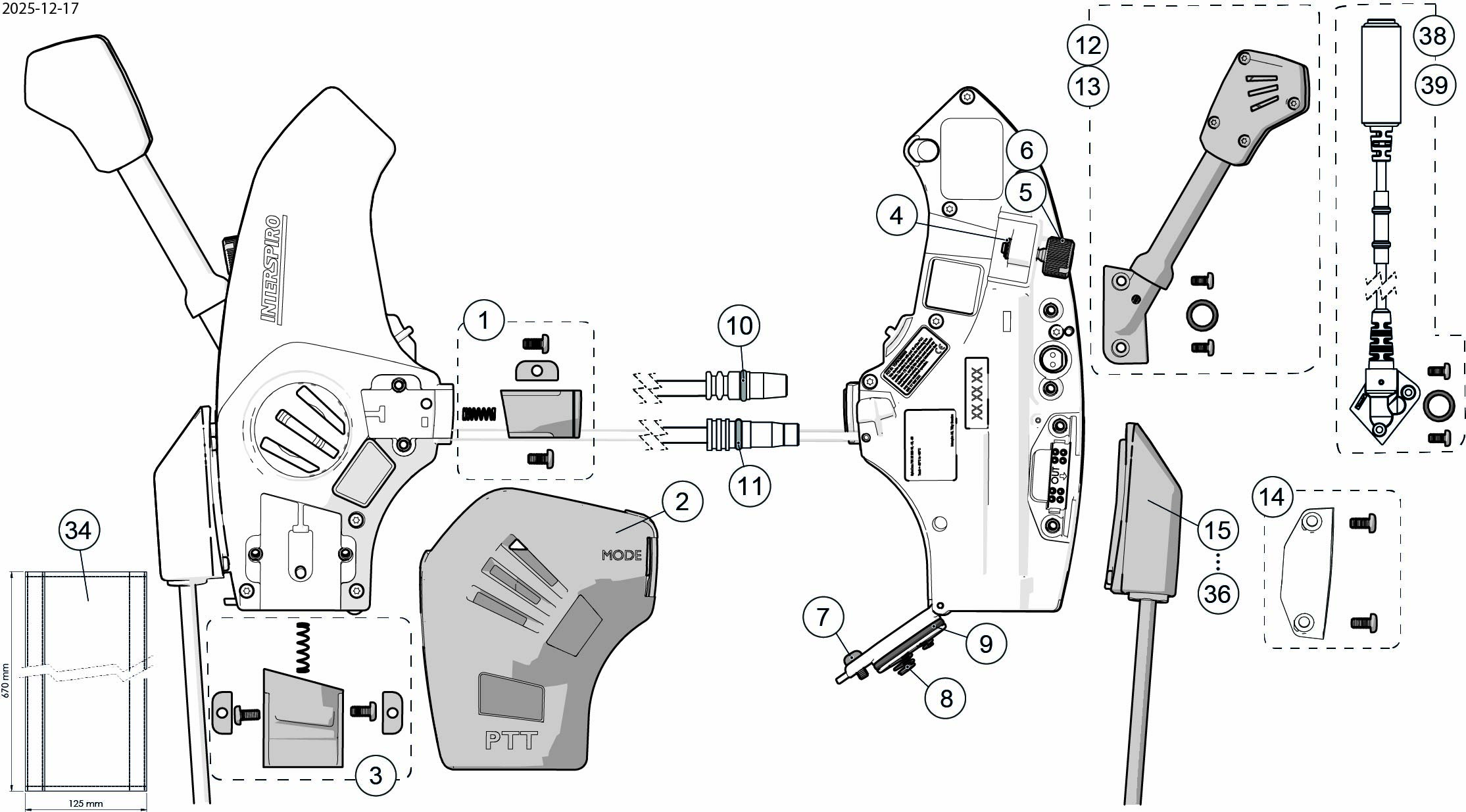

Spare Parts Spirocom Wired






Spare Parts Spirocom Wired
Position Item number Description
1
460200051
Spirocom mode button kit
2
30678-52
Spirocom Wired rubber cover
3
460200052
Spirocom PTT button kit
4
30785-51
Spirocom spring clip, 10 pack
5
460200047
Spirocom screw with clip
6
460200186
Hand screw for Spirocom, modified version to mount older Spirocoms on new QC attachment
7
460200053
Screw with washer
8
30737-51
Battery Spring
9
30860-51
Spirocom o-ring, 10-pack (10 x 30860-01)
10
460200128
Spirocom Mic, o-ring, black, 10 pack (OR6,07x1,78-E60)
11
460200175
O-Ring, 10xOR6,07X1,78-U70
12
460200048
Spirocom ear speaker kit
13
460200157
Spirocom ear speaker, short
14
460200138
Spirocom button lid, 10-pack
15
32920-5100
Cable connector, Spirocom Wired, Nexus straight
16
32920-5300
Cable connector, Spirocom Wired, Sepura STP8000/9000
17
32920-5304
Cable connector, Spirocom Wired, Sepura STP8000/9000, 12-pol
18
32920-5400
Cable connector, Spirocom Wired, Motorola MTP850S, straight
19
32920-5401
Cable connector, Spirocom Wired, Motorola MTP850S, coiled
20
32920-5800
Cable connector, Spirocom Wired, Motorola GP340, 2-Pin, straight
21
32920-5801
Cable connector, Spirocom Wired, Motorola GP340, 2-Pin, coiled
22
32920-6000
Cable connector, Spirocom Wired, Motorola GP340EX/850EX, straight
23
32920-6001
Cable connector, Spirocom Wired, Motorola, GP340, coiled
24
32920-6100
Cable connector, Spirocom Wired, ICom F61, straight
25
32920-6200
Cable connector, Spirocom Wired, Motorola MTP 3250/3550

Spare Parts Spirocom Wired
Position Item number Description
26
32920-6201
Cable connector, Spirocom Wired, Motorola MTP 3250/3550
27
32920-6300
Cable connector, Spirocom Wired, ICom F2000, straight
28
32920-6303
Cable connector, Spirocom Wired, ICOM F2000, straight, 6-pol Hirose
29
32920-6500
Cable connector, Spirocom Wired, Motorola DP2400/3441, straight
30
32920-6501
Cable connector, Spirocom Wired, Motorola DP2400/3411, coiled
31
32920-6504
Cable connector, Spirocom Wired, Motorola DP2400/3441
32
32920-6900
Cable connector, Spirocom Wired, Motorola DP4401EX
33
32920-6700
Cable connector, Spirocom Wired, Kenwood TK-2170/3160, straight
34
33769-51
Spirocom cable protector, 570 mm
35
010438-51
Connector cable Spirocom - Ear protection
