Spare part list










Composite pack, 2 x 7.2L



2024 December

READ BEFORE USE


1. Only holders of a valid Interspiro Service Certificate may carry out
    service and repairs on Interspiro breathing equipment. Unauthorized
    service may result in malfunction and users relying thereon could
    sustain severe respiratory injury or death.


2. When using the spare part list always refer to the equipment's Service
    manual in regard to procedures and handling of the spare parts
    assembly and function.


3. Changes to this document – necessitated by typographical errors,
    inaccuracies of current information or improvements and changes of
    equipment – may be done at any time and without prior notice. Always
    refer to the Interspiro webpage for the latest version.


4. The description defines if the spare part is a multi-pack,
    e. g. "10 x 336100437" indicates that this is a multi-pack
    that consists of 10 pieces of the single component 336100437.
    The single component part number 336100437 can not be ordered,
    it is only used to label parts included in service kits.


5. The service kits contain replacement items used for preventive
    maintenance.


6.  Always refer to the Interspiro webpage for product and document
     updates and important notices.

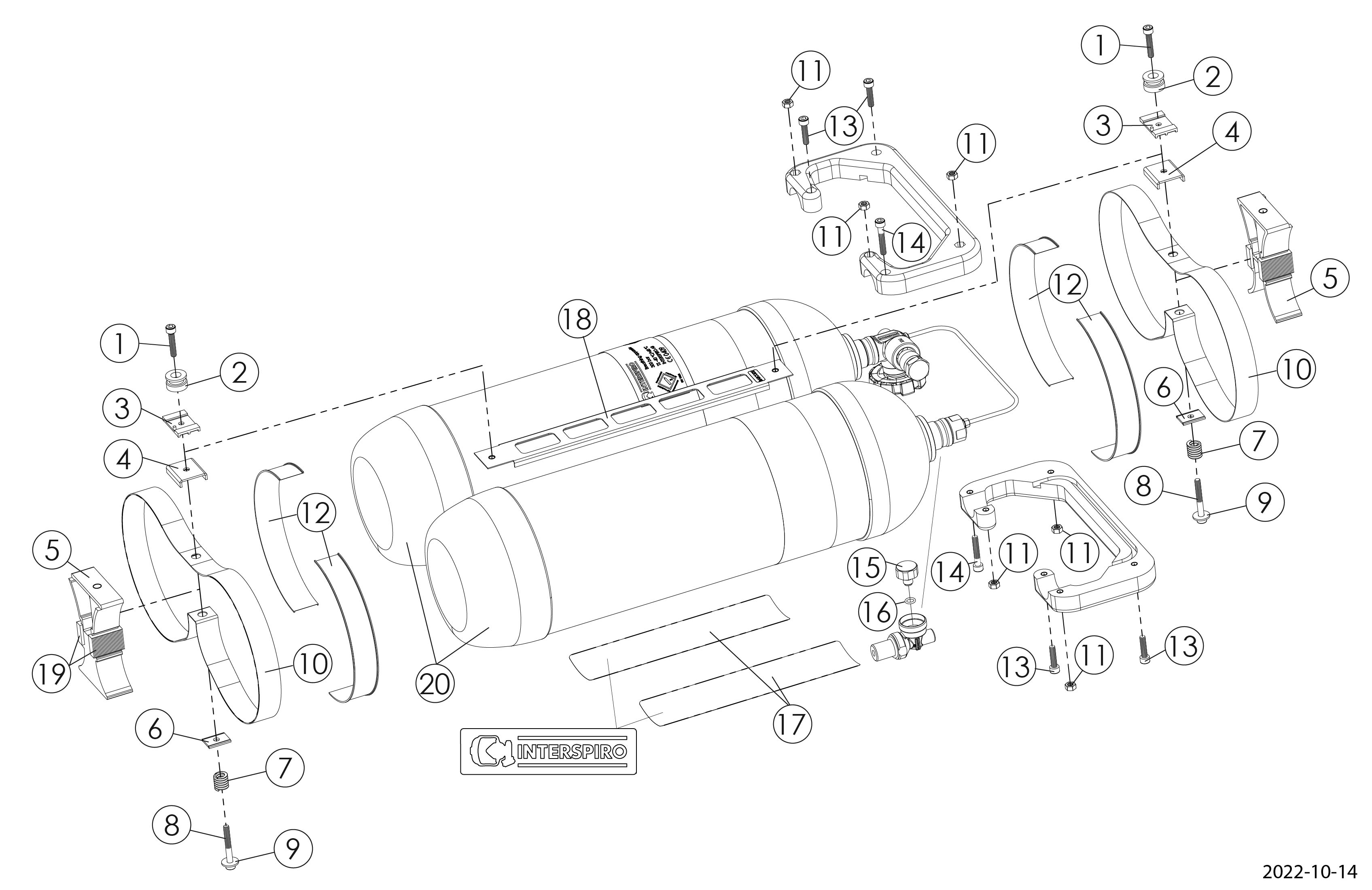

Spare Parts Cylinder pack 2 x 7.2L






Spare Parts Cylinder pack 2 x 7.2L
Position Item number Description
1
336190242
Screw, 10 x 99730-02 (941104374)
2
460190472
Guide washer, 2 x 336100072
3
460190247
Spacer
4
460190468
Retaining plate, 10 x 336100071
5
460190475
Spacer 6.7 & 7.2 L, 2 x 356100038
6
460190624
Washer, 10 x 356100008
7
460190623
Tension spring 6.7 & 7.2 L, 10 x 356100043
8
460190625
Screw, 10 x 356900003
9
460190621
Washer, 10 x 356900002
10
460190466
Clamping strap 6.7 & 7.2 L
11
336190244
Nut 10-pack 10 x 941680316
12
460190219
Protective ring, 10 x 336100068
13
336190241
Screw, 10 x 99730-10
14
336190243
Screw, 10 x 99730-01
15
97862-51
Pressure indicator, 300 bar
16
336190634
O-ring, 10 x 331900090
17
460190230
Interspiro label, 10 x 95849-01
18
460190620
Spacing rod
19
460190467
Anti slide protection, 4 x 356100011
20
A03205
Cylinder boot 6.8L & 7.2 L
21
A02995
Glue cartridge for CTcylinder boot

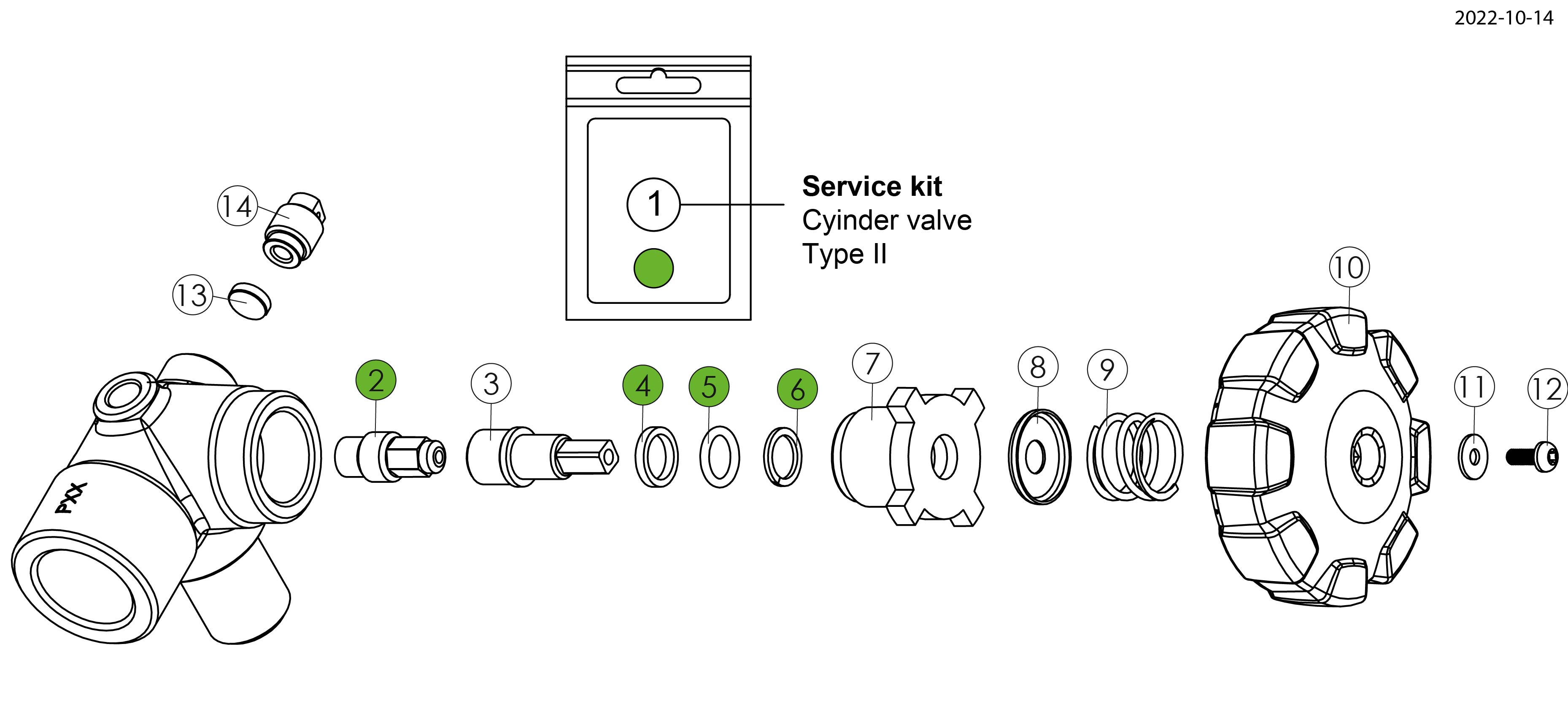

Spare Parts Cylinder valve for cylinder pack






Spare Parts Cylinder valve for cylinder pack
Position Item number Description
1
460190686
Service kit cylinder valve, Type II
2
97850-51
Valve slug
3
97849-51
Valve stem
4
97853-51
Glide washer, 10-pack
5
336190381
O-ring, 10 x 336900106
6
97847-51
Back-up ring, 10 x 97847-01
7
97852-51
Gland nut
8
336922104
Washer, 10-pack (10 x 336100057)
9
336922105
Spring, 10-pack (10 x 336100058)
10
95719-51
Hand wheel assy, black Replaces 460190243
11
336190296
Washer, 10 x 336900093
12
336190297
Screw, 10 x 336900094
13
97740-51
Burst disc
14
97399-51
Burst disc plug
