Spare part list










Cylinder valve In-line K44



2026 February

READ BEFORE USE


1. Only holders of a valid Interspiro Service Certificate may carry out
    service and repairs on Interspiro breathing equipment. Unauthorized
    service may result in malfunction and users relying thereon could
    sustain severe respiratory injury or death.


2. When using the spare part list always refer to the equipment's Service
    manual in regard to procedures and handling of the spare parts
    assembly and function.


3. Changes to this document – necessitated by typographical errors,
    inaccuracies of current information or improvements and changes of
    equipment – may be done at any time and without prior notice. Always
    refer to the Interspiro webpage for the latest version.


4. The description defines if the spare part is a multi-pack,
    e. g. "10 x 336100437" indicates that this is a multi-pack
    that consists of 10 pieces of the single component 336100437.
    The single component part number 336100437 can not be ordered,
    it is only used to label parts included in service kits.


5. The service kits contain replacement items used for preventive
    maintenance.


6.  Always refer to the Interspiro webpage for product and document
     updates and important notices.

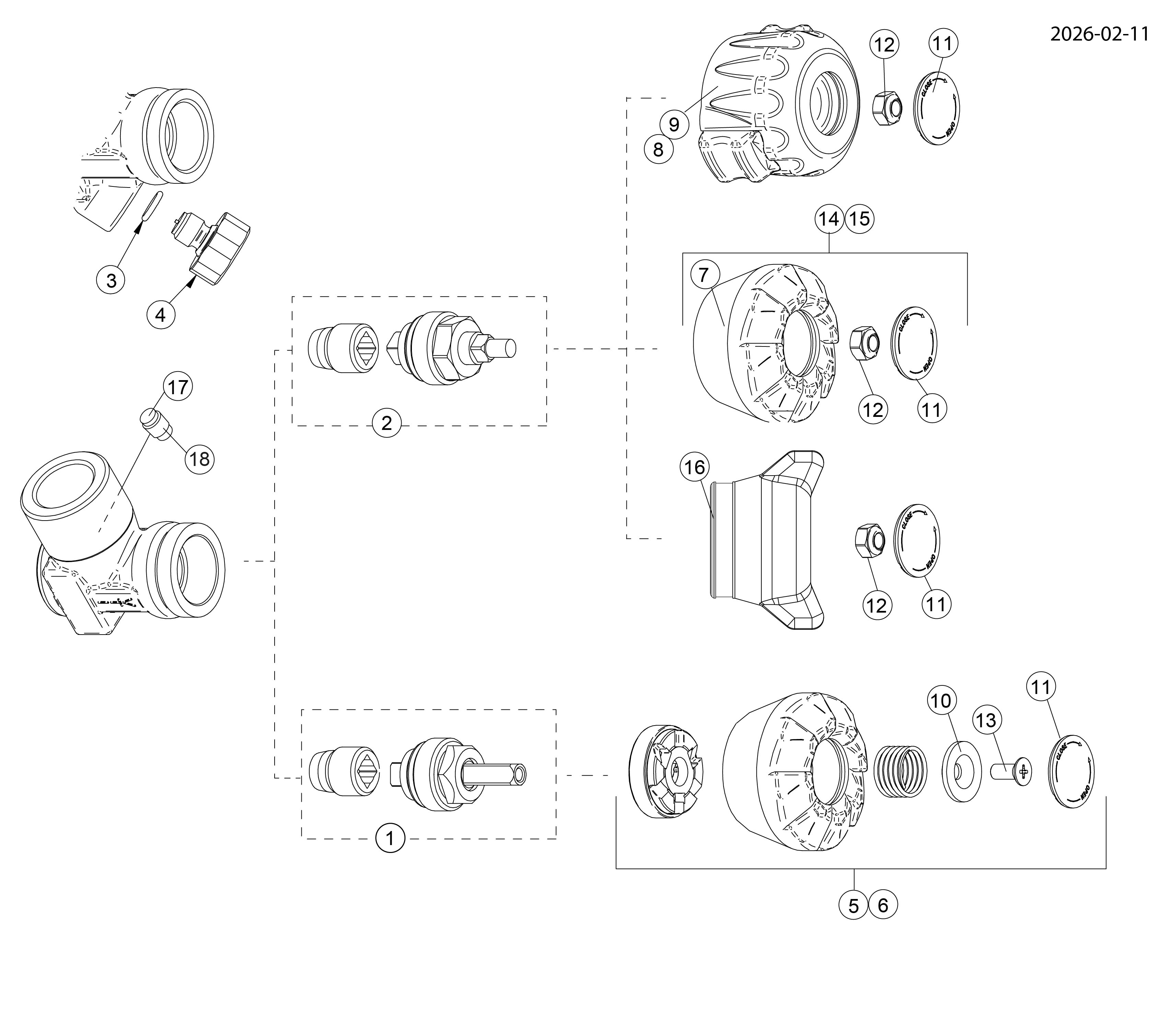

Spare Parts In-line Cylinder valve K44






Spare Parts In-line Cylinder valve K44
Position Item number Description
1
0172.11.149-S1
Hand wheel, no ratchet, black
2
0440.14.0-S3
Service kit for K44 valve with ratchet
3
0440.24.0-S6
Sealing system for K44 standard handwheel
4
336190634
O-ring, 10 x 331900090
5
97862-51
Pressure indicator, 300 bar
6
0172.11.181.0-S10
Ratchet Handwheel set, blue for K44, K623-3
7
0172.11.181.0-S9
Ratchet Handwheel kit, short black
8
35751-51
VTI Spare part. Countersunk screw, M5x12.
9
97399-51
Burst disc plug
10
97740-51
Burst disc - Nickel cap
11
0172.11.149-S1
Hand wheel, no ratchet, black
12
0172.11.202-S15
Handwheel, black with push buttons
13
0172.11.202-S25
Handwheel, red with push buttons
14
0172.6.163
VTI spring cup for ratchet handwheel
15
0172.6.208
Cover
16
336890101
Nut 5-pack Replaces 331900334
17
0172.11.149-S5
Handwheel kit, no ratchet, blue
18
0172.11.175-S5
Handwheel, double winged, blue
