Spare part list










Cylinder valve Type I



2024 December

READ BEFORE USE


1. Only holders of a valid Interspiro Service Certificate may carry out
    service and repairs on Interspiro breathing equipment. Unauthorized
    service may result in malfunction and users relying thereon could
    sustain severe respiratory injury or death.


2. When using the spare part list always refer to the equipment's Service
    manual in regard to procedures and handling of the spare parts
    assembly and function.


3. Changes to this document – necessitated by typographical errors,
    inaccuracies of current information or improvements and changes of
    equipment – may be done at any time and without prior notice. Always
    refer to the Interspiro webpage for the latest version.


4. The description defines if the spare part is a multi-pack,
    e. g. "10 x 336100437" indicates that this is a multi-pack
    that consists of 10 pieces of the single component 336100437.
    The single component part number 336100437 can not be ordered,
    it is only used to label parts included in service kits.


5. The service kits contain replacement items used for preventive
    maintenance.


6.  Always refer to the Interspiro webpage for product and document
     updates and important notices.

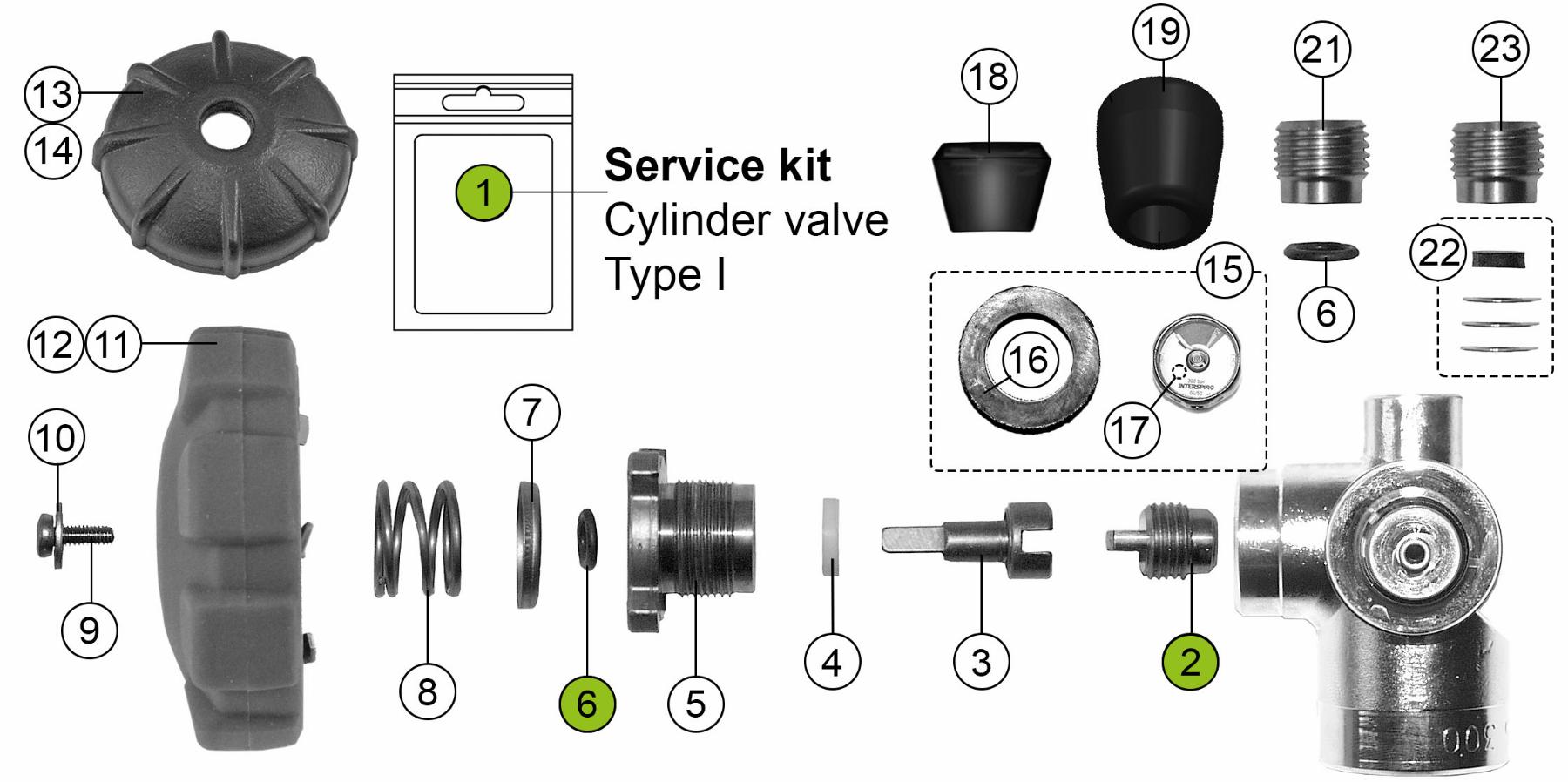

Spare Parts Cylinder valve Type I






Spare Parts Cylinder valve Type I
Position Item number Description
1
460190390
Service kit cylinder valve, Type I
2
336922108
Valve slug, 5-pack (5 x 336190032)
3
460190355
Valve stem 1 pc 336100054
4
336190260
Gland seal, 10-pack (10 x 336100053)
5
460190356
Gland nut Replaces 336100052
6
336190221
O-ring, 10 x 944610204
7
336922104
Washer, 10-pack (10 x 336100057)
8
336922105
Spring, 10-pack (10 x 336100058)
9
336190297
Screw, 10 x 336900094
10
336190296
Washer, 10 x 336900093
11
95719-51
Hand wheel assy, black Replaces 460190243
12
95719-52
Hand wheel assy, blue
13
460190359
Hand wheel cover, black, 5 x 336 100 061 For version with separate cover
14
97763-51
Hand wheel cover, blue
15
97842-51
Pressure indicator 300 bar
16
98618-51
Rubber cover 5-pack
17
95317-51
O-ring, 10-pack (10 x 95317-01)
18
346190230
Cylinder support 5-pack 5 x 336100081
19
460190685
Cylinder support
20
460190358
Blank plug Replaces 336100065
21
460190225
Burst disc kit
22
460190357
Burst disc plug 300 bar
