Spare part list
|
Respire
|
|
2024 November
|
READ BEFORE USE
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

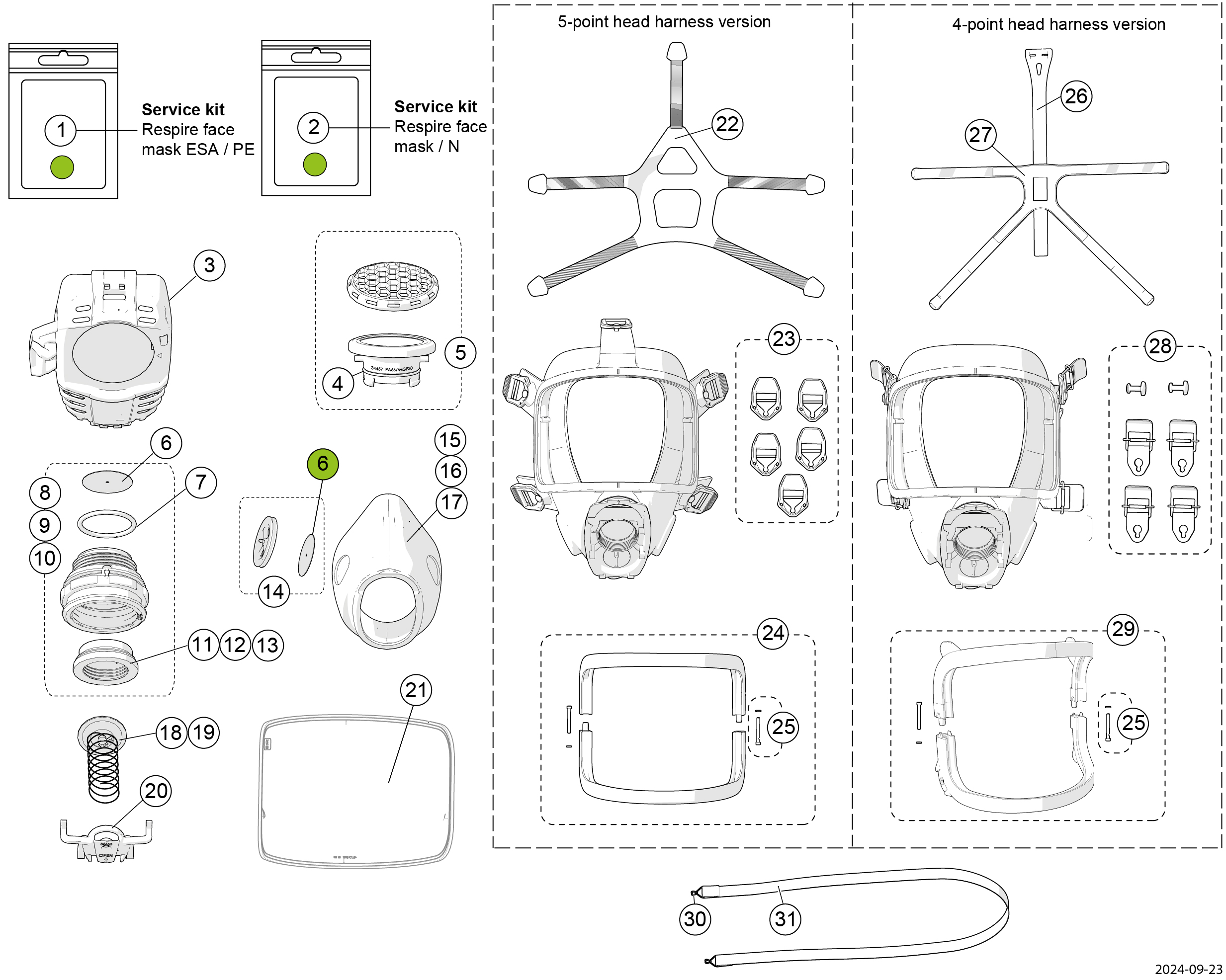

| Position | Item number | Description |
| 1 |
460200162
|
Service kit for Respire ESA &PE face mask
|
| 2 |
460200163
|
Service kit, breathing valve Respire N
|
| 3 |
34460-51
|
Cover, Respire
|
| 4 |
336890340
|
O-ring, 10 x 96966-01
|
| 5 |
34455-51
|
Speech diaphragm assy, Respire
|
| 6 |
32419-51
|
Non-return valve disc, 10 x 32419-01 Replaces 336190264
|
| 7 |
460200161
|
O-ring, 29.8x2.62, 10 x 35366-01
|
| 8 |
34517-51
|
Respire ESA adapter
|
| 9 |
34472-51
|
Respire PE adapter
|
| 10 |
34476-51
|
Respire N adapter
|
| 11 |
34515-51
|
Sealing ring ESA, Respire
|
| 12 |
34474-51
|
Sealing ring, PE, Respire
|
| 13 |
34479-51
|
Sealing ring, N, Respire
|
| 14 |
34518-51
|
Non return valve assy, Respire
|
| 15 |
95002-52
|
Inner mask S/M, NR
|
| 16 |
96756-52
|
Inner mask, L/XL, NR
|
| 17 |
96756-53
|
Inner mask, L/XL, silicone
|
| 18 |
34526-52
|
Exhalation valve N, Respire
|
| 19 |
34526-51
|
Exhalation valve ESA and PE, Respire
|
| 20 |
34453-51
|
Spring holder, Respire
|
| 21 |
460190351
|
Visor, hardcoated
|
| 22 |
95010-52
|
Head harness, 4-point adjustment
|
| 23 |
460200065
|
Buckle assy, 5-pack
|
| 24 |
460190894
|
Visor Frame assy, no Tabs
|
| 25 |
336190409
|
Screw with washer, 10-pack
|
| Position | Item number | Description |
| 26 |
460190004
|
Top strap
|
| 27 |
31306-51
|
Head harness, Standard version, 5-point adjustment - NR
|
| 28 |
460190830
|
Buckle, 4-pack
|
| 29 |
460190657
|
Visor frame assy, black
|
| 30 |
31846-51
|
Neck strap attachment loop, 10-pack
|
| 31 |
31331-51
|
Neck strap assembly
|

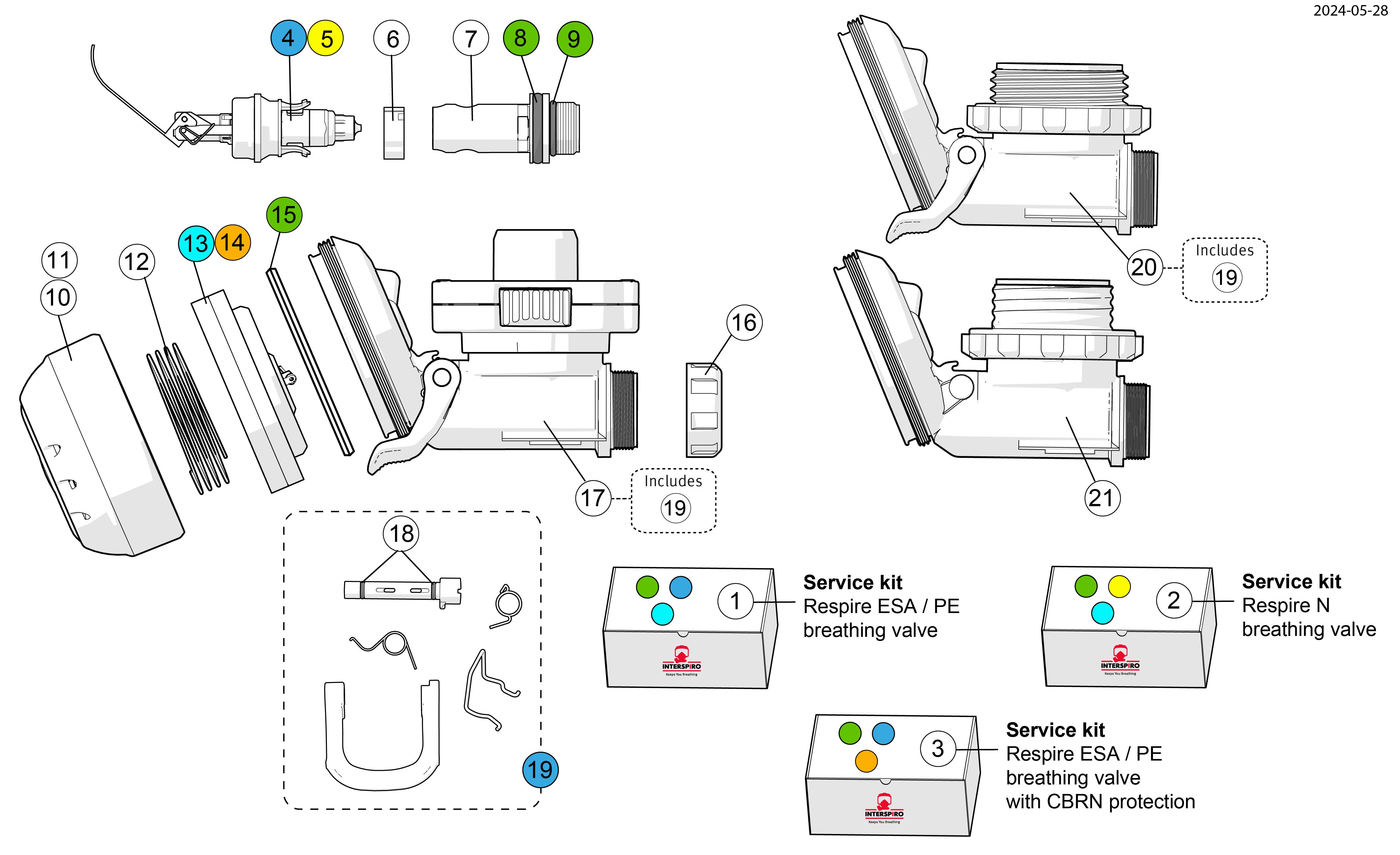

| Position | Item number | Description |
| 1 |
460200149
|
Service kit for ESA & PE breathing valve - version without CBRN protection
|
| 2 |
460200150
|
Service kit for N breathing valve
|
| 3 |
460200193
|
Service kit for Respire ESA & PE breathing valve - standard version with CBRN protection
|
| 4 |
460190222
|
Valve insert S-valve / Respire
|
| 5 |
460190872
|
Valve insert S-N
|
| 6 |
460190068
|
Locking ring, 5 x 95053
|
| 7 |
460190242
|
Connection nipple (M16 thread)
|
| 8 |
336190227
|
O-ring, 10 x 331900064
|
| 9 |
336190228
|
O-ring, 12.42x1.78, NBR, 10 x 336900007
|
| 10 |
460200145
|
S-ESA/-PE Cover
|
| 11 |
460200152
|
S-N cover
|
| 12 |
460200144
|
S-ESA/-PE positive pressure spring
|
| 13 |
460200143
|
S-ESA/-PE/-N Diaphragm
|
| 14 |
460200185
|
ESA / PE CBRN diaphragm
|
| 15 |
34886-51
|
Sealing ring
|
| 16 |
460190516
|
Locking nut, black, 5 x 336101140
|
| 17 |
460190869
|
Valve housing S-ESA
|
| 18 |
336190225
|
O-ring, 10 x 336900001
|
| 19 |
460200071
|
Activation arm for S-PE & S-ESA
|
| 20 |
460190870
|
Valve housing S-PE
|
| 21 |
460190871
|
Valve housing S-N
|
