Spare part list










S-FB First breath version



2024 December

READ BEFORE USE


1. Only holders of a valid Interspiro Service Certificate may carry out
    service and repairs on Interspiro breathing equipment. Unauthorized
    service may result in malfunction and users relying thereon could
    sustain severe respiratory injury or death.


2. When using the spare part list always refer to the equipment's Service
    manual in regard to procedures and handling of the spare parts
    assembly and function.


3. Changes to this document – necessitated by typographical errors,
    inaccuracies of current information or improvements and changes of
    equipment – may be done at any time and without prior notice. Always
    refer to the Interspiro webpage for the latest version.


4. The description defines if the spare part is a multi-pack,
    e. g. "10 x 336100437" indicates that this is a multi-pack
    that consists of 10 pieces of the single component 336100437.
    The single component part number 336100437 can not be ordered,
    it is only used to label parts included in service kits.


5. The service kits contain replacement items used for preventive
    maintenance.


6.  Always refer to the Interspiro webpage for product and document
     updates and important notices.

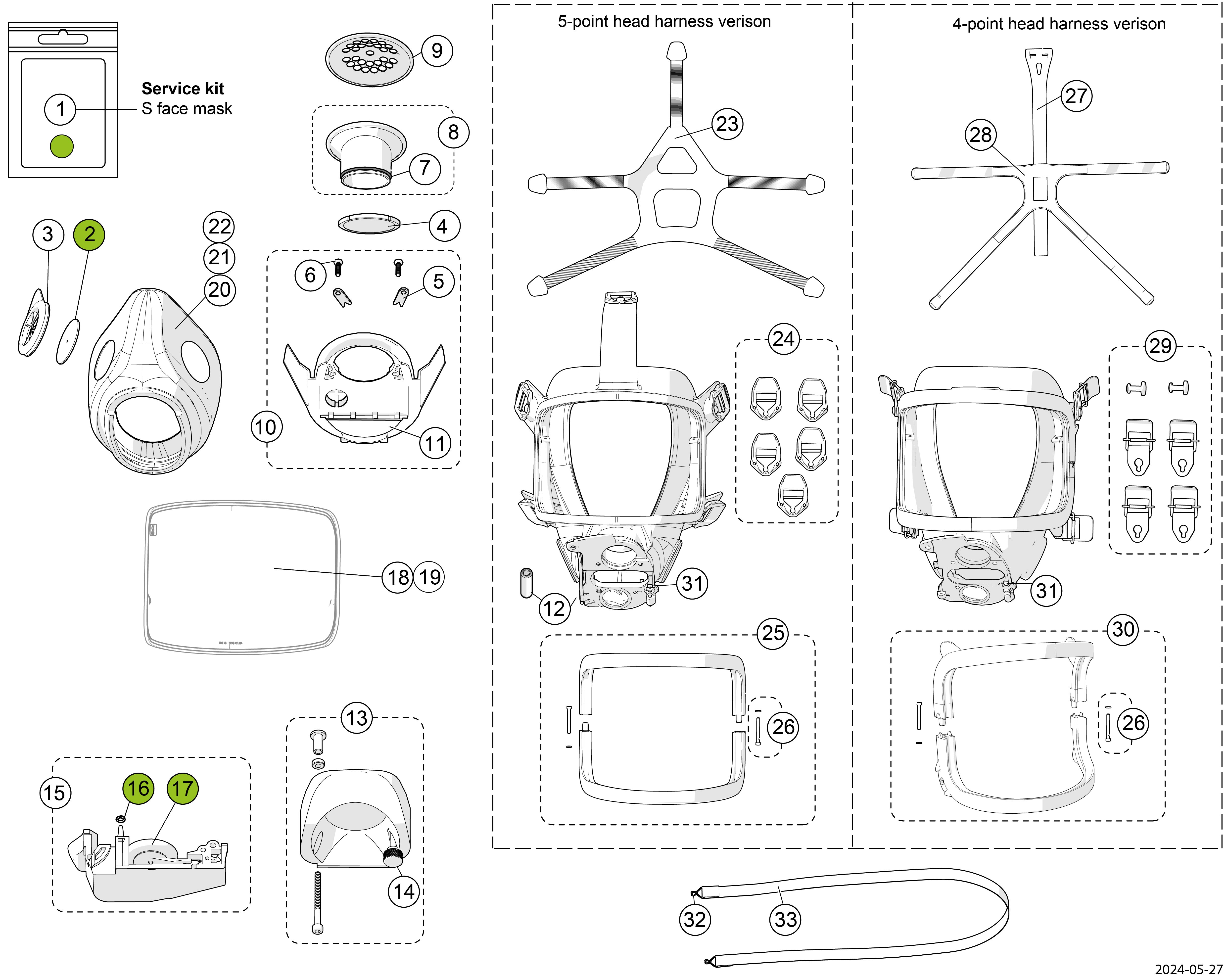

Spare Parts S-FB mask






Spare Parts S-FB mask
Position Item number Description
1
460190324
Service kit for Inspire & S face mask
2
460190014
Non-return valve disc, Q, 10-pack (10 x 336800092)
3
95026-52
Valve seat, black, 1 pc
4
460190149
Protective net
5
460190223
Locking plate, 10 x 336100822
6
460190239
Screw, 10 x 944288226
7
336190790
O-ring, 10 x 336900268
8
336190773
Speech diaphragm with O-ring
9
460200105
Speech diaphragm cover
10
460190019
Inner mask plate assy
11
460190072
Non return flap, 5-pack
12
99252-51
Screw, 10-Pack
13
460200017
External speech cone, first breath version, black
14
460190148
Hand screw
15
460190656
Exhalation valve, black Assembled
16
460190071
O-ring, 10 x 95212-01
17
460190011
Exhalation valve disc 5-pack
18
460200200
Visor, hardcoated, anti-fog - Replaces 96701-51
19
460190351
Visor, hardcoated
20
95002-58
Inner mask S/M, EPDM
21
96756-58
Inner mask, L/XL, EPDM
22
96756-53
Inner mask, L/XL, silicone
23
31306-53
Head harness, Standard version, 5-point adjustment - EPDM
24
460200065
Buckle assy, 5-pack
25
460190657
Visor frame assy, black

Spare Parts S-FB mask
Position Item number Description
26
336190409
Screw with washer, 10-pack
27
460190004
Top strap
28
95010-52
Head harness, 4-point adjustment
29
460190830
Buckle, 4-pack
30
460190894
Visor Frame assy, no Tabs
31
460190374
Locking pin, 5 pack (5 x 95202-01)
32
31846-51
Neck strap attachment loop, 10-pack
33
31331-51
Neck strap assembly

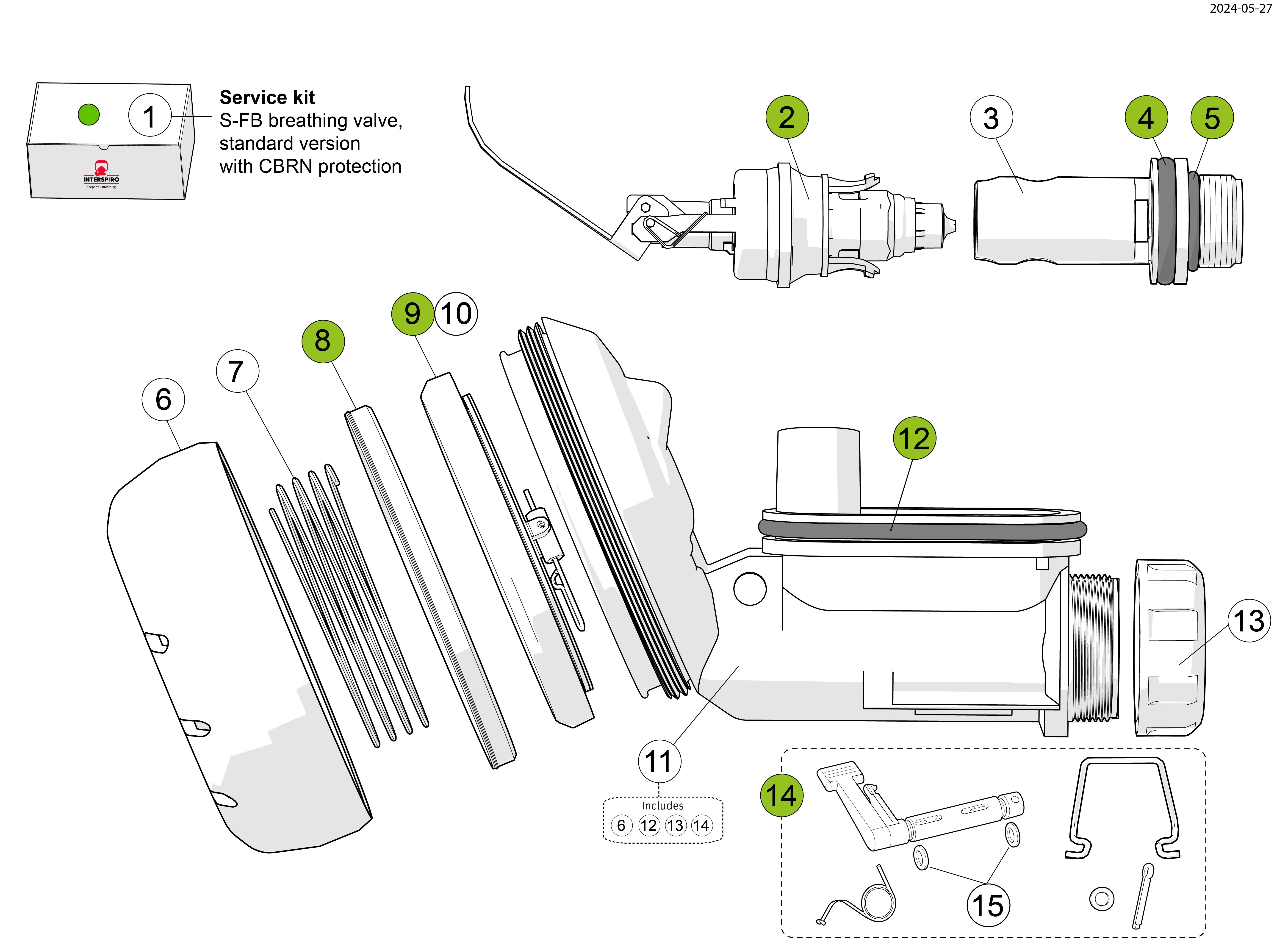

Spare Parts S-FB breathing valve






Spare Parts S-FB breathing valve
Position Item number Description
1
460190611
Service kit for S breathing valve-standard version with CBRN protection, first breath, M16
2
460190222
Valve insert S-valve / Respire
3
460190242
Connection nipple (M16 thread)
4
336190227
O-ring, 10 x 331900064
5
336190228
O-ring, 12.42x1.78, NBR, 10 x 336900007
6
95061-52
Cover, black, 5-pack
7
460190022
Positive pressure spring, 5 x 95063
8
460190308
Diaphragm ring, 10-pack (10 x 331100653)
9
460190021
Diaphragm assembly, standard version with CBRN protection
10
460190332
Diaphragm assembly, version without CBRN protection
11
460200076
Valve housing assy, black, first breath
12
460190023
O-ring, 10 x 95077-01
13
460190516
Locking nut, black, 5 x 336101140
14
460190610
Lifting arm assy, first breath
15
336190225
O-ring, 10 x 336900001
