Spare part list










Incurve-E



2025 March

READ BEFORE USE


1. Only holders of a valid Interspiro Service Certificate may carry out
    service and repairs on Interspiro breathing equipment. Unauthorized
    service may result in malfunction and users relying thereon could
    sustain severe respiratory injury or death.


2. When using the spare part list always refer to the equipment's Service
    manual in regard to procedures and handling of the spare parts
    assembly and function.


3. Changes to this document – necessitated by typographical errors,
    inaccuracies of current information or improvements and changes of
    equipment – may be done at any time and without prior notice. Always
    refer to the Interspiro webpage for the latest version.


4. The description defines if the spare part is a multi-pack,
    e. g. "10 x 336100437" indicates that this is a multi-pack
    that consists of 10 pieces of the single component 336100437.
    The single component part number 336100437 can not be ordered,
    it is only used to label parts included in service kits.


5. The service kits contain replacement items used for preventive
    maintenance.


6.  Always refer to the Interspiro webpage for product and document
     updates and important notices.

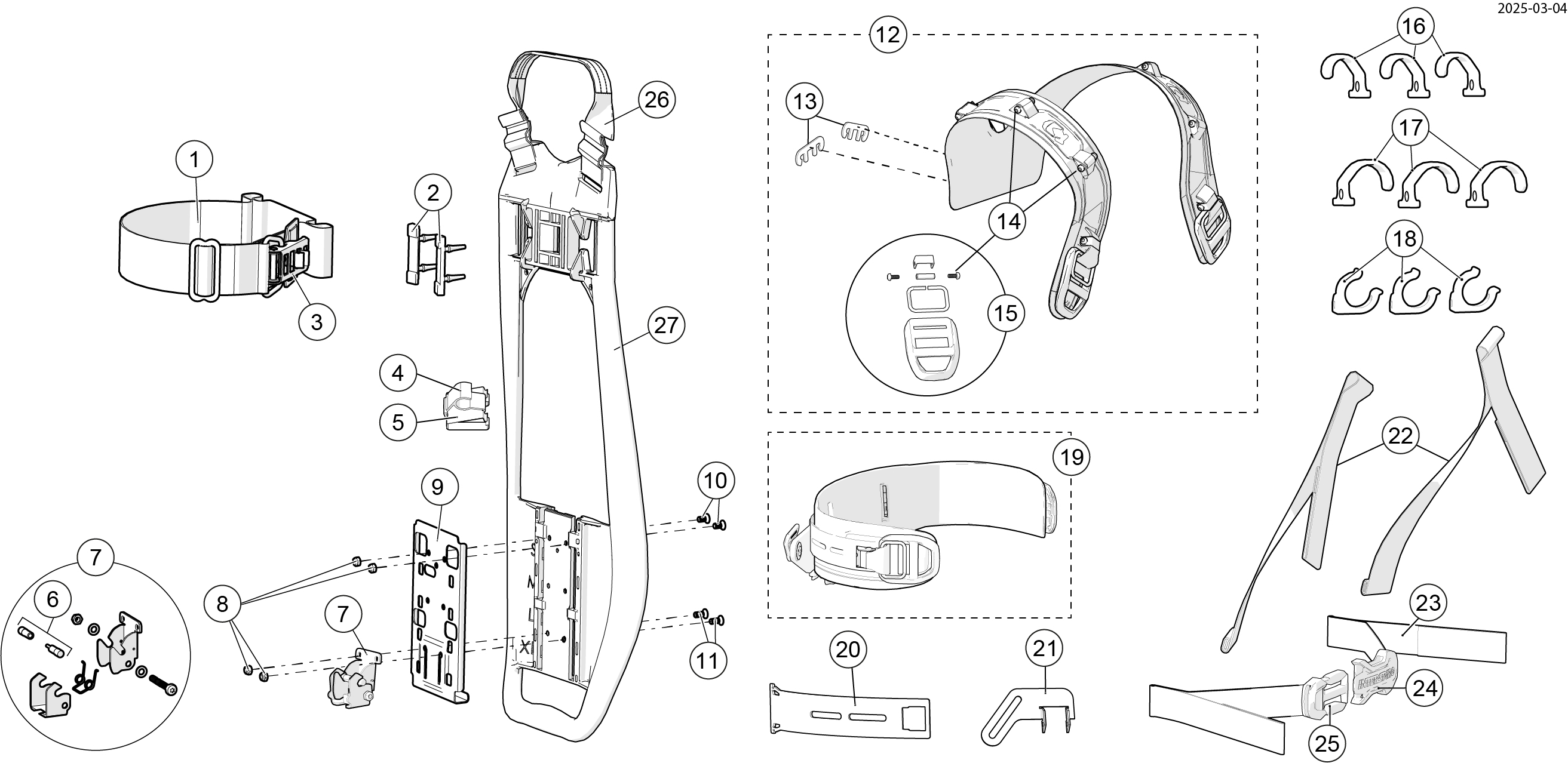

Spare Parts Incurve-E harness






Spare Parts Incurve-E harness
Position Item number Description
1
31346-61
Cylinder strap including buckle, Incurve
2
460190101
Cylinder support 10-pack
3
31343-51
Cylinder strap buckle
4
460190645
Hose holder, rescue hose, 3 pack
5
30574-51
Hose holder clip
6
33411-51
Regulator rod
7
460200109
Quick attach Spiroguide
8
99799-55
Locking Nut M5, 10-pack (10 x 99799-05)
9
31314-51
Bracket
10
99709-51
Screw, 10 x 99709-01
11
99709-52
Screw, 10 x 99709-02
12
460200112
Shoulder strap unit, complete
13
33466-51
Backplate clip, 2 x 33466-01
14
99711-52
Screw, 10 x 99711-02
15
460200113
Buckle
16
33457-51
Holder for high pressure hose, 3-pack
17
33457-52
Holder for breathing hose, 3-pack
18
33620-51
Holder for rescue hose, 3-pack
19
31310-52
Incurve hip belt w/o straps and waist buckle
20
33460-51
Hip belt stabiliser
21
33461-51
Pouch holder
22
31325-52
Adjusting strap, shoulder, 2 pack
23
31326-51
Adjusting strap, hip, QS II, 2 x 31326-01
24
31302-51
Waist buckle, female
25
31303-51
Waist buckle, male

Spare Parts Incurve-E harness
Position Item number Description
26
33464-51
Handle, Incurve
27
31311-51
Backplate
