Spare part list
|
Incurve-R Single cylinder
|
|
2025 July
|
READ BEFORE USE
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.
Spare Parts reserve air warning and plug-in regulator unit single cylinder
| Position | Item number | Description |
| 1 |
460190319
|
Service kit reserve air warning
|
| 2 |
460190322
|
Service kit plug-in pressure regulator
|
| 3 |
460190639
|
Nut, 10 pack (10 x 99795-02)
|
| 4 |
460190640
|
Cover, front and back side
|
| 5 |
336190247
|
Screw, 10 pack (10 x 336900057)
|
| 6 |
96531-51
|
Quick coupling, Interspiro, male Replaces 460190485
|
| 7 |
346190069
|
O-ring, 12.1x1.6, 10 x 944610210
|
| 8 |
460190369
|
Cone with o-ring
|
| 9 |
336190228
|
O-ring, 12.42x1.78, NBR, 10 x 336900007
|
| 10 |
336190240
|
O-ring, 5 x 331100562
|
| 11 |
336190384
|
O-ring, 10 x 944610209
|
| 12 |
460190439
|
Guide bushing, 5 pack (5 x 336100402)
|
| 13 |
460190437
|
Spring, 5 x 336100401
|
| 14 |
460190431
|
Piston, 5 pack (5 x 336100400)
|
| 15 |
460190442
|
Plug, 5 pack (5 x 336100403)
|
| 16 |
336190159
|
Gasket set, 1 x 335100368 & 1 x 335100369
|
| 17 |
460190421
|
Cap, 10 pack (10 x 336100604)
|
| 18 |
460190441
|
Nut, 5 pack (5 x 336100606)
|
| 19 |
336190380
|
Split pin, 10-pack (10 x 336900104)
|
| 20 |
460190433
|
Handle, 5 pack (5 x 336100603)
|
| 21 |
460190430
|
Torsion spring, 5 pack (5 x 336100605)
|
| 22 |
336190381
|
O-ring, 10 x 336900106
|
| 23 |
460190428
|
Nipple, 5 pack (5 x 336100407)
|
| 24 |
460190429
|
Valve stem assembly
|
| 25 |
336190382
|
O-ring, 10 x 336900103
|
Spare Parts reserve air warning and plug-in regulator unit single cylinder
| Position | Item number | Description |
| 26 |
336190595
|
O-ring, 10 x 336900165
|
| 27 |
336190383
|
Valve disc, 5-pack (5 x 336100412)
|
| 28 |
30984-51
|
Pressure gauge cover
|
| 29 |
460190381
|
Pressure gauge with gasket set
|
| 30 |
96317-01
|
Pressure regulator
|
| 31 |
460190419
|
O-ring, 10 x 944610303
|
| 32 |
460190867
|
Plug with O-ring 1/8 for QS-R
|
| 33 |
88193-56
|
Regulator cover Replaces 460190389
|
| 34 |
336190311
|
O-ring, 10 x 944610206
|
| 35 |
346190053
|
Protective band, 10-pack (10 x 346100066)
|
| 36 |
460190387
|
Relief valve
|
| 37 |
88193-54
|
Regulator cover 3-port 1/8 parallell + back
|
| 38 |
346190022
|
O-ring, 10 x 346900002
|
| 39 |
460190386
|
Piston
|
| 40 |
346190026
|
Spring, 5 x 346100005
|
| 41 |
346190024
|
O-ring, 10 x 346900004
|
| 42 |
460190201
|
Protective band, 5 x 95472
|
| 43 |
460190198
|
O-ring & back-up ring, 10 pack (10 x 346900001 & 95471-01)
|
| 44 |
460190199
|
O-ring & back-up ring, 50-pack (50 x 346900001 & 95471-01)
|
| 45 |
346190023
|
Valve seat set
|
| 46 |
460190388
|
Adjusting screw, 5 x 346100009
|
| 47 |
346190295
|
Sealing label 25-pack
|
| 48 |
346190293
|
Locking clip, 10-pack (10 x 346100158)
|
| 49 |
346190294
|
Protective cover, 10 x 346100159
|
Spare Parts regulator unit with reserve air warning single cylinder
| Position | Item number | Description |
| 1 |
460200061
|
Service kit for QS II-R & Incurve-R with hand wheel connector
|
| 2 |
460200063
|
Service kit for QS II-R & Incurve-R with Cylinder Quick Coupling
|
| 3 |
460190321
|
Service kit Manifold
|
| 4 |
460200046
|
Service kit manifold, Cylinder Quick Coupling
|
| 5 |
460190711
|
Service kit cylinder connection
|
| 6 |
460200045
|
Service kit cylinder connection with quick coupling
|
| 7 |
460200153
|
Service kit extra air connection, male
|
| 8 |
336190237
|
O-ring, 10 x 336900099
|
| 9 |
99835-01
|
Breathing hose, male Euro, straight
|
| 10 |
336190287
|
Breathing hose 0,55 m
|
| 11 |
460190366
|
Female quick coupling (euro) Replaces 336900254
|
| 12 |
336190236
|
O-ring, 10 x 944610205
|
| 13 |
31391-51
|
Dust cover, small, 10-pack
|
| 14 |
336890105
|
O-ring, 10 x 336900183
|
| 15 |
460190059
|
Filter & holder & O-ring kit, 10-pack
|
| 16 |
346190643
|
Inlet filter, 10-pack (10 x 212100014)
|
| 17 |
346190644
|
Inlet Filter, 100-pack (100 x 212100014)
|
| 18 |
460200114
|
O-ring, 10 x OR22,0X1,0-Q60
|
| 19 |
336190437
|
O-ring, 10 x 336900182
|
| 20 |
30569-51
|
Regulator part, cylinder quick coupling
|
| 21 |
336190232
|
O-ring, 10 x 336900044
|
| 22 |
30130-51
|
Spring, 5 x 30130-01
|
| 23 |
98520-51
|
Hand wheel
|
| 24 |
460190383
|
Connection nipple
|
| 25 |
460190382
|
Sealing nipple
|
Spare Parts regulator unit with reserve air warning single cylinder
| Position | Item number | Description |
| 26 |
336190272
|
O-ring, 10 x 331100767
|
| 27 |
460190237
|
O-ring, 100 x 331100767
|
| 28 |
460190192
|
Back-up ring & O-ring, 5-pack (5 x 98568-01 & 012027-01)
|
| 29 |
336190221
|
O-ring, 10 x 944610204
|
| 30 |
31392-51
|
Dust cover, large, 10-pack
|
| 31 |
96529-52
|
High pressure hose 960 mm
|
| 32 |
95240-52
|
Y-piece, Interspiro, male/female
|
| 33 |
96403-53
|
Medium pressure hose 950 mm
|
| 34 |
460190041
|
Medium pressure hose for Y-piece
|
| 35 |
336190312
|
O-ring, 10 x 336900105
|
| 36 |
336190311
|
O-ring, 10 x 944610206
|
| 37 |
99368-51
|
Adapter
|
| 38 |
460190369
|
Cone with o-ring
|
| 39 |
346190069
|
O-ring, 12.1x1.6, 10 x 944610210
|
| 40 |
95803-51
|
Quick coupling, Interspiro Female
|
| 41 |
96531-51
|
Quick coupling, Interspiro, male Replaces 460190485
|

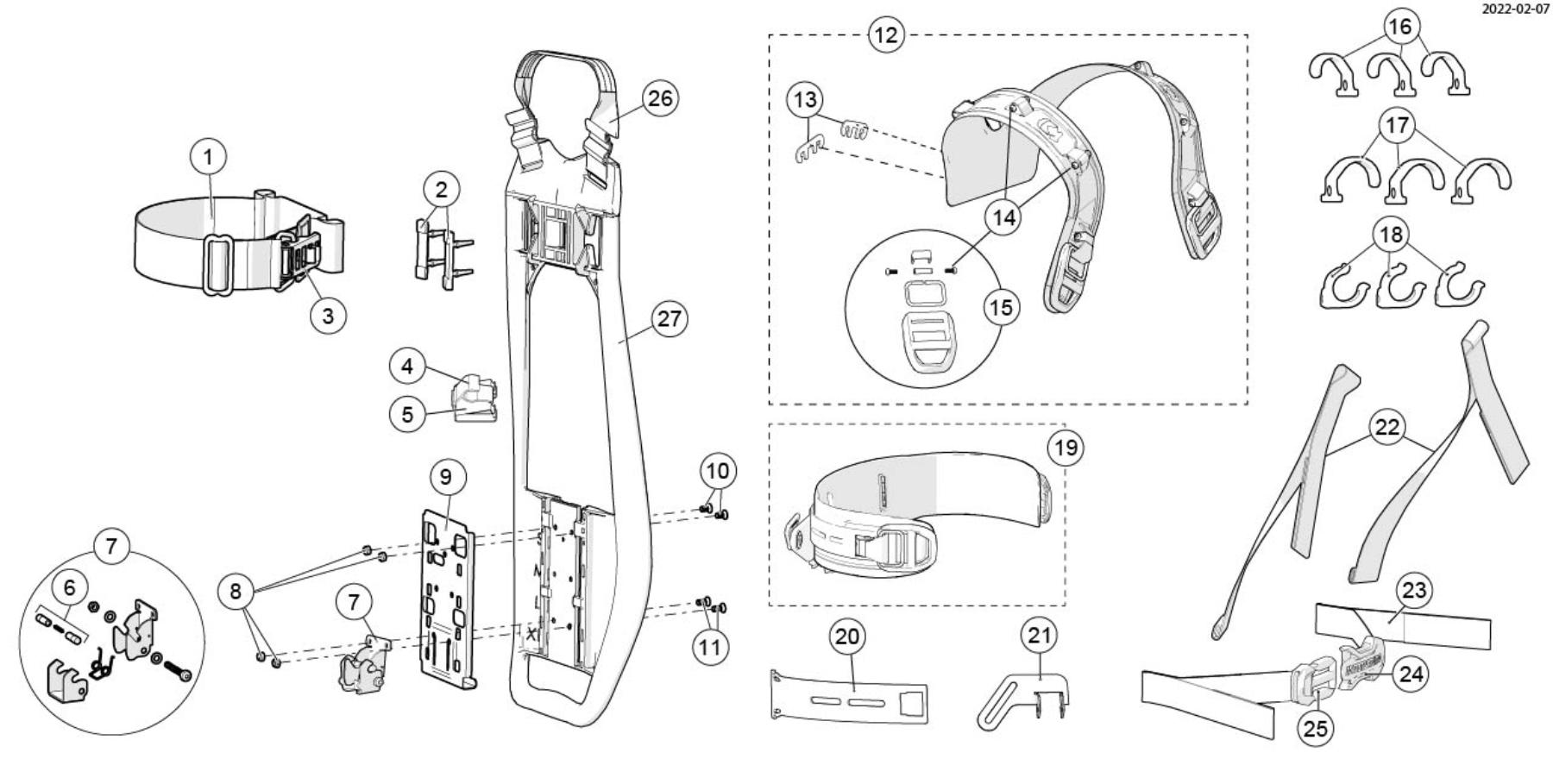

Spare Parts Incurve harness
Spare Parts Incurve harness
| Position | Item number | Description |
| 1 |
31346-61
|
Cylinder strap including buckle, Incurve
|
| 2 |
460190101
|
Cylinder support 10-pack
|
| 3 |
31343-51
|
Cylinder strap buckle
|
| 4 |
460190645
|
Hose holder, rescue hose, 3 pack
|
| 5 |
30574-51
|
Hose holder clip
|
| 6 |
99799-55
|
Locking Nut M5, 10-pack (10 x 99799-05)
|
| 7 |
31314-51
|
Bracket
|
| 8 |
99709-51
|
Screw, 10 x 99709-01
|
| 9 |
99709-52
|
Screw, 10 x 99709-02
|
| 10 |
460200112
|
Shoulder strap unit, complete
|
| 11 |
33466-51
|
Backplate clip, 2 x 33466-01
|
| 12 |
99711-52
|
Screw, 10 x 99711-02
|
| 13 |
460200113
|
Buckle
|
| 14 |
33457-51
|
Holder for high pressure hose, 3-pack
|
| 15 |
33457-52
|
Holder for breathing hose, 3-pack
|
| 16 |
33460-51
|
Hip belt stabiliser
|
| 17 |
31325-52
|
Adjusting strap, shoulder, 2 pack
|
| 18 |
31302-51
|
Waist buckle, female
|
| 19 |
31303-51
|
Waist buckle, male
|
| 20 |
33464-51
|
Handle, Incurve
|
| 21 |
31311-51
|
Backplate
|
| 22 |
33411-51
|
Regulator rod
|
| 23 |
460200108
|
Quick attachment regulator
|
| 24 |
33620-51
|
Holder for rescue hose, 3-pack
|
| 25 |
31310-52
|
Incurve hip belt w/o straps and waist buckle
|
Spare Parts Incurve harness
| Position | Item number | Description |
| 26 |
33461-51
|
Pouch holder
|
| 27 |
31326-51
|
Adjusting strap, hip, QS II, 2 x 31326-01
|
