Spare part list
|
Incurve
|
|
2024 December
|
READ BEFORE USE
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

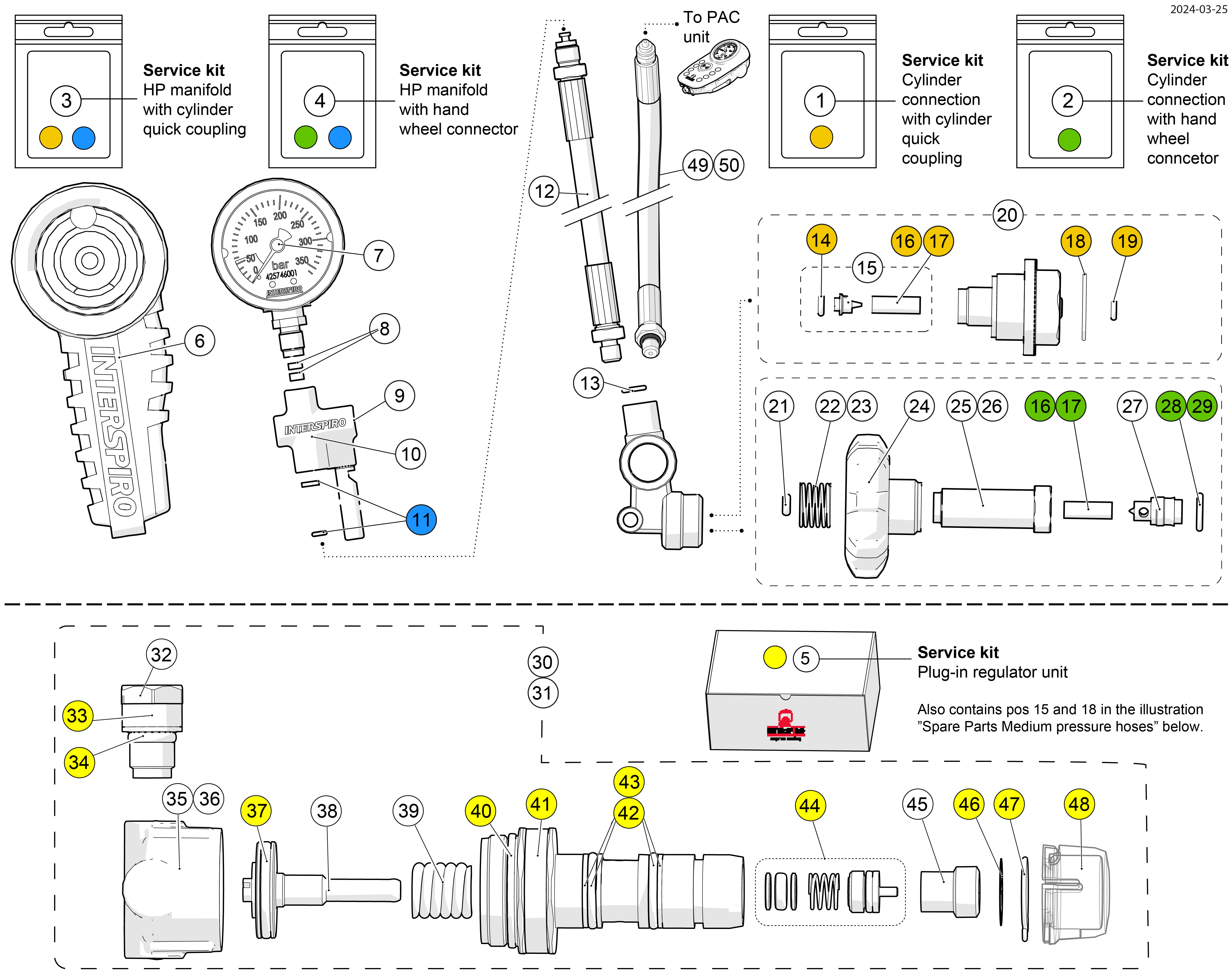

Spare Parts Plug-in regulator
Spare Parts Plug-in regulator
| Position | Item number | Description |
| 1 |
460200045
|
Service kit cylinder connection with quick coupling
|
| 2 |
460190711
|
Service kit cylinder connection
|
| 3 |
460200046
|
Service kit manifold, Cylinder Quick Coupling
|
| 4 |
460190321
|
Service kit Manifold
|
| 5 |
460190322
|
Service kit plug-in pressure regulator
|
| 6 |
32532-51
|
Pressure gauge cover
|
| 7 |
460190381
|
Pressure gauge with gasket set
|
| 8 |
336190159
|
Gasket set, 1 x 335100368 & 1 x 335100369
|
| 9 |
31365-51
|
Sealing label, whistle,10-pack
|
| 10 |
34850-51
|
Whistle, 55 Bar Replaces 31030-51
|
| 11 |
460190192
|
Back-up ring & O-ring, 5-pack (5 x 98568-01 & 012027-01)
|
| 12 |
96529-51
|
High pressure hose 920 mm
|
| 13 |
336190312
|
O-ring, 10 x 336900105
|
| 14 |
336890105
|
O-ring, 10 x 336900183
|
| 15 |
460190059
|
Filter & holder & O-ring kit, 10-pack
|
| 16 |
346190643
|
Inlet filter, 10-pack (10 x 212100014)
|
| 17 |
346190644
|
Inlet Filter, 100-pack (100 x 212100014)
|
| 18 |
460200114
|
O-ring, 10 x OR22,0X1,0-Q60
|
| 19 |
336190437
|
O-ring, 10 x 336900182
|
| 20 |
30569-51
|
Regulator part, cylinder quick coupling
|
| 21 |
336190232
|
O-ring, 10 x 336900044
|
| 22 |
30130-51
|
Spring, 5 x 30130-01
|
| 23 |
30130-52
|
Spring, long, 5 x 30130-02
|
| 24 |
98520-51
|
Hand wheel
|
| 25 |
460190383
|
Connection nipple
|
Spare Parts Plug-in regulator
| Position | Item number | Description |
| 26 |
460190384
|
Connection nipple long
|
| 27 |
460190382
|
Sealing nipple
|
| 28 |
336190272
|
O-ring, 10 x 331100767
|
| 29 |
460190237
|
O-ring, 100 x 331100767
|
| 30 |
460190141
|
Pressure regulator, spare part
|
| 31 |
96317-51
|
Plug in regulator, 3-port
|
| 32 |
460190387
|
Relief valve
|
| 33 |
346190053
|
Protective band, 10-pack (10 x 346100066)
|
| 34 |
336190311
|
O-ring, 10 x 944610206
|
| 35 |
88193-56
|
Regulator cover Replaces 460190389
|
| 36 |
88193-54
|
Regulator cover 3-port 1/8 parallell + back
|
| 37 |
346190022
|
O-ring, 10 x 346900002
|
| 38 |
460190386
|
Piston
|
| 39 |
346190026
|
Spring, 5 x 346100005
|
| 40 |
346190024
|
O-ring, 10 x 346900004
|
| 41 |
460190201
|
Protective band, 5 x 95472
|
| 42 |
460190198
|
O-ring & back-up ring, 10 pack (10 x 346900001 & 95471-01)
|
| 43 |
460190199
|
O-ring & back-up ring, 50-pack (50 x 346900001 & 95471-01)
|
| 44 |
346190023
|
Valve seat set
|
| 45 |
460190388
|
Adjusting screw, 5 x 346100009
|
| 46 |
346190295
|
Sealing label 25-pack
|
| 47 |
346190293
|
Locking clip, 10-pack (10 x 346100158)
|
| 48 |
346190294
|
Protective cover, 10 x 346100159
|
| 49 |
35588-51
|
High pressure hose for PAC, 920 mm
|
| 50 |
35588-52
|
High pressure hose for PAC, 970 mm
|

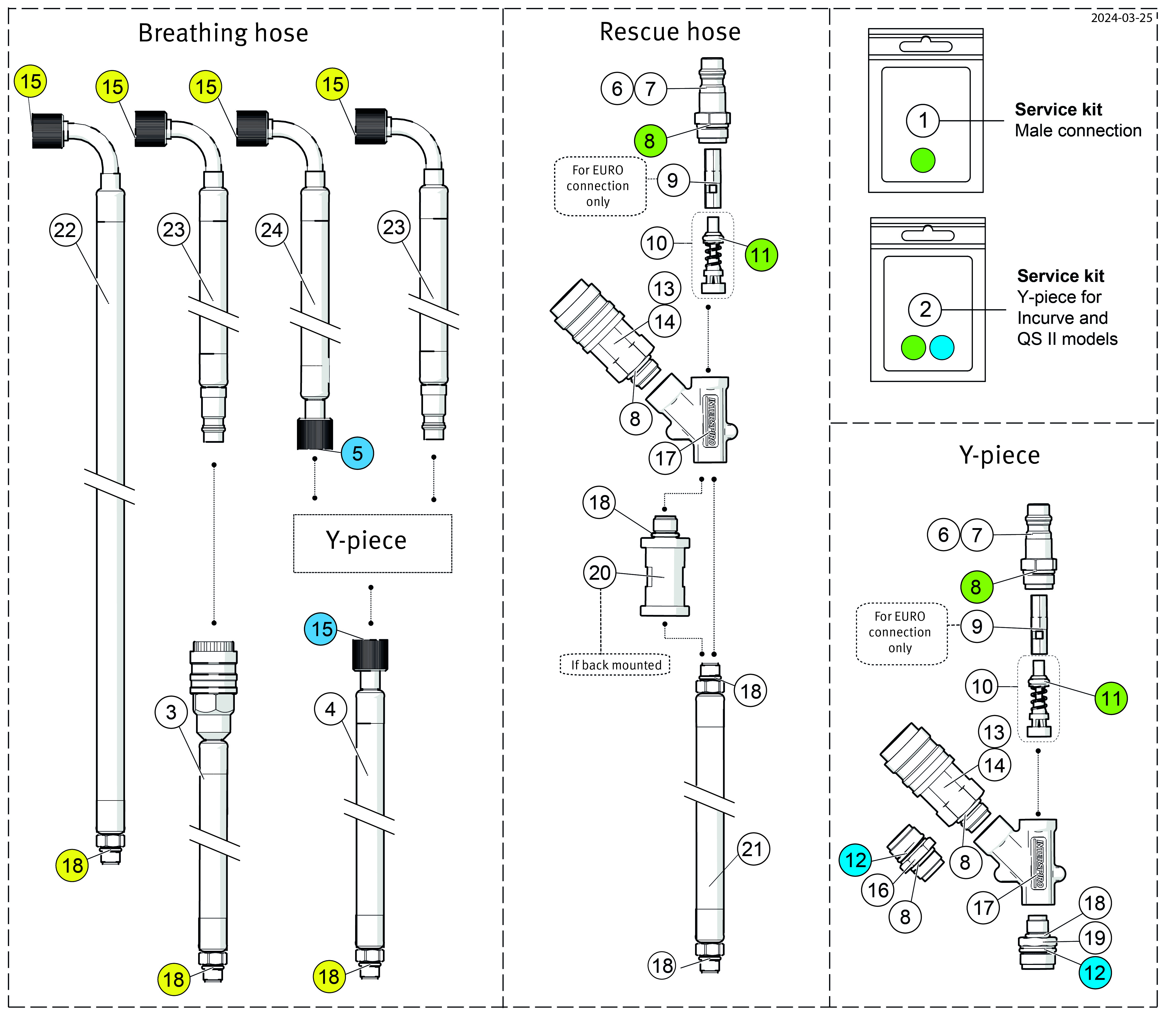

Spare Parts Medium pressure hoses
Spare Parts Medium pressure hoses
| Position | Item number | Description |
| 1 |
460200153
|
Service kit extra air connection, male
|
| 2 |
460190414
|
Service kit Y-piece, QS II & Incurve and T-piece, Spiromatic 90U
|
| 3 |
460190361
|
Supply hose 0,82 m, Replaces 346190143
|
| 4 |
460190363
|
Supply hose, 0.82 M
|
| 5 |
336190236
|
O-ring, 10 x 944610205
|
| 6 |
460190370
|
Quick coupling male Euro
|
| 7 |
96531-51
|
Quick coupling, Interspiro, male Replaces 460190485
|
| 8 |
346190069
|
O-ring, 12.1x1.6, 10 x 944610210
|
| 9 |
460190371
|
Valve tube Replaces 346100097
|
| 10 |
346190223
|
Non-return valve
|
| 11 |
460190369
|
Cone with o-ring
|
| 12 |
336190228
|
O-ring, 12.42x1.78, NBR, 10 x 336900007
|
| 13 |
95244-51
|
Quick coupling female Euro
|
| 14 |
95803-51
|
Quick coupling, Interspiro Female
|
| 15 |
336190237
|
O-ring, 10 x 336900099
|
| 16 |
95898-51
|
Nipple
|
| 17 |
95241-51
|
Extra air manifold
|
| 18 |
336190311
|
O-ring, 10 x 944610206
|
| 19 |
95557-51
|
Nipple
|
| 20 |
99368-51
|
Adapter
|
| 21 |
460190041
|
Medium pressure hose for Y-piece
|
| 22 |
460190236
|
Breathing hose L=1.35 m
|
| 23 |
460190362
|
Breathing hose, Euro male, 0.55 M
|
| 24 |
460190364
|
Breathing hose, union nut, L=0.55 m
|
Spare Parts PAC
| Position | Item number | Description |
| 1 |
35059-51
|
Hose bracket
|
| 2 |
31081-51
|
O-ring, 10 x 31081-01
|
| 3 |
35084-51
|
Cover for hose bracket
|
| 4 |
99744-851
|
Screw with thread locker, 10 x 99744-801
|
| 5 |
98814-53
|
Batteries AAA, 10-pack
|
| 6 |
460200190
|
O-ring, 10-pack
|
| 7 |
35460-51
|
Battery pack (without batteries)
|
| 8 |
35067-51
|
Tally key
|
| 9 |
34677-51
|
Washing plug PAC battery port
|

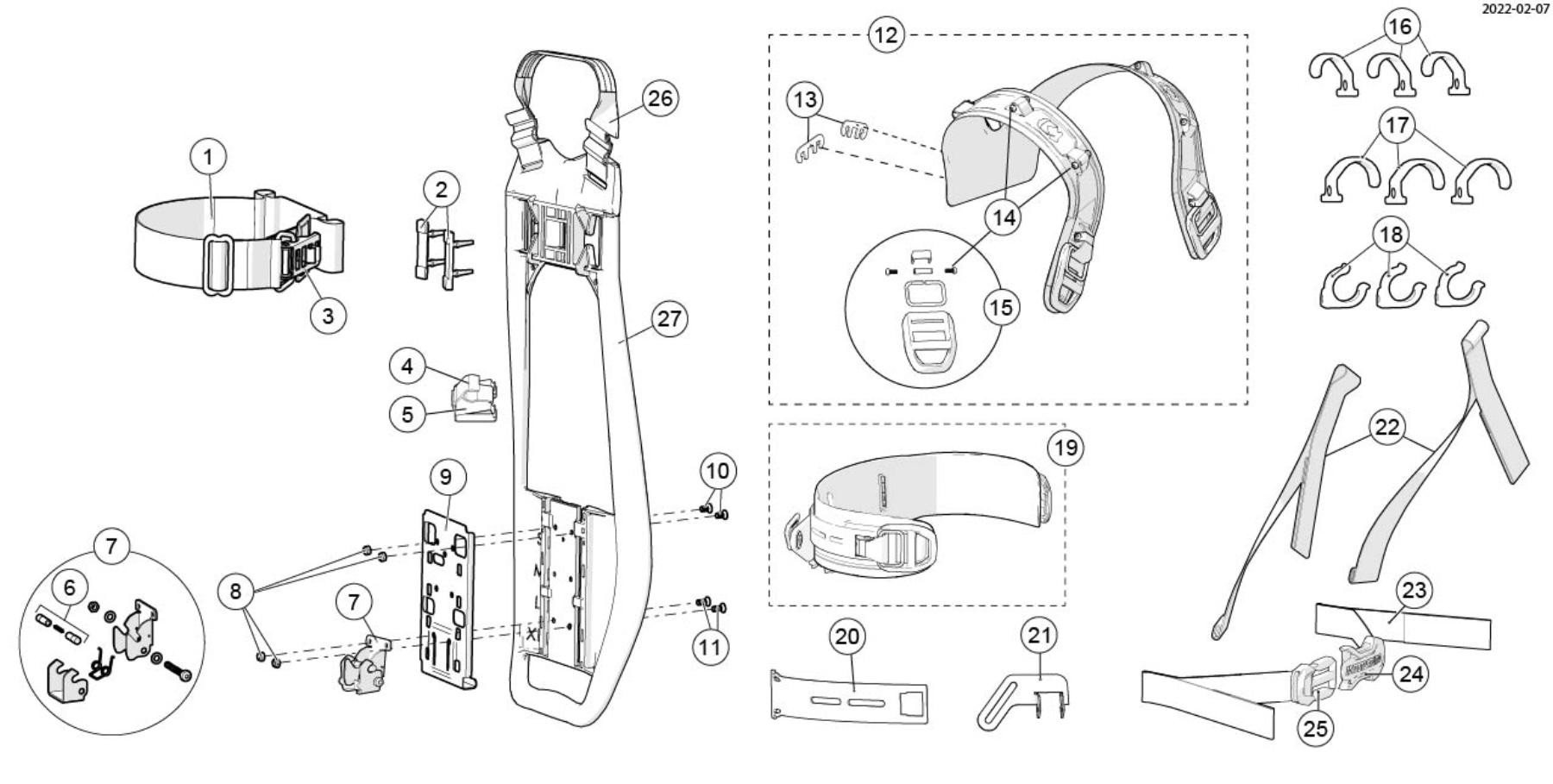

Spare Parts Incurve harness
Spare Parts Incurve harness
| Position | Item number | Description |
| 1 |
31346-61
|
Cylinder strap including buckle, Incurve
|
| 2 |
460190101
|
Cylinder support 10-pack
|
| 3 |
31343-51
|
Cylinder strap buckle
|
| 4 |
460190645
|
Hose holder, rescue hose, 3 pack
|
| 5 |
30574-51
|
Hose holder clip
|
| 6 |
33411-51
|
Regulator rod
|
| 7 |
460200108
|
Quick attachment regulator
|
| 8 |
99799-55
|
Locking Nut M5, 10-pack (10 x 99799-05)
|
| 9 |
31314-51
|
Bracket
|
| 10 |
99709-51
|
Screw, 10 x 99709-01
|
| 11 |
99709-52
|
Screw, 10 x 99709-02
|
| 12 |
460200112
|
Shoulder strap unit, complete
|
| 13 |
33466-51
|
Backplate clip, 2 x 33466-01
|
| 14 |
99711-52
|
Screw, 10 x 99711-02
|
| 15 |
460200113
|
Buckle
|
| 16 |
33457-51
|
Holder for high pressure hose, 3-pack
|
| 17 |
33457-52
|
Holder for breathing hose, 3-pack
|
| 18 |
33620-51
|
Holder for rescue hose, 3-pack
|
| 19 |
31310-52
|
Hip belt, complete
|
| 20 |
33460-51
|
Hip belt stabiliser
|
| 21 |
33461-51
|
Pouch holder
|
| 22 |
31325-52
|
Adjusting strap, shoulder, 2 pack
|
| 23 |
31326-51
|
Adjusting strap, hip, QS II, 2 x 31326-01
|
| 24 |
31302-51
|
Waist buckle, female
|
| 25 |
31303-51
|
Waist buckle, male
|
Spare Parts Incurve harness
| Position | Item number | Description |
| 26 |
33464-51
|
Handle, Incurve
|
| 27 |
31311-51
|
Backplate
|
