Spare part list
|
Incurve-E Self-contained Breathing Apparatus
|
|
2025 July
|
READ BEFORE USE
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.
.jpg?hash=02/07/2025 22:55:16)

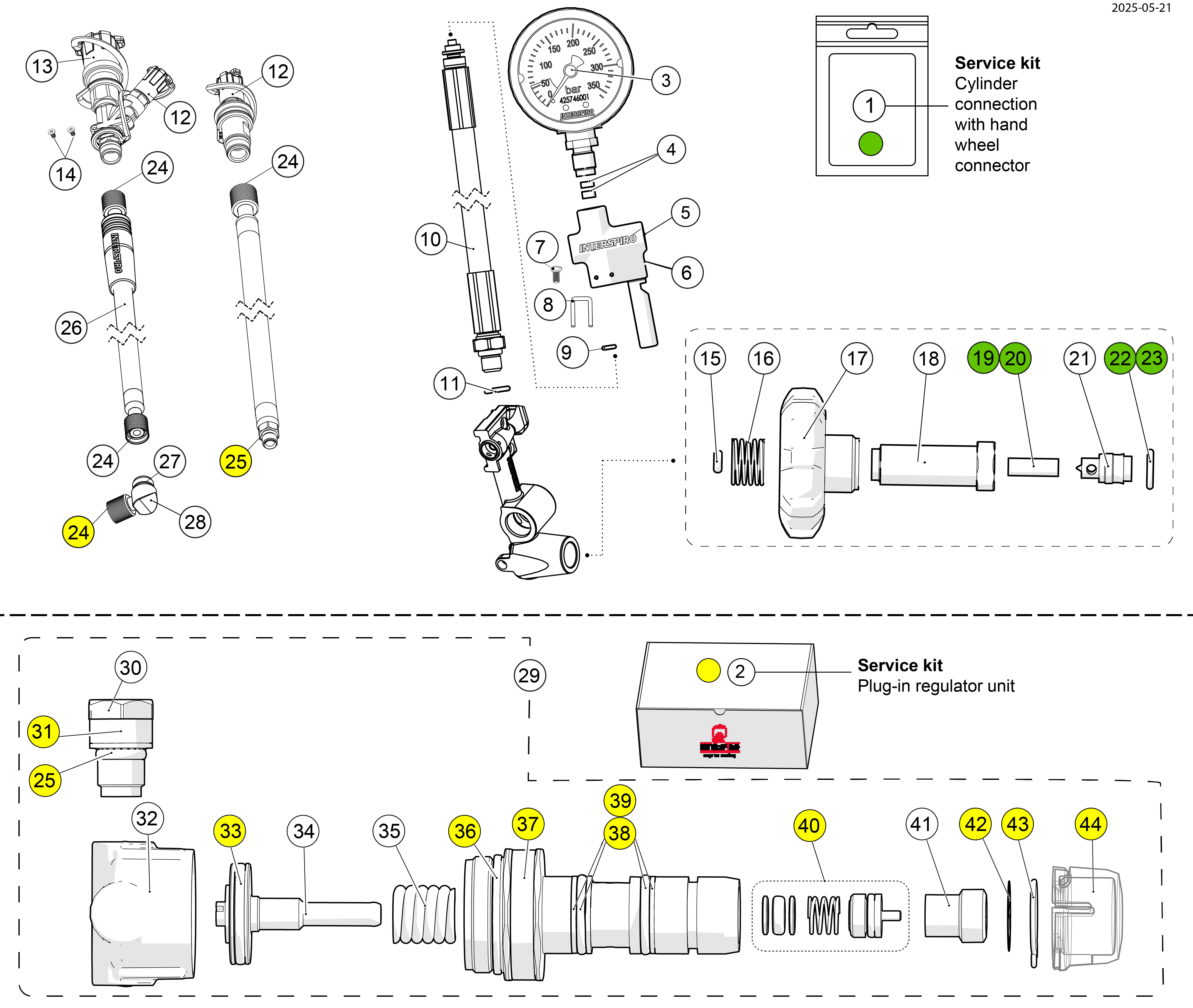

| Position | Item number | Description |
| 1 |
460190711
|
Service kit cylinder connection
|
| 2 |
460190322
|
Service kit plug-in pressure regulator
|
| 3 |
460190381
|
Pressure gauge with gasket set
|
| 4 |
336190159
|
Gasket set, 1 x 335100368 & 1 x 335100369
|
| 5 |
31365-51
|
Sealing label, whistle,10-pack
|
| 6 |
34850-63
|
Whistle, 75 bar
|
| 7 |
99722-51
|
Screw, 10 x 99722-801
|
| 8 |
31018-51
|
U-clip, 10-pack
|
| 9 |
31081-51
|
O-ring, 10 x 31081-01
|
| 10 |
35588-52
|
High pressure hose for PAC, 970 mm
|
| 11 |
336190312
|
O-ring, 10 x 336900105
|
| 12 |
31391-51
|
Dust cover, small, 10-pack
|
| 13 |
31392-51
|
Dust cover, large, 10-pack
|
| 14 |
99710-51
|
Screw, 10 x 99710-01
|
| 15 |
336190232
|
O-ring, 10 x 336900044
|
| 16 |
30130-52
|
Spring, long, 5 x 30130-02
|
| 17 |
98520-51
|
Hand wheel
|
| 18 |
460190384
|
Connection nipple long
|
| 19 |
346190643
|
Inlet filter, 10-pack (10 x 212100014)
|
| 20 |
346190644
|
Inlet Filter, 100-pack (100 x 212100014)
|
| 21 |
460190382
|
Sealing nipple
|
| 22 |
336190272
|
O-ring, 10 x 331100767
|
| 23 |
460190237
|
O-ring, 100 x 331100767
|
| 24 |
336190237
|
O-ring, 10 x 336900099
|
| 25 |
336190311
|
O-ring, 10 x 944610206
|
| Position | Item number | Description |
| 26 |
98545-01
|
Breathing hose
|
| 27 |
346190021
|
O-ring, 10 x 346900001
|
| 28 |
88119-51
|
Connector, 90 degree
|
| 29 |
460190141
|
Pressure regulator, spare part
|
| 30 |
460190387
|
Relief valve
|
| 31 |
346190053
|
Protective band, 10-pack (10 x 346100066)
|
| 32 |
88193-56
|
Regulator cover Replaces 460190389
|
| 33 |
346190022
|
O-ring, 10 x 346900002
|
| 34 |
460190386
|
Piston
|
| 35 |
346190026
|
Spring, 5 x 346100005
|
| 36 |
346190024
|
O-ring, 10 x 346900004
|
| 37 |
460190201
|
Protective band, 5 x 95472
|
| 38 |
460190198
|
O-ring & back-up ring, 10 pack (10 x 346900001 & 95471-01)
|
| 39 |
460190199
|
O-ring & back-up ring, 50-pack (50 x 346900001 & 95471-01)
|
| 40 |
346190023
|
Valve seat set
|
| 41 |
460190388
|
Adjusting screw, 5 x 346100009
|
| 42 |
346190295
|
Sealing label 25-pack
|
| 43 |
346190293
|
Locking clip, 10-pack (10 x 346100158)
|
| 44 |
346190294
|
Protective cover, 10 x 346100159
|
| Position | Item number | Description |
| 1 |
98837-51
|
Tally key, 5-pack
|
| 2 |
98837-03
|
Tally key, red
|
| 3 |
34908-52
|
Spirolink Tally key for Incurve-E
|
| 4 |
460190821
|
Upper part assy
|
| 5 |
99876-51
|
Window
|
| 6 |
336190297
|
Screw, 10 x 336900094
|
| 7 |
98660-52
|
Battery Holder for 3xAAA, cordless
|
| 8 |
99295-51
|
Battery cover assy, BAC Spiroguide
|
| 9 |
95188-51
|
Locking clip, 10-pack
|
| 10 |
96069-51
|
Screw, 10 x 96069-01
|
| 11 |
95160-51
|
O-ring, 10 x 95160
|
| 12 |
96201-51
|
O-ring, 10 x 96201
|
.jpg?hash=02/07/2025 22:55:16)

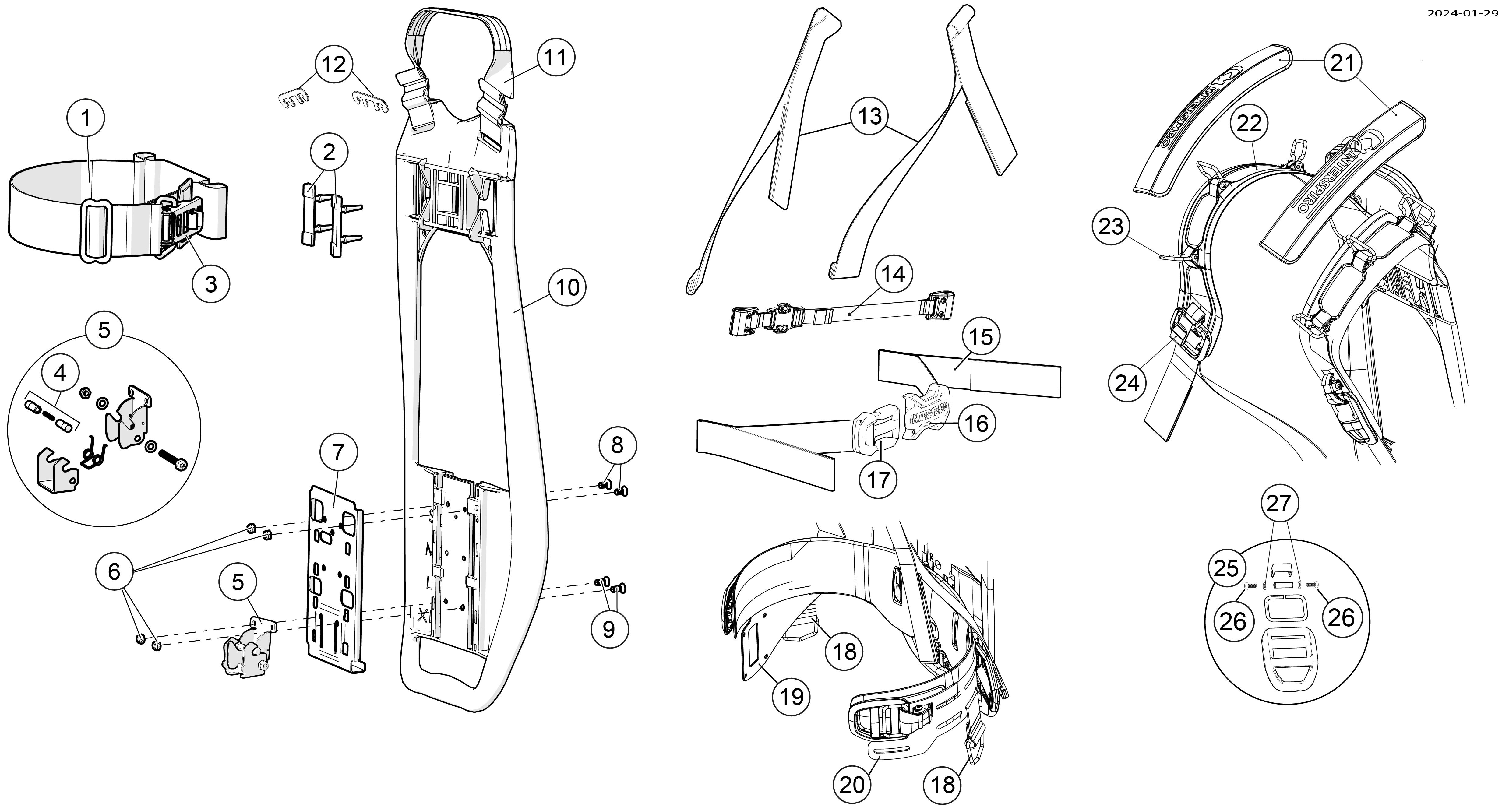

| Position | Item number | Description |
| 1 |
31346-61
|
Cylinder strap including buckle, Incurve
|
| 2 |
460190101
|
Cylinder support 10-pack
|
| 3 |
31343-51
|
Cylinder strap buckle
|
| 4 |
33411-51
|
Regulator rod
|
| 5 |
460200109
|
Quick attachment
|
| 6 |
99799-55
|
Locking Nut M5, 10-pack (10 x 99799-05)
|
| 7 |
31314-51
|
Bracket
|
| 8 |
99709-51
|
Screw, 10 x 99709-01
|
| 9 |
99709-52
|
Screw, 10 x 99709-02
|
| 10 |
31311-51
|
Backplate
|
| 11 |
33464-51
|
Handle, Incurve
|
| 12 |
33466-51
|
Backplate clip, 2 x 33466-01
|
| 13 |
31325-52
|
Adjusting strap, shoulder, 2 pack
|
| 14 |
31356-51
|
Chest strap QS II/SG II/S7
|
| 15 |
31326-51
|
Adjusting strap, hip, QS II, 2 x 31326-01
|
| 16 |
31302-51
|
Waist buckle, female
|
| 17 |
31303-51
|
Waist buckle, male
|
| 18 |
33465-51
|
D-ring, strap, Incurve
|
| 19 |
35222-01
|
Ancillary strap for retractable line
|
| 20 |
35221-01
|
Ancillary strap for tools
|
| 21 |
31379-55
|
Hose covers 2 x 31379-05
|
| 22 |
460200177
|
Shoulder pad, complete
|
| 23 |
34506-51
|
D-ring for hose covers
|
| 24 |
33462-51
|
Face mask holder hook, Incurve
|
| 25 |
460200113
|
Buckle
|
| Position | Item number | Description |
| 26 |
99711-852
|
Screw, 10 x 99711-802
|
| 27 |
460200176
|
Washer, 10 x 944482136
|
