Spare part list










QS II



2024 March

READ BEFORE USE


1. Only holders of a valid Interspiro Service Certificate may carry out
    service and repairs on Interspiro breathing equipment. Unauthorized
    service may result in malfunction and users relying thereon could
    sustain severe respiratory injury or death.


2. When using the spare part list always refer to the equipment's Service
    manual in regard to procedures and handling of the spare parts
    assembly and function.


3. Changes to this document – necessitated by typographical errors,
    inaccuracies of current information or improvements and changes of
    equipment – may be done at any time and without prior notice. Always
    refer to the Interspiro webpage for the latest version.


4. The description defines if the spare part is a multi-pack,
    e. g. "10 x 336100437" indicates that this is a multi-pack
    that consists of 10 pieces of the single component 336100437.
    The single component part number 336100437 can not be ordered,
    it is only used to label parts included in service kits.


5. The service kits contain replacement items used for preventive
    maintenance.


6.  Always refer to the Interspiro webpage for product and document
     updates and important notices.

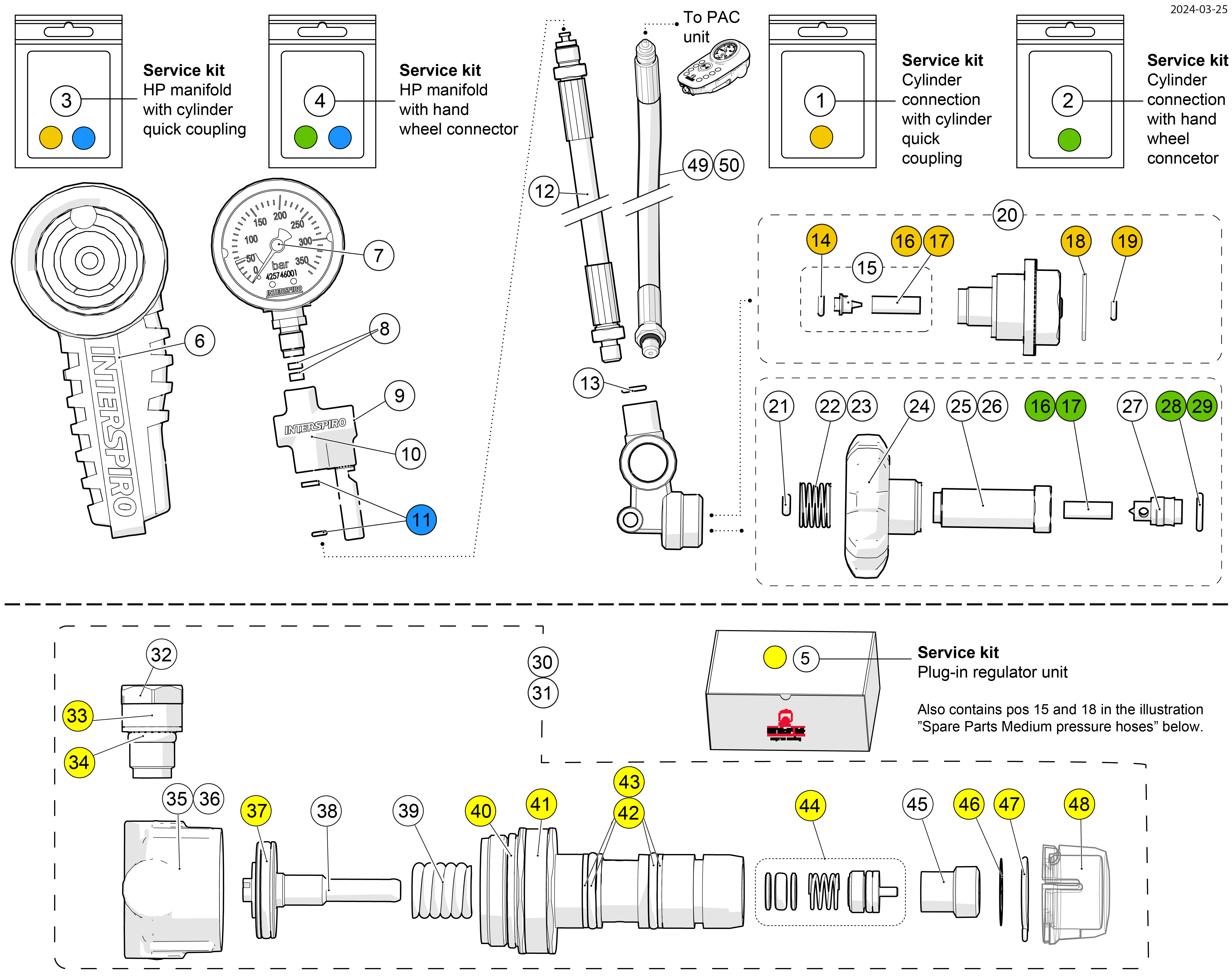

Spare Parts Plug-in regulator






Spare Parts Plug-in regulator
Position Item number Description
1
460200045
Service kit cylinder connection with quick coupling
2
460190711
Service kit cylinder connection
3
460200046
Service kit manifold, Cylinder Quick Coupling
4
460190321
Service kit Manifold
5
460190322
Service kit plug-in pressure regulator
6
32532-51
Pressure gauge cover
7
460190381
Pressure gauge with gasket set
8
336190159
Gasket set, 1 x 335100368 & 1 x 335100369
9
31365-51
Sealing label, whistle,10-pack
10
34850-51
Whistle, 55 Bar Replaces 31030-51
11
460190192
Back-up ring & O-ring, 5-pack (5 x 98568-01 & 012027-01)
12
96529-53
High pressure hose 880 mm
13
336190312
O-ring, 10 x 336900105
14
336890105
O-ring, 10 x 336900183
15
460190059
Filter & holder & O-ring kit, 10-pack
16
346190643
Inlet filter, 10-pack (10 x 212100014)
17
346190643
Inlet filter, 10-pack (10 x 212100014)
18
460200114
O-ring, 10 x OR22,0X1,0-Q60
19
336190437
O-ring, 10 x 336900182
20
30569-51
Regulator part, cylinder quick coupling
21
336190232
O-ring, 10 x 336900044
22
30130-51
Spring, 5 x 30130-01
23
30130-52
Spring, long, 5 x 30130-02
24
98520-51
Hand wheel
25
460190383
Connection nipple

Spare Parts Plug-in regulator
Position Item number Description
26
460190384
Connection nipple long
27
460190382
Sealing nipple
28
336190272
O-ring, 10 x 331100767
29
460190237
O-ring, 100 x 331100767
30
460190141
Pressure regulator, spare part
31
96317-51
Plug in regulator, 3-port
32
460190387
Relief valve
33
346190053
Protective band, 10-pack (10 x 346100066)
34
336190311
O-ring, 10 x 944610206
35
88193-56
Regulator cover Replaces 460190389
36
88193-54
Regulator cover 3-port 3/8 inch 90 degree + back
37
346190022
O-ring, 10 x 346900002
38
460190386
Piston
39
346190026
Spring, 5 x 346100005
40
346190024
O-ring, 10 x 346900004
41
460190201
Protective band, 5 x 95472
42
460190198
O-ring & back-up ring, 10 pack (10 x 346900001 & 95471-01)
43
460190199
O-ring & back-up ring, 50-pack (50 x 346900001 & 95471-01)
44
346190023
Valve seat set
45
460190388
Adjusting screw, 5 x 346100009
46
346190295
Sealing label 25-pack
47
346190293
Locking clip, 10-pack (10 x 346100158)
48
346190294
Protective cover, 10 x 346100159

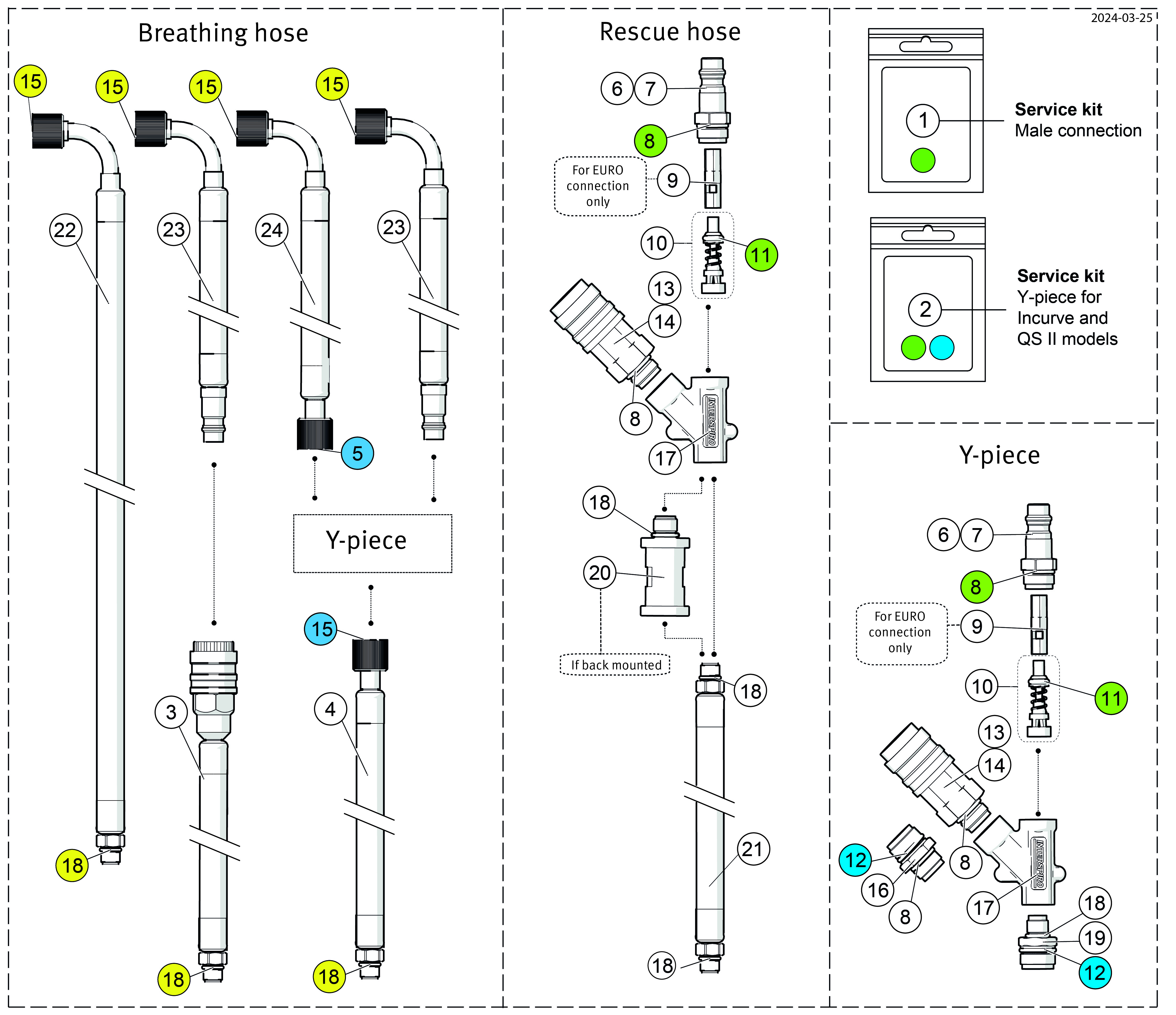

Spare Parts Medium pressure hoses






Spare Parts Medium pressure hoses
Position Item number Description
1
460200153
Service kit extra air connection, male
2
460190414
Service kit Y-piece, QS II & Incurve and T-piece, Spiromatic 90U
3
460190361
Supply hose 0,82 m, Replaces 346190143
4
460190363
Supply hose, 0.82 M
5
336190236
O-ring, 10 x 944610205
6
460190370
Quick coupling male Euro
7
96531-51
Quick coupling, Interspiro, male Replaces 460190485
8
346190069
O-ring, 12.1x1.6, 10 x 944610210
9
460190371
Valve tube Replaces 346100097
10
346190223
Non-return valve
11
460190369
Cone with o-ring
12
336190228
O-ring, 12.42x1.78, NBR, 10 x 336900007
13
95244-51
Quick coupling female Euro
14
95803-51
Quick coupling, Interspiro Female
15
336190237
O-ring, 10 x 336900099
16
95557-51
Nipple
17
95241-51
Extra air manifold
18
336190311
O-ring, 10 x 944610206
19
95898-51
Nipple
20
99368-51
Adapter
21
460190041
Medium pressure hose for Y-piece
22
460190236
Breathing hose L=1.35 m
23
460190362
Breathing hose, Euro male, 0.55 M
24
460190364
Breathing hose, union nut, L=0.55 m

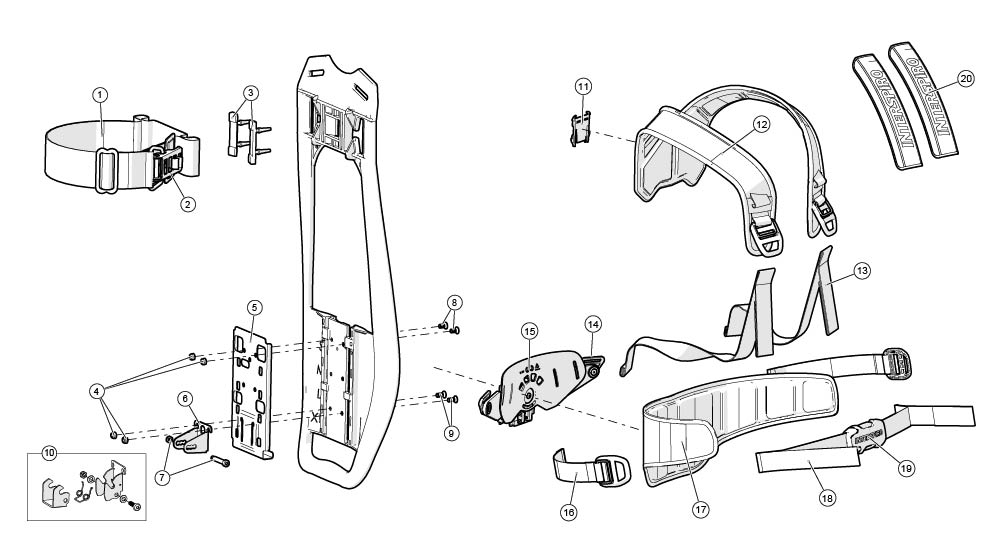

Spare Parts QS II harness






Spare Parts QS II harness
Position Item number Description
1
31346-51
Cylinder strap including buckle, QS II
2
31343-51
Cylinder strap buckle
3
460190101
Cylinder support 10-pack
4
99799-55
Locking Nut M5, 10-pack (10 x 99799-05)
5
31314-51
Bracket
6
31319-51
Support Bracket
7
31322-51
Screw and nut
8
99709-51
Screw, 10 x 99709-01
9
99709-52
Screw, 10 x 99709-02
10
460200108
Quick attachment regulator
11
32003-51
Locking plate, shoulder pad
12
31324-52
Shoulder pad (for buttons)
13
31325-52
Adjusting strap, shoulder, 2 pack
14
460200067
Pivot arms QS II
15
31310-51
Hip belt attachment QS II
16
31377-51
Hip webbing with buckle QS II, 2-pack
17
31369-51
Hip belt (textile parts) QS II
18
31326-51
Adjusting strap, hip, QS II, 2 x 31326-01
19
460200066
Waist buckle complete QS II
20
31378-71
Hose cover with press buttons
