Spare part list
|
Rescue pack
|
|
2025 October
|
READ BEFORE USE
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

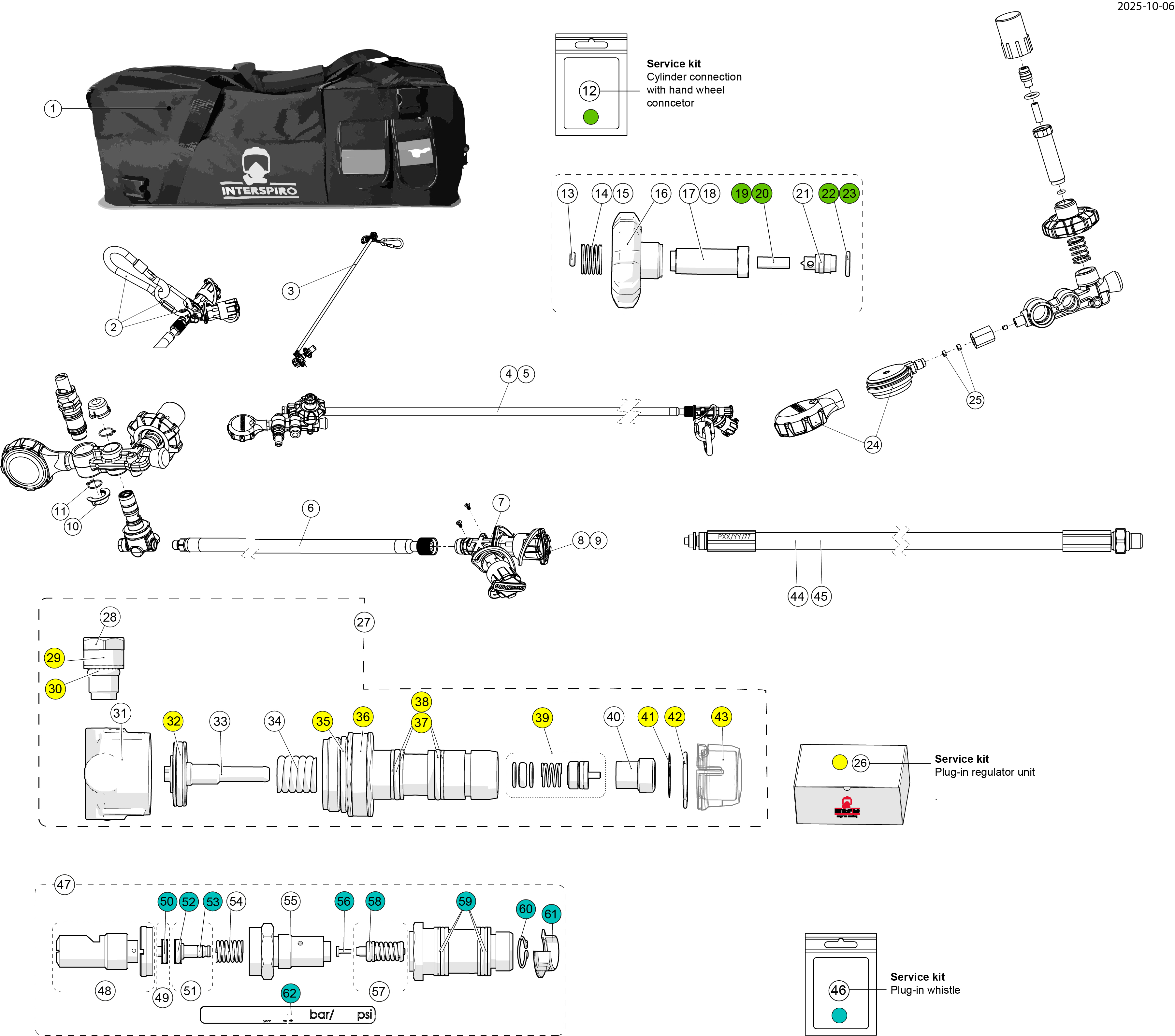

| Position | Item number | Description |
| 1 |
888888806
|
Bag model RIT-Bag bw/yellow
|
| 2 |
35739-01
|
Carbiner hook for Rescue bag
|
| 3 |
30407-05
|
EASE system with whistle, standard regulator, 2 x Euro female
|
| 4 |
30407-03
|
EASE system with whistle, regulator P+
|
| 5 |
30407-06
|
EASE system with whistle, Regulator P+, Interspiro coupling
|
| 6 |
30299-51
|
Medium pressure hose, 3 M
|
| 7 |
31257-59
|
Extra air connection, 2 x Euro female
|
| 8 |
31257-56
|
Y-piece with Euro male/female
|
| 9 |
31257-52
|
Y-piece with IS male/female
|
| 10 |
460190299
|
Retaining ring, 10 x 346100208
|
| 11 |
346190293
|
Locking clip, 10-pack (10 x 346100158)
|
| 12 |
460190711
|
Service kit cylinder connection
|
| 13 |
336190232
|
O-ring, 10 x 336900044
|
| 14 |
30130-51
|
Spring, 5 x 30130-01
|
| 15 |
30130-52
|
Spring, long, 5 x 30130-02
|
| 16 |
98520-51
|
Hand wheel
|
| 17 |
460190383
|
Connection nipple
|
| 18 |
460190384
|
Connection nipple long
|
| 19 |
346190643
|
Inlet filter, 10-pack (10 x 212100014)
|
| 20 |
346190644
|
Inlet Filter, 100-pack (100 x 212100014)
|
| 21 |
460190382
|
Sealing nipple
|
| 22 |
336190272
|
O-ring, 10 x 331100767
|
| 23 |
460190237
|
O-ring, 100 x 331100767
|
| 24 |
99265-51
|
Pressure gauge, diving, bar
|
| 25 |
336190159
|
Gasket set, 1 x 335100368 & 1 x 335100369
|
| Position | Item number | Description |
| 26 |
460190322
|
Service kit plug-in pressure regulator
|
| 27 |
98931-01
|
Pressure regulator P+
|
| 28 |
460190387
|
Relief valve
|
| 29 |
346190053
|
Protective band, 10-pack (10 x 346100066)
|
| 30 |
336190311
|
O-ring, 10 x 944610206
|
| 31 |
88193-56
|
Regulator cover Replaces 460190389
|
| 32 |
346190022
|
O-ring, 10 x 346900002
|
| 33 |
460190386
|
Piston
|
| 34 |
346190026
|
Spring, 5 x 346100005
|
| 35 |
346190024
|
O-ring, 10 x 346900004
|
| 36 |
460190201
|
Protective band, 5 x 95472
|
| 37 |
460190198
|
O-ring & back-up ring, 10 pack (10 x 346900001 & 95471-01)
|
| 38 |
460190199
|
O-ring & back-up ring, 50-pack (50 x 346900001 & 95471-01)
|
| 39 |
346190023
|
Valve seat set
|
| 40 |
460190388
|
Adjusting screw, 5 x 346100009
|
| 41 |
346190295
|
Sealing label 25-pack
|
| 42 |
346190293
|
Locking clip, 10-pack (10 x 346100158)
|
| 43 |
346190294
|
Protective cover, 10 x 346100159
|
| 44 |
35588-51
|
High pressure hose for PAC, 920 mm
|
| 45 |
35588-52
|
High pressure hose for PAC, 970 mm
|
| 46 |
460190323
|
Service kit Plug-in whistle
|
| 47 |
460190143
|
Whistle insert 55 bar - Replaces 346190404
|
| 48 |
346190221
|
Whistle assy
|
| 49 |
346190220
|
Nozzle with o-ring
|
| 50 |
346190251
|
O-ring, 7.5 x 1.3, 10 x 346900016
|
| Position | Item number | Description |
| 51 |
346190219
|
Regulating piston assy
|
| 52 |
346190249
|
O-ring, 7.1 x 1.6, 10 x 346900014
|
| 53 |
460190269
|
O-ring, 2.6 x 1.3, 10 x 346900015
|
| 54 |
346190218
|
Spring, 5 x 346100082
|
| 55 |
346190248
|
Whistle cylinder
|
| 56 |
346190217
|
Sealing cone 10-pack 10 x 346100081
|
| 57 |
346190216
|
Piston assy
|
| 58 |
336190240
|
O-ring, 5 x 331100562
|
| 59 |
460190200
|
O-ring & back-up rings, 10-pack (10 x 346900017 & 95473-01)
|
| 60 |
346190293
|
Locking clip, 10-pack (10 x 346100158)
|
| 61 |
460190299
|
Retaining ring, 10 x 346100208
|
| 62 |
346190296
|
Sealing label, 20-pack (20 x 97081-01)
|
