Spiromatic 90U
|
2024 September
|
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

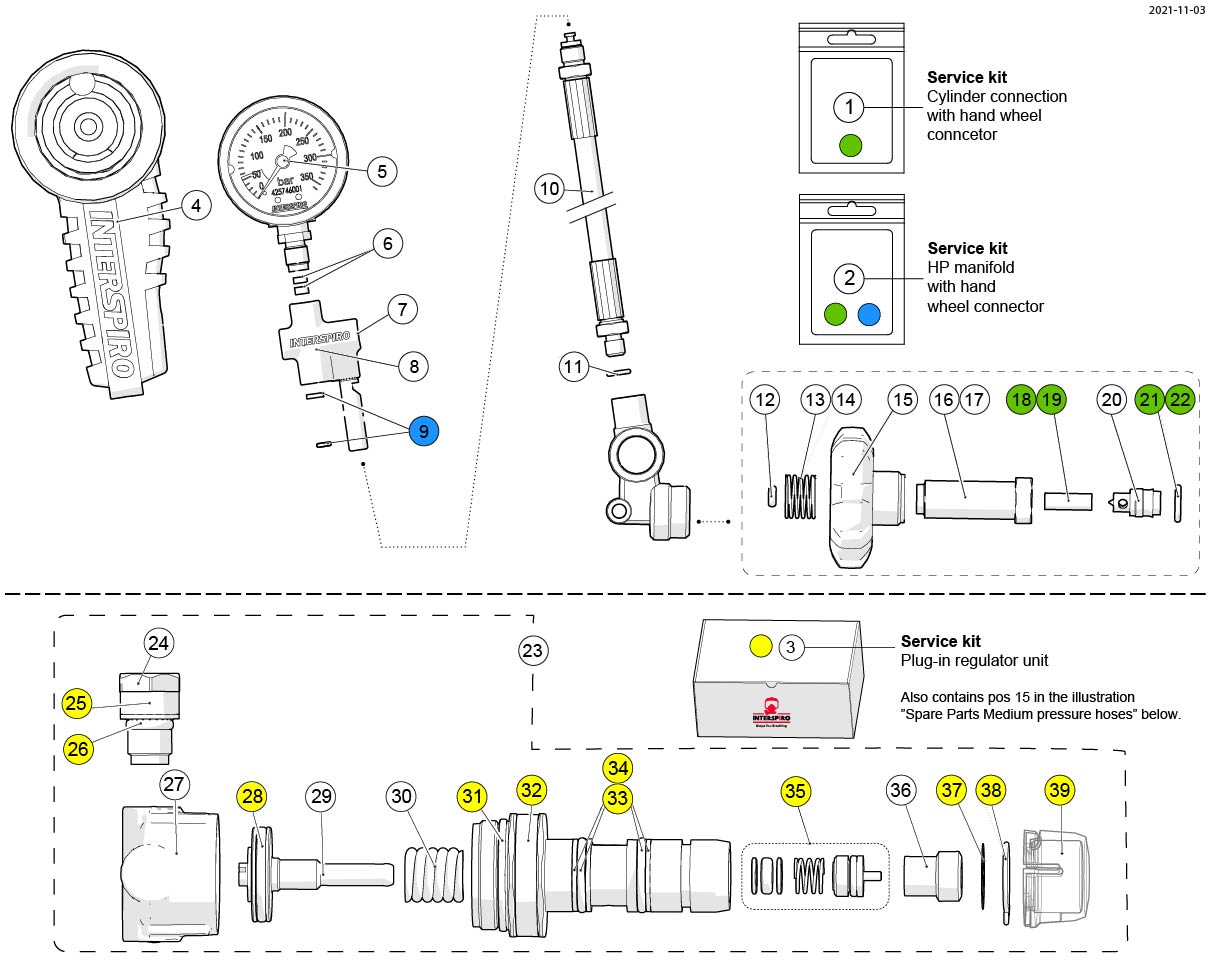

Position | Item number | Description |
1 |
460190711
|
Service kit cylinder connection
|
2 |
460190321
|
Service kit Manifold
|
3 |
460190322
|
Service kit plug-in pressure regulator
|
4 |
32532-51
|
Pressure gauge cover
|
5 |
460190381
|
Pressure gauge with gasket set
|
6 |
336190159
|
Gasket set, 1 x 335100368 & 1 x 335100369
|
7 |
31365-51
|
Sealing label, whistle,10-pack
|
8 |
34850-51
|
Whistle, 55 Bar Replaces 31030-51
|
9 |
460190192
|
Back-up ring & O-ring, 5-pack (5 x 98568-01 & 012027-01)
|
10 |
96529-51
|
High pressure hose 920 mm
|
11 |
336190312
|
O-ring, 10 x 336900105
|
12 |
336190232
|
O-ring, 10 x 336900044
|
13 |
30130-51
|
Spring, 5 x 30130-01
|
14 |
30130-52
|
Spring, long, 5 x 30130-02
|
15 |
98520-51
|
Hand wheel
|
16 |
460190383
|
Connection nipple
|
17 |
460190384
|
Connection nipple long
|
18 |
346190643
|
Inlet filter, 10-pack (10 x 212100014)
|
19 |
346190644
|
Inlet Filter, 100-pack (100 x 212100014)
|
20 |
460190382
|
Sealing nipple
|
21 |
336190272
|
O-ring, 10 x 331100767
|
22 |
460190237
|
O-ring, 100 x 331100767
|
23 |
460190141
|
Pressure regulator, spare part
|
24 |
460190387
|
Relief valve
|
25 |
346190053
|
Protective band, 10-pack (10 x 346100066)
|
Position | Item number | Description |
26 |
336190311
|
O-ring, 10 x 944610206
|
27 |
88193-56
|
Regulator cover Replaces 460190389
|
28 |
346190022
|
O-ring, 10 x 346900002
|
29 |
460190386
|
Piston
|
30 |
346190026
|
Spring, 5 x 346100005
|
31 |
346190024
|
O-ring, 10 x 346900004
|
32 |
460190201
|
Protective band, 5 x 95472
|
33 |
460190198
|
O-ring & back-up ring, 10 pack (10 x 346900001 & 95471-01)
|
34 |
460190199
|
O-ring & back-up ring, 50-pack (50 x 346900001 & 95471-01)
|
35 |
346190023
|
Valve seat set
|
36 |
460190388
|
Adjusting screw, 5 x 346100009
|
37 |
346190295
|
Sealing label 25-pack
|
38 |
346190293
|
Locking clip, 10-pack (10 x 346100158)
|
39 |
346190294
|
Protective cover, 10 x 346100159
|

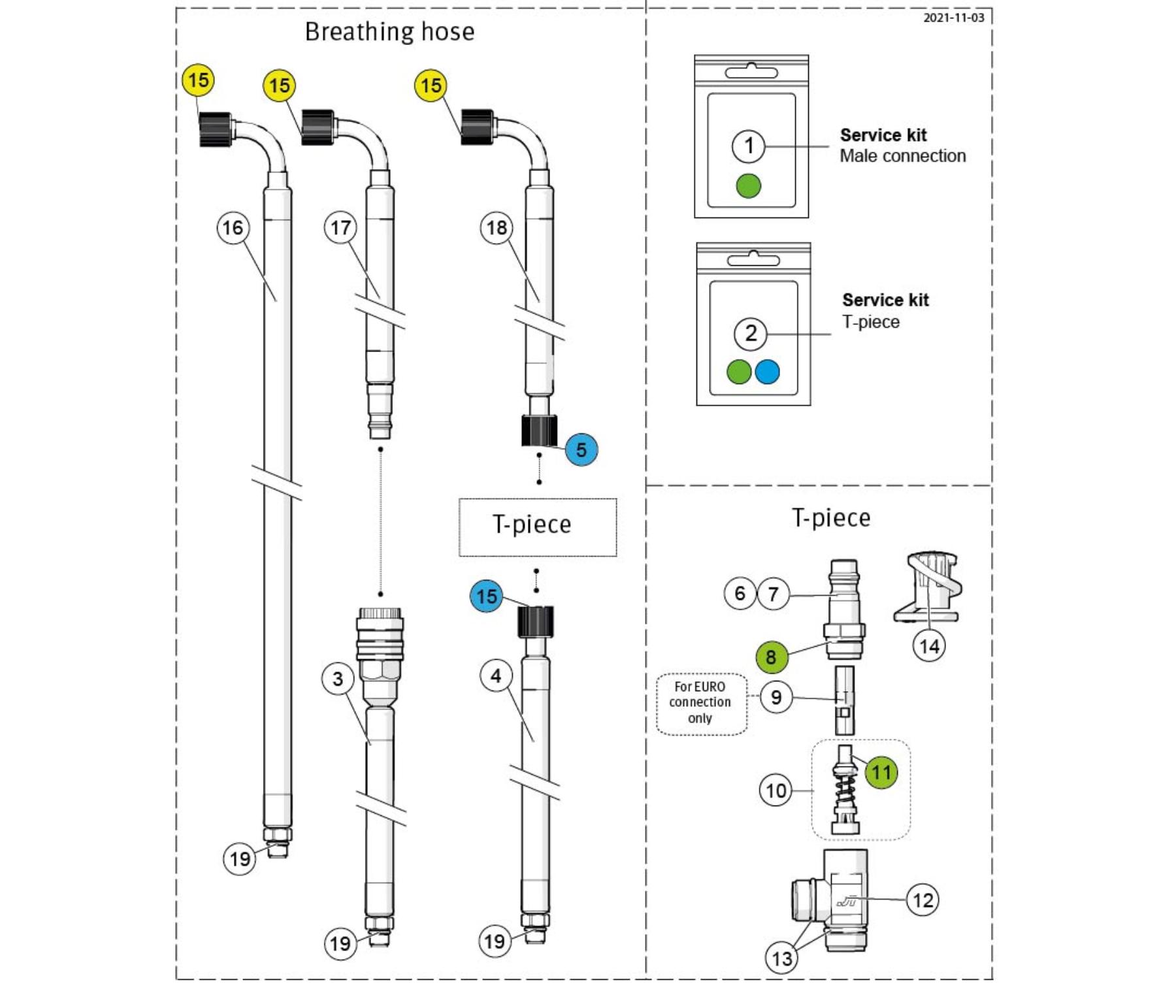

Position | Item number | Description |
1 |
460200153
|
Service kit extra air connection, male
|
2 |
460190414
|
Service kit Y-piece, QS II & Incurve and T-piece, Spiromatic 90U
|
3 |
460190361
|
Supply hose 0,82 m, Replaces 346190143
|
4 |
460190363
|
Supply hose, 0.82 M
|
5 |
336190236
|
O-ring, 10 x 944610205
|
6 |
460190370
|
Quick coupling male Euro
|
7 |
96531-51
|
Quick coupling, Interspiro, male Replaces 460190485
|
8 |
346190069
|
O-ring, 12.1x1.6, 10 x 944610210
|
9 |
460190371
|
Valve tube Replaces 346100097
|
10 |
346190223
|
Non-return valve
|
11 |
460190369
|
Cone with o-ring
|
12 |
460190264
|
T-manifold Replaces 346100028
|
13 |
336190228
|
O-ring, 12.42x1.78, NBR, 10 x 336900007
|
14 |
31391-51
|
Dust cover, small, 10-pack
|
15 |
336190237
|
O-ring, 10 x 336900099
|
16 |
460190236
|
Breathing hose L=1.35 m
|
17 |
460190362
|
Breathing hose, Euro male, 0.55 M
|
18 |
460190364
|
Breathing hose, union nut, L=0.55 m
|
19 |
336190311
|
O-ring, 10 x 944610206
|
