Spiromatic regulator with reserve air warning
|
2024 November
|
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

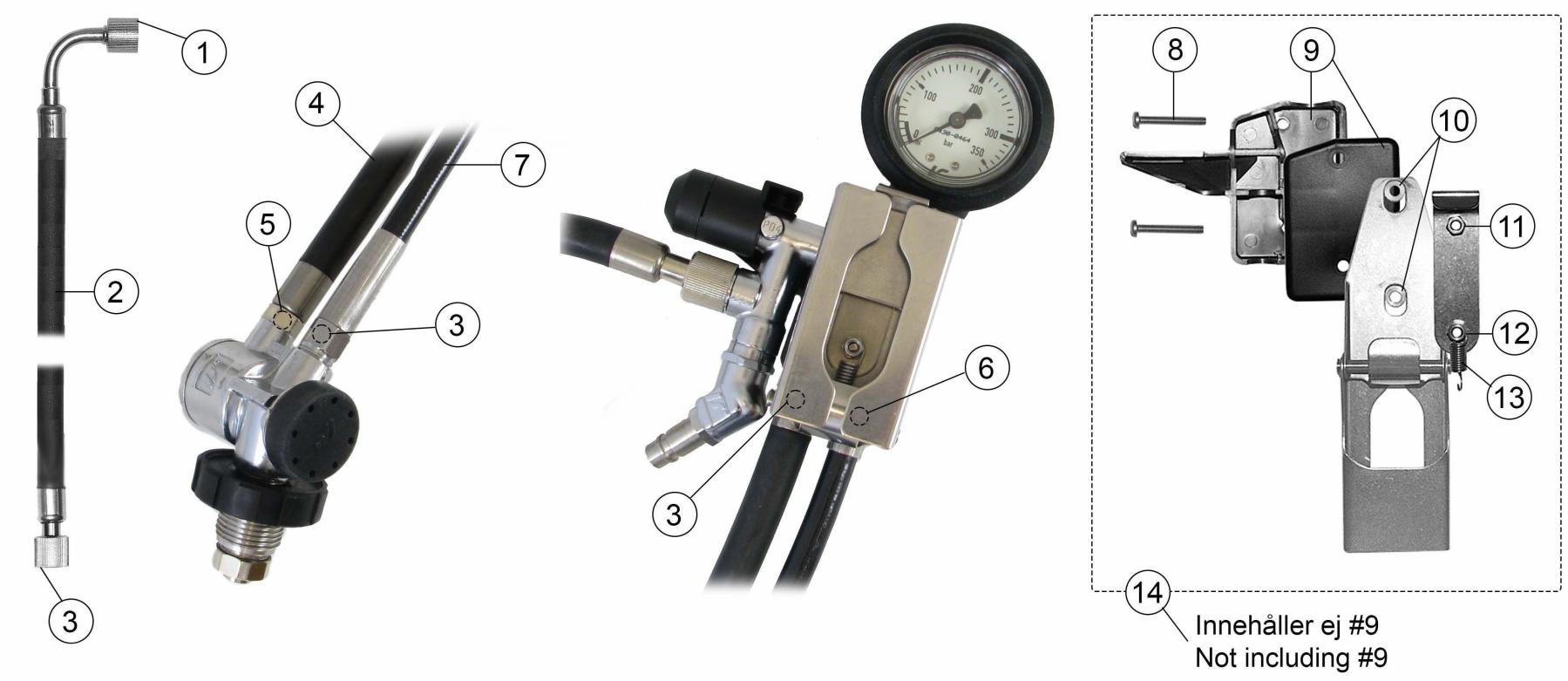

Position | Item number | Description |
1 |
336190237
|
O-ring, 10 x 336900099
|
2 |
460190364
|
Breathing hose, union nut, L=0.55 m
|
3 |
336190236
|
O-ring, 10 x 944610205
|
4 |
336190288
|
Supply hose
|
5 |
336190311
|
O-ring, 10 x 944610206
|
6 |
336190235
|
O-ring, 10 x 944610201
|
7 |
336190265
|
High pressure hose
|
8 |
336190590
|
Screw, 10 x 336900262
|
9 |
460190427
|
Cover (front and back) Replaces 336100416, 417
|
10 |
336190639
|
Distance tube 10-pack Replaces 336900263
|
11 |
336190645
|
Nut 10-pack Replaces 941680312
|
12 |
460190218
|
Nut 10-pack Replaces 336100827
|
13 |
460190432
|
Spring, 5 x 336100828
|
14 |
336190768
|
Holder for warning device
|

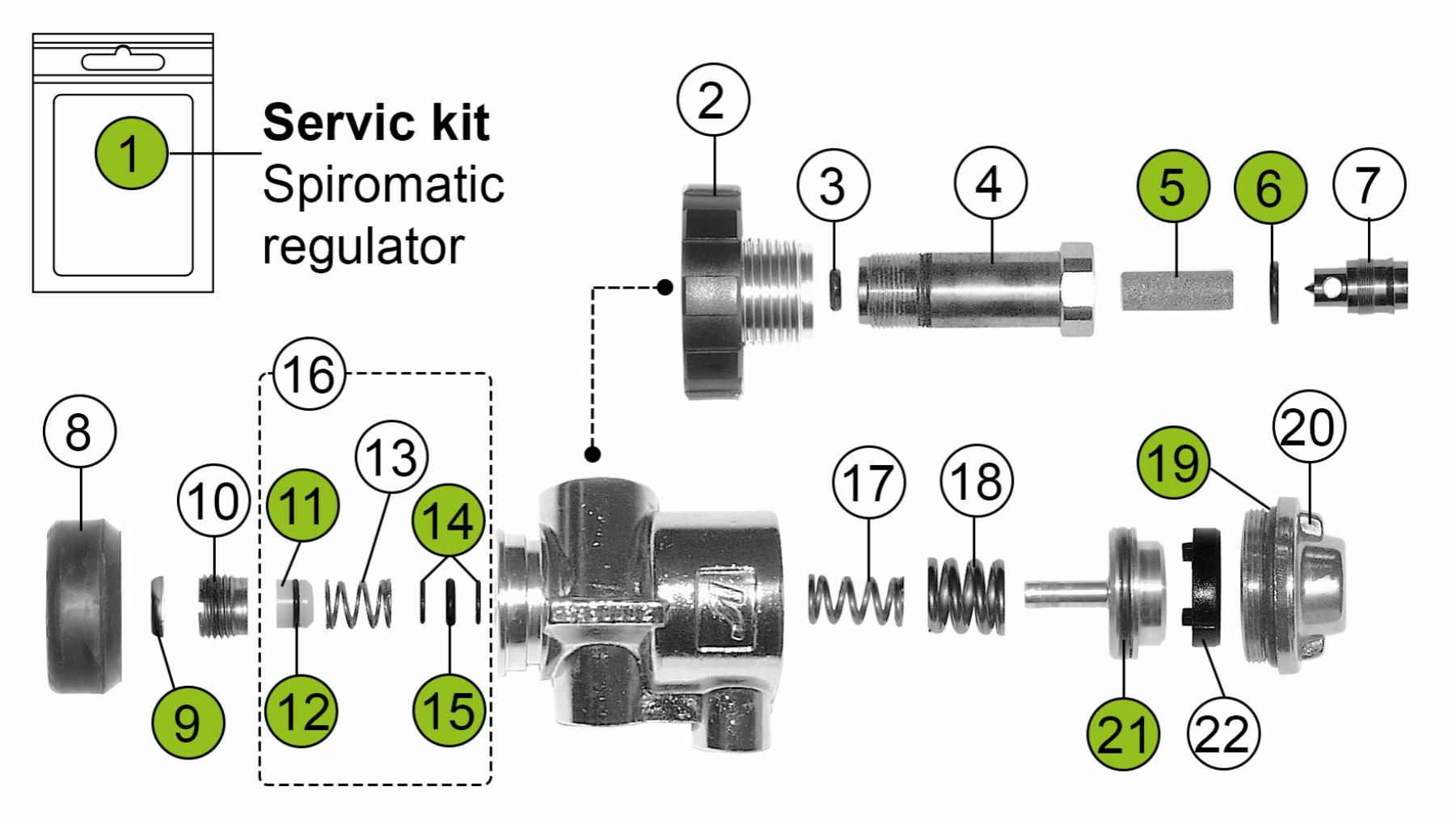

Position | Item number | Description |
1 |
460190318
|
Service kit Spiromatic regulator
|
2 |
460190385
|
Hand wheel Connector Replaces 331100398
|
3 |
336190232
|
O-ring, 10 x 336900044
|
4 |
460190383
|
Connection nipple
|
5 |
346190643
|
Inlet filter, 10-pack (10 x 212100014)
|
6 |
336190272
|
O-ring, 10 x 331100767
|
7 |
460190382
|
Sealing nipple
|
8 |
460190476
|
Dust cap 5-pack (5 x 336100530)
|
9 |
336190256
|
Sealing plate, 25-pack (25 x 336100035)
|
10 |
460190425
|
Adjustment screw, 5 x 336100127
|
11 |
96087
|
Regulator seat 10-pack replaces: 336 100 126
|
12 |
336190231
|
O-ring, 10 x 336900043
|
13 |
346190028
|
Spring, 5 x 336100280
|
14 |
336190637
|
Supporting washer, 10 x 336100131
|
15 |
336190233
|
O-ring, 10 x 336900045
|
16 |
460190648
|
Valve seat set MKII & P+ regulator
|
17 |
460190422
|
Regulating spring, 5-pack (5 x 336100422)
|
18 |
460190484
|
Spring, 5 x 336100048
|
19 |
336190229
|
O-ring, 10 x 336900041
|
20 |
460190426
|
Cover Replaces 336100134
|
21 |
336190230
|
O-ring, 10 x 336900042
|
22 |
460190424
|
Stop ring, 5-pack (5 x 336100049)
|

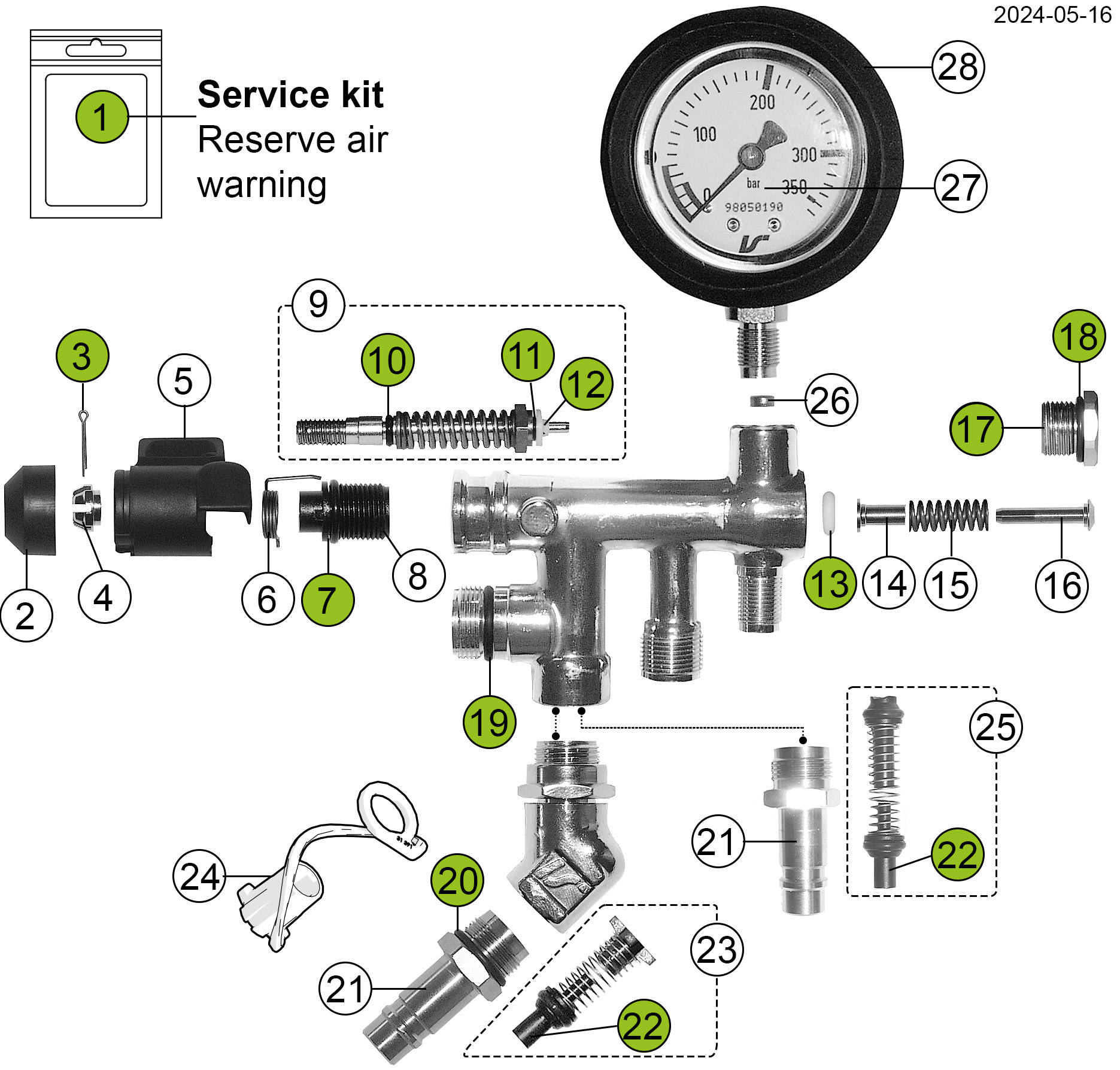

Position | Item number | Description |
1 |
460190319
|
Service kit reserve air warning
|
2 |
460190421
|
Cap, 10 pack (10 x 336100604)
|
3 |
336190380
|
Split pin, 10-pack (10 x 336900104)
|
4 |
460190441
|
Nut, 5 pack (5 x 336100606)
|
5 |
460190433
|
Handle, 5 pack (5 x 336100603)
|
6 |
460190430
|
Torsion spring, 5 pack (5 x 336100605)
|
7 |
336190381
|
O-ring, 10 x 336900106
|
8 |
460190428
|
Nipple, 5 pack (5 x 336100407)
|
9 |
460190429
|
Valve stem assembly
|
10 |
336190382
|
O-ring, 10 x 336900103
|
11 |
336190595
|
O-ring, 10 x 336900165
|
12 |
336190383
|
Valve disc, 5-pack (5 x 336100412)
|
13 |
336190240
|
O-ring, 5 x 331100562
|
14 |
460190439
|
Guide bushing, 5 pack (5 x 336100402)
|
15 |
460190437
|
Spring, 5 x 336100401
|
16 |
460190431
|
Piston, 5 pack (5 x 336100400)
|
17 |
460190442
|
Plug, 5 pack (5 x 336100403)
|
18 |
336190384
|
O-ring, 10 x 944610209
|
19 |
336190228
|
O-ring, 12.42x1.78, NBR, 10 x 336900007
|
20 |
346190069
|
O-ring, 12.1x1.6, 10 x 944610210
|
21 |
96531-51
|
Quick coupling, Interspiro, male Replaces 460190485
|
22 |
460190369
|
Cone with o-ring
|
23 |
460190216
|
Non-return valve
|
24 |
31391-51
|
Dust cover, small, 10-pack
|
25 |
346190223
|
Non-return valve
|
Position | Item number | Description |
26 |
336190159
|
Gasket set, 1 x 335100368 & 1 x 335100369
|
27 |
460190381
|
Pressure gauge with gasket set
|
28 |
30984-51
|
Pressure gauge cover
|
