Spare part list










Spiromatic 90U



2024 April

READ BEFORE USE


1. Only holders of a valid Interspiro Service Certificate may carry out
    service and repairs on Interspiro breathing equipment. Unauthorized
    service may result in malfunction and users relying thereon could
    sustain severe respiratory injury or death.


2. When using the spare part list always refer to the equipment's Service
    manual in regard to procedures and handling of the spare parts
    assembly and function.


3. Changes to this document – necessitated by typographical errors,
    inaccuracies of current information or improvements and changes of
    equipment – may be done at any time and without prior notice. Always
    refer to the Interspiro webpage for the latest version.


4. The description defines if the spare part is a multi-pack,
    e. g. "10 x 336100437" indicates that this is a multi-pack
    that consists of 10 pieces of the single component 336100437.
    The single component part number 336100437 can not be ordered,
    it is only used to label parts included in service kits.


5. The service kits contain replacement items used for preventive
    maintenance.


6.  Always refer to the Interspiro webpage for product and document
     updates and important notices.


Spare Parts 90U regulator unit

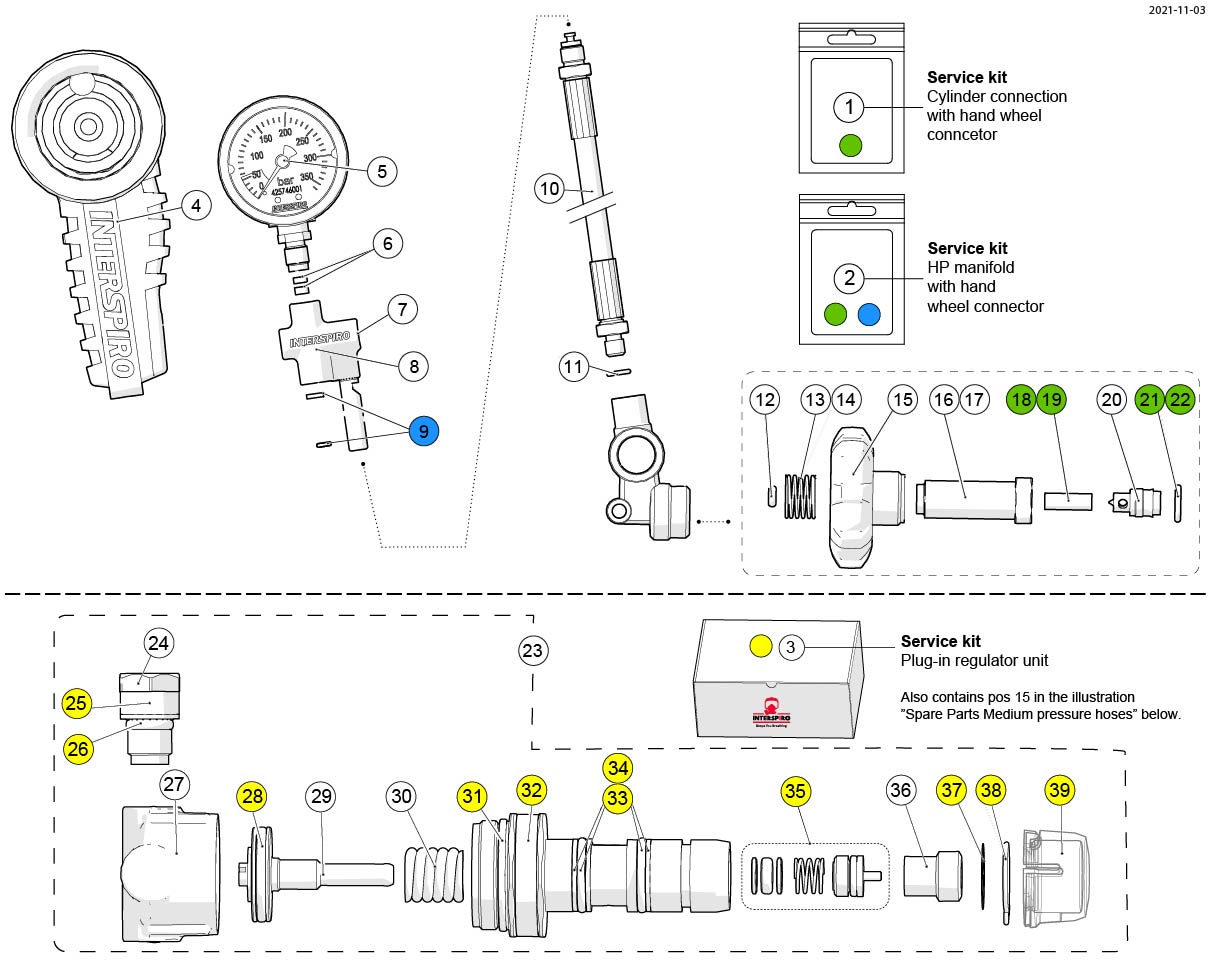

Spare Parts 90U regulator unit
Position Item number Description
1
460190711
Service kit cylinder connection
2
460190321
Service kit Manifold
3
460190322
Service kit plug-in pressure regulator
4
32532-51
Pressure gauge cover
5
460190381
Pressure gauge with gasket set
6
336190159
Gasket set, 1 x 335100368 & 1 x 335100369
7
31365-51
Sealing label, whistle,10-pack
8
34850-51
Whistle, 55 Bar Replaces 31030-51
9
460190192
Back-up ring & O-ring, 5-pack (5 x 98568-01 & 012027-01)
10
96529-51
High pressure hose 920 mm
11
336190312
O-ring, 10 x 336900105
12
336190232
O-ring, 10 x 336900044
13
30130-51
Spring, 5 x 30130-01
14
30130-52
Spring, long, 5 x 30130-02
15
98520-51
Hand wheel
16
460190383
Connection nipple
17
460190384
Connection nipple long
18
346190643
Inlet filter, 10-pack (10 x 212100014)
19
346190644
Inlet Filter, 100-pack (100 x 212100014)
20
460190382
Sealing nipple
21
336190272
O-ring, 10 x 331100767
22
460190237
O-ring, 100 x 331100767
23
460190141
Pressure regulator, spare part
24
460190387
Relief valve
25
346190053
Protective band, 10-pack (10 x 346100066)

Spare Parts 90U regulator unit
Position Item number Description
26
336190311
O-ring, 10 x 944610206
27
88193-56
Regulator cover Replaces 460190389
28
346190022
O-ring, 10 x 346900002
29
460190386
Piston
30
346190026
Spring, 5 x 346100005
31
346190024
O-ring, 10 x 346900004
32
460190201
Protective band, 5 x 95472
33
460190198
O-ring & back-up ring, 10 pack (10 x 346900001 & 95471-01)
34
460190199
O-ring & back-up ring, 50-pack (50 x 346900001 & 95471-01)
35
346190023
Valve seat set
36
460190388
Adjusting screw, 5 x 346100009
37
346190295
Sealing label 25-pack
38
346190293
Locking clip, 10-pack (10 x 346100158)
39
346190294
Protective cover, 10 x 346100159

Spare Parts 90U medium pressure hoses

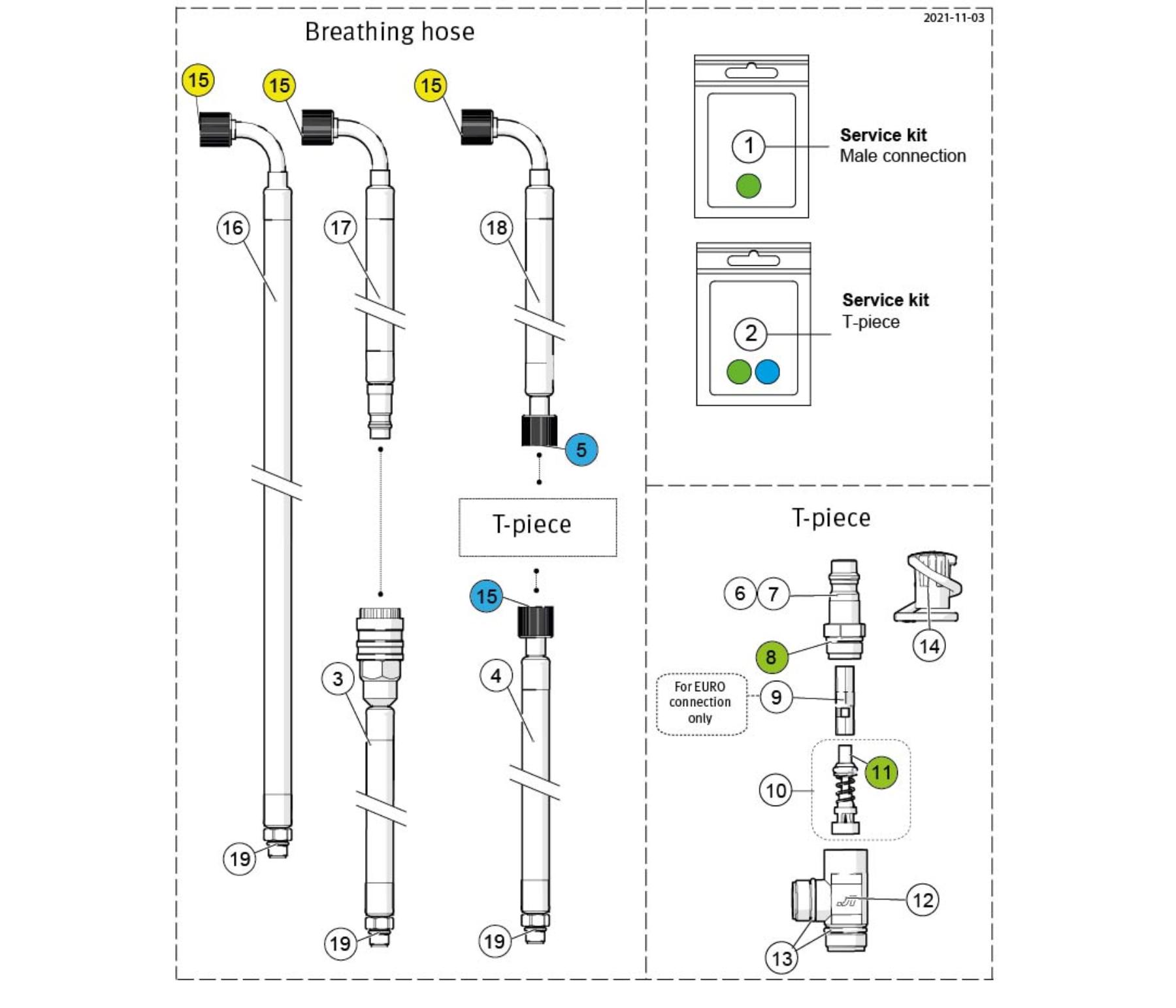

Spare Parts 90U medium pressure hoses
Position Item number Description
1
460200153
Service kit extra air connection, male
2
460190414
Service kit Y-piece, QS II & Incurve and T-piece, Spiromatic 90U
3
460190361
Supply hose 0,82 m, Replaces 346190143
4
460190363
Supply hose, 0.82 M
5
336190236
O-ring, 10 x 944610205
6
460190370
Quick coupling male Euro
7
96531-51
Quick coupling, Interspiro, male Replaces 460190485
8
346190069
O-ring, 12.1x1.6, 10 x 944610210
9
460190371
Valve tube Replaces 346100097
10
346190223
Non-return valve
11
460190369
Cone with o-ring
12
460190264
T-manifold Replaces 346100028
13
336190228
O-ring, 12.42x1.78, NBR, 10 x 336900007
14
31391-51
Dust cover, small, 10-pack
15
336190237
O-ring, 10 x 336900099
16
460190236
Breathing hose L=1.35 m
17
460190362
Breathing hose, Euro male, 0.55 M
18
460190364
Breathing hose, union nut, L=0.55 m
19
336190311
O-ring, 10 x 944610206
