Spare part list










Spiroline HP1



2025 September

READ BEFORE USE


1. Only holders of a valid Interspiro Service Certificate may carry out
    service and repairs on Interspiro breathing equipment. Unauthorized
    service may result in malfunction and users relying thereon could
    sustain severe respiratory injury or death.


2. When using the spare part list always refer to the equipment's Service
    manual in regard to procedures and handling of the spare parts
    assembly and function.


3. Changes to this document – necessitated by typographical errors,
    inaccuracies of current information or improvements and changes of
    equipment – may be done at any time and without prior notice. Always
    refer to the Interspiro webpage for the latest version.


4. The description defines if the spare part is a multi-pack,
    e. g. "10 x 336100437" indicates that this is a multi-pack
    that consists of 10 pieces of the single component 336100437.
    The single component part number 336100437 can not be ordered,
    it is only used to label parts included in service kits.


5. The service kits contain replacement items used for preventive
    maintenance.


6.  Always refer to the Interspiro webpage for product and document
     updates and important notices.

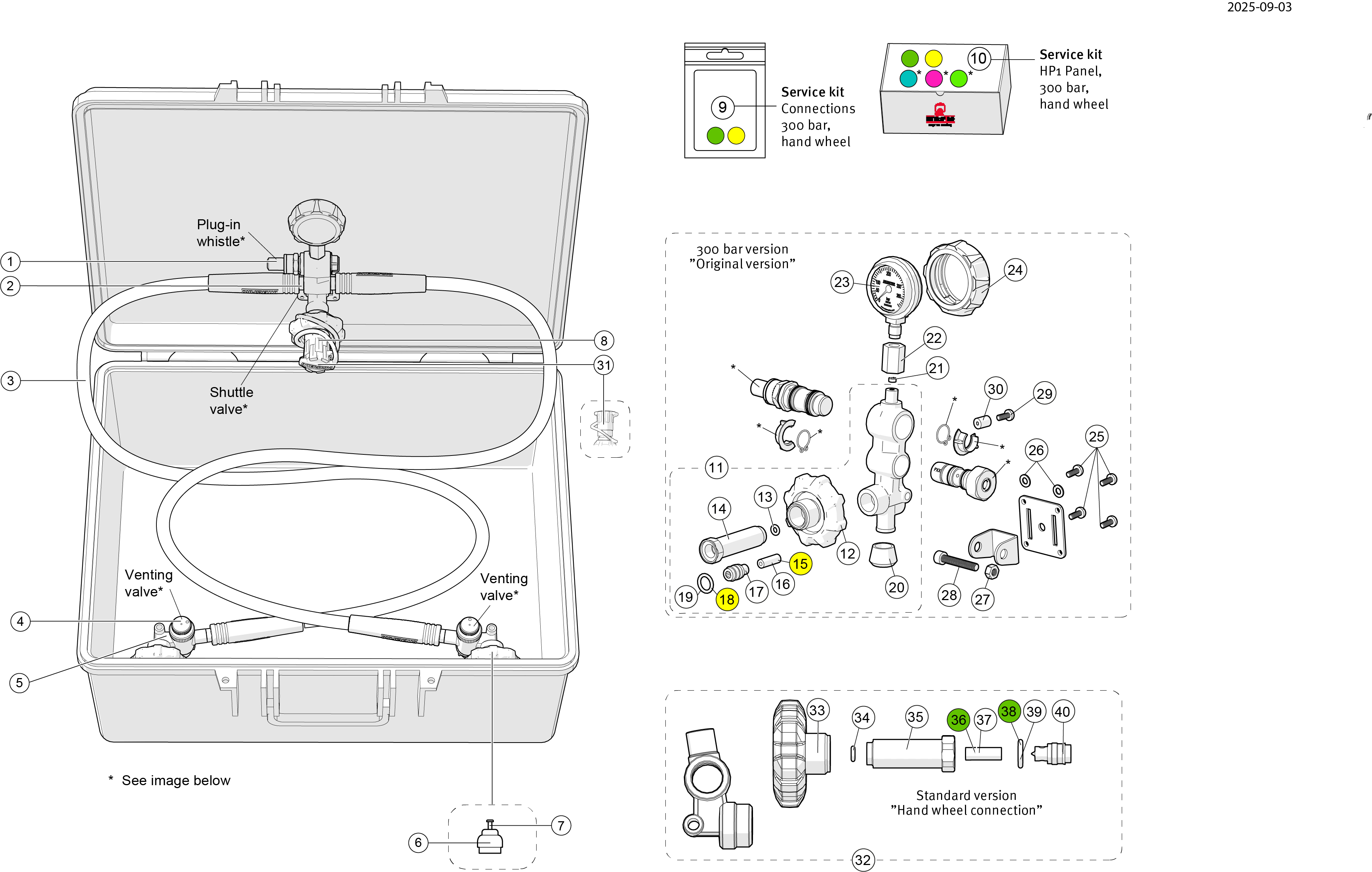

Spare Parts Spiroline HP1 Panel






Spare Parts Spiroline HP1 Panel
Position Item number Description
1
460190143
Whistle insert 55 bar - Replaces 346190404
2
460190709
Shuttle Insert
3
96116-51
Supply hose DP1, 300 bar, 1 M
4
460190916
Venting valve, 300 bar
5
96786-51
Connection Manifold R5/8
6
96718-51
Plug R 5/8,Parking
7
96723-51
Screw, M5x12, 10 x 96723-01
8
95198-51
Protective plug R 5/8", brass
9
460190701
Service kit DP1 connections, 300 bar, hand wheel version
10
460190702
Service kit Divator DP1 panel, 300 bar, hand wheel version
11
346190329
Manifold block
12
460190386
Piston
13
336190232
O-ring, 10 x 336900044
14
460190383
Connection nipple
15
346190643
Inlet filter, 10-pack (10 x 212100014)
16
346190644
Inlet Filter, 100-pack (100 x 212100014)
17
460190382
Sealing nipple
18
336190272
O-ring, 10 x 331100767
19
460190237
O-ring, 100 x 331100767
20
346190230
Cylinder support 5-pack 5 x 336100081
21
336190159
Gasket set, 1 x 335100368 & 1 x 335100369
22
336100832
Sleeve
23
99265-51
Pressure gauge, diving, bar
24
99266-52
Pressure gauge cover
25
96723-51
Screw, M5x12, 10 x 96723-01

Spare Parts Spiroline HP1 Panel
Position Item number Description
26
336190261
Washer, 10 x 944482146
27
336190244
Nut 10-pack 10 x 941680316
28
336190243
Screw, 10 x 99730-01
29
96723-52
Screw, M5x25, 10 x 96723-02
30
99226-51
Sleeve 10 pack
31
460190753
Cover, Quick Coupling, 5 pack (5 x 31392-01)
32
96786-51
Connection Manifold R5/8
33
460190385
Hand wheel Connector Replaces 331100398
34
336190232
O-ring, 10 x 336900044
35
460190383
Connection nipple
36
346190643
Inlet filter, 10-pack (10 x 212100014)
37
346190644
Inlet Filter, 100-pack (100 x 212100014)
38
336190272
O-ring, 10 x 331100767
39
460190237
O-ring, 100 x 331100767
40
460190382
Sealing nipple

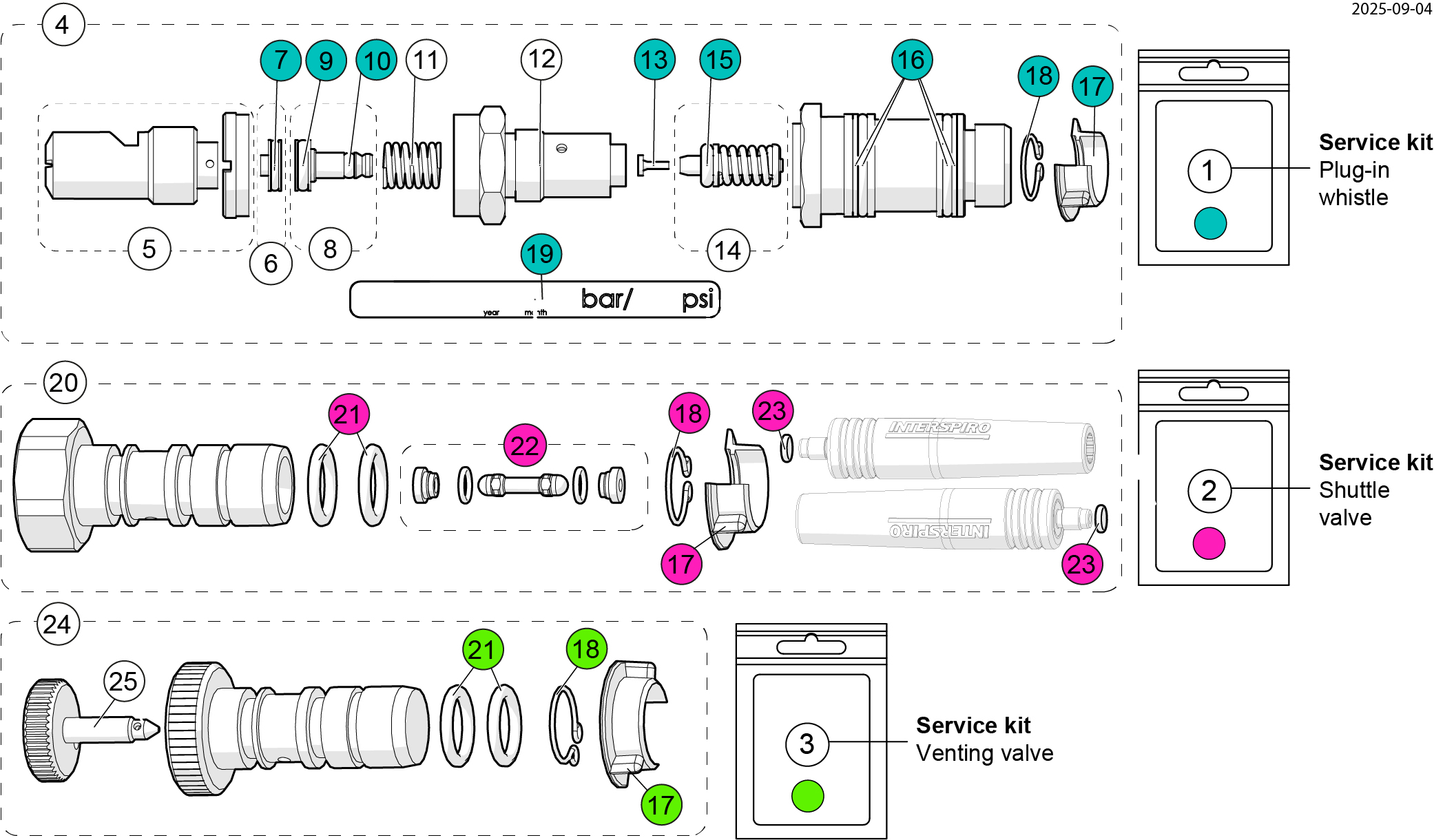

Spare parts Spiroline HP1 Panel - whistle and valves






Spare parts Spiroline HP1 Panel - whistle and valves
Position Item number Description
1
460190323
Service kit Plug-in whistle
2
460190712
Service kit Shuttle valve
3
460190713
Service kit Venting valve
4
460190143
Whistle insert 55 bar
5
346190221
Whistle assy
6
346190220
Nozzle with o-ring
7
346190251
O-ring, 7.5 x 1.3, 10 x 346900016
8
346190219
Regulating piston assy
9
346190249
O-ring, 7.1 x 1.6, 10 x 346900014
10
460190269
O-ring, 2.6 x 1.3, 10 x 346900015
11
346190218
Spring, 5 x 346100082
12
346190248
Whistle cylinder
13
346190217
Sealing cone 10-pack 10 x 346100081
14
346190216
Piston assy
15
336190240
O-ring, 5 x 331100562
16
460190200
O-ring & back-up rings, 10-pack (10 x 346900017 & 95473-01)
17
460190299
Retaining ring, 10 x 346100208
18
346190293
Locking clip, 10-pack (10 x 346100158)
19
346190296
Sealing label, 20-pack (20 x 97081-01)
20
460190709
Shuttle Insert
21
336190220
O-ring, 11.3x2.4, NBR, 10 x 944610309
22
460190750
Shuttle kit DP1
23
336190312
O-ring, 10 x 336900105
24
460190916
Venting valve, 300 bar
25
460190751
Venting screw
