Spare part list
|
Incurve-E, HKFSD
|
|
2025 April
|
READ BEFORE USE
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

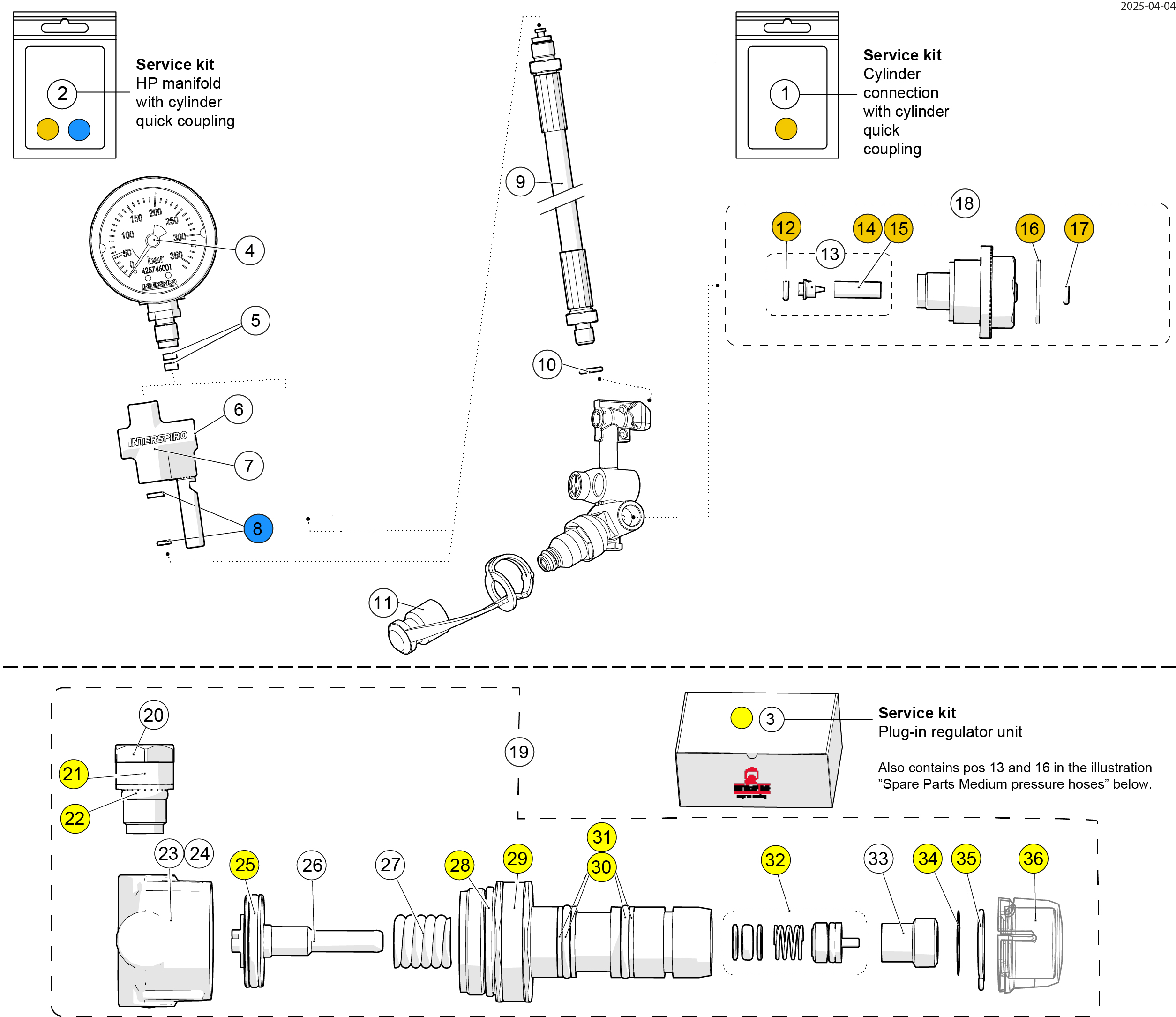

Spare Parts Regulator unit Incurve-E - HKFSD
Spare Parts Regulator unit Incurve-E - HKFSD
| Position | Item number | Description |
| 1 |
460200045
|
Service kit cylinder connection with quick coupling
|
| 2 |
460200046
|
Service kit manifold, Cylinder Quick Coupling
|
| 3 |
460190322
|
Service kit plug-in pressure regulator
|
| 4 |
460190381
|
Pressure gauge with gasket set
|
| 5 |
336190159
|
Gasket set, 1 x 335100368 & 1 x 335100369
|
| 6 |
31365-51
|
Sealing label, whistle,10-pack
|
| 7 |
34850-51
|
Whistle, 55 Bar Replaces 31030-51
|
| 8 |
460190192
|
Back-up ring & O-ring, 5-pack (5 x 98568-01 & 012027-01)
|
| 9 |
96529-51
|
High pressure hose 920 mm
|
| 10 |
336190312
|
O-ring, 10 x 336900105
|
| 11 |
96798-51
|
Dust cap
|
| 12 |
336890105
|
O-ring, 10 x 336900183
|
| 13 |
460190059
|
Filter & holder & O-ring kit, 10-pack
|
| 14 |
346190643
|
Inlet filter, 10-pack (10 x 212100014)
|
| 15 |
346190644
|
Inlet Filter, 100-pack (100 x 212100014)
|
| 16 |
460200114
|
O-ring, 10 x OR22,0X1,0-Q60
|
| 17 |
336190437
|
O-ring, 10 x 336900182
|
| 18 |
30569-51
|
Regulator part, cylinder quick coupling
|
| 19 |
96317-51
|
Plug in regulator, 3-port
|
| 20 |
460190387
|
Relief valve
|
| 21 |
346190053
|
Protective band, 10-pack (10 x 346100066)
|
| 22 |
336190311
|
O-ring, 10 x 944610206
|
| 23 |
88193-56
|
Regulator cover Replaces 460190389
|
| 24 |
88193-54
|
Regulator cover 3-port 1/8 parallell + back
|
| 25 |
346190022
|
O-ring, 10 x 346900002
|
Spare Parts Regulator unit Incurve-E - HKFSD
| Position | Item number | Description |
| 26 |
460190386
|
Piston
|
| 27 |
346190026
|
Spring, 5 x 346100005
|
| 28 |
346190024
|
O-ring, 10 x 346900004
|
| 29 |
460190201
|
Protective band, 5 x 95472
|
| 30 |
460190198
|
O-ring & back-up ring, 10 pack (10 x 346900001 & 95471-01)
|
| 31 |
460190199
|
O-ring & back-up ring, 50-pack (50 x 346900001 & 95471-01)
|
| 32 |
346190023
|
Valve seat set
|
| 33 |
460190388
|
Adjusting screw, 5 x 346100009
|
| 34 |
346190295
|
Sealing label 25-pack
|
| 35 |
346190293
|
Locking clip, 10-pack (10 x 346100158)
|
| 36 |
346190294
|
Protective cover, 10 x 346100159
|

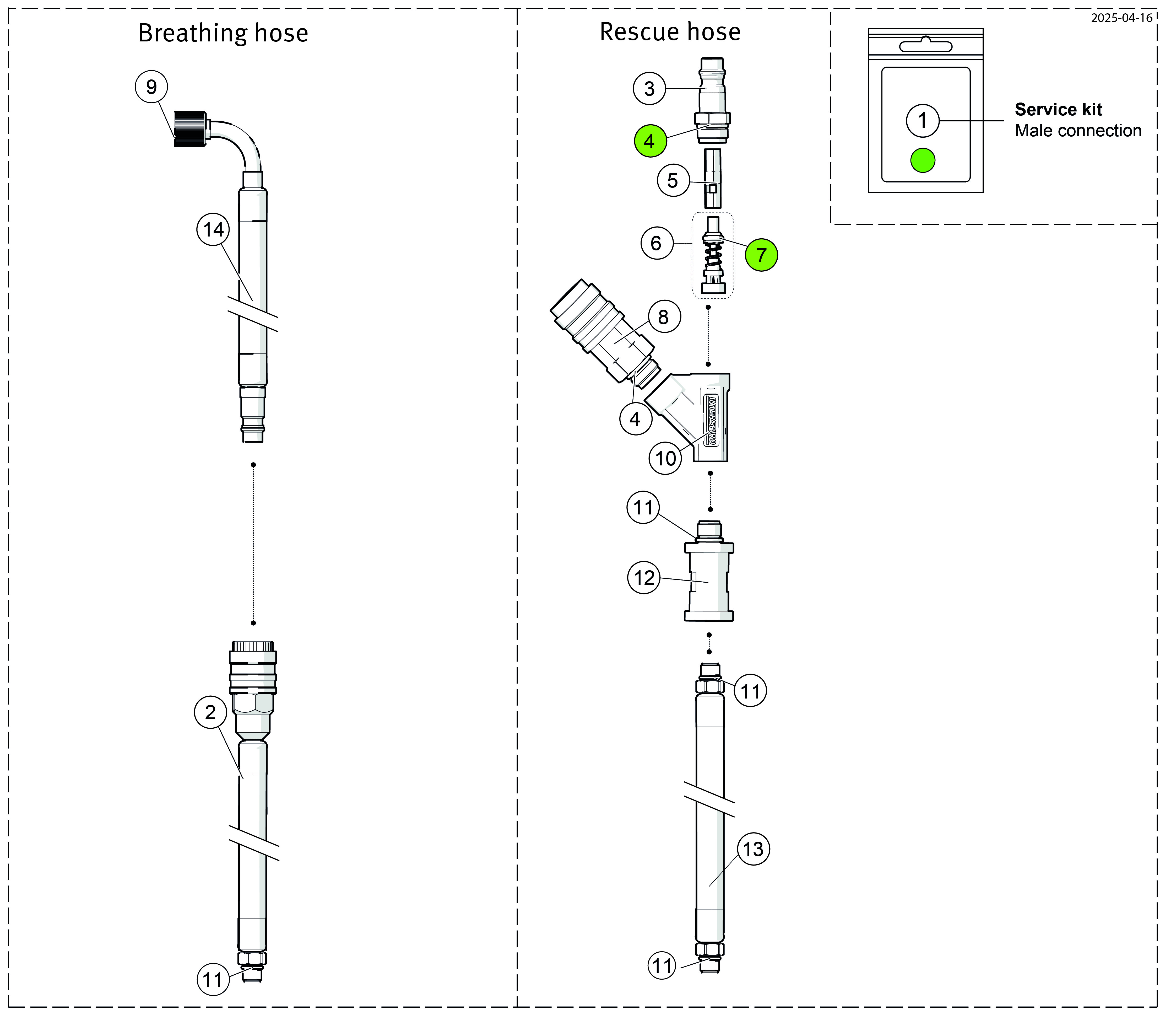

Spare Parts Medium pressure hoses Incurve-E - HKFSD
Spare Parts Medium pressure hoses Incurve-E - HKFSD
| Position | Item number | Description |
| 1 |
460200153
|
Service kit extra air connection, male
|
| 2 |
460190361
|
Supply hose 0,82 m, Replaces 346190143
|
| 3 |
460190370
|
Quick coupling male Euro
|
| 4 |
346190069
|
O-ring, 12.1x1.6, 10 x 944610210
|
| 5 |
460190371
|
Valve tube Replaces 346100097
|
| 6 |
346190223
|
Non-return valve
|
| 7 |
460190369
|
Cone with o-ring
|
| 8 |
95244-51
|
Quick coupling female Euro
|
| 9 |
336190237
|
O-ring, 10 x 336900099
|
| 10 |
95241-51
|
Extra air manifold
|
| 11 |
336190311
|
O-ring, 10 x 944610206
|
| 12 |
99368-51
|
Adapter
|
| 13 |
30961-52
|
Medium pressure hose for Y-piece
|
| 14 |
460190362
|
Breathing hose, Euro male, 0.55 M
|

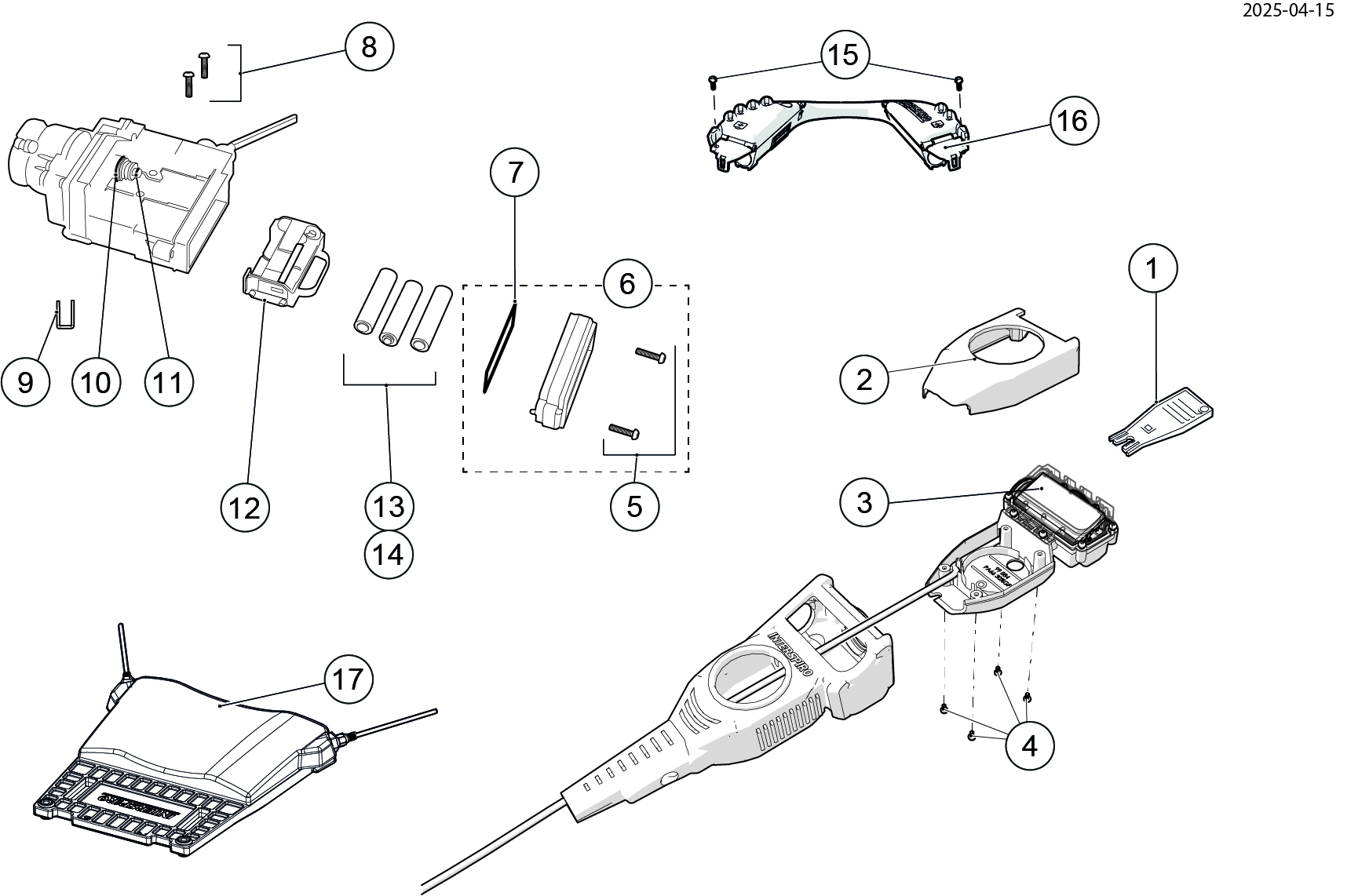

Spare Parts BAC and DDU Incurve-E - HKFSD
Spare Parts BAC and DDU Incurve-E - HKFSD
| Position | Item number | Description |
| 1 |
98837-51
|
Tally key, 5-pack
|
| 2 |
460190821
|
Upper part assy
|
| 3 |
99876-51
|
Window
|
| 4 |
336190297
|
Screw, 10 x 336900094
|
| 5 |
96068-51
|
Screw, M3x14, 10 x 96068-01
|
| 6 |
99295-51
|
Battery cover assy, BAC Spiroguide
|
| 7 |
95235-51
|
Gasket, 5-pack
|
| 8 |
96069-51
|
Screw, 10 x 96069-01
|
| 9 |
95188-51
|
Locking clip, 10-pack
|
| 10 |
96201-51
|
O-ring, 10 x 96201
|
| 11 |
95160-51
|
O-ring, 10 x 95160
|
| 12 |
98660-52
|
Battery Holder for 3xAAA, cordless
|
| 13 |
98814-53
|
Batteries AAA, 10-pack
|
| 14 |
98814-54
|
Batteries AAA, 100-pack
|
| 15 |
99032-51
|
Screw, 10 x 99032-01
|
| 16 |
31062-51
|
Heads-up display (HUD) for S7/S8/Spiroguide II/Incurve-E
|
| 17 |
31199-04
|
Spirolink SCBA telemetry unit, HK frequency
|

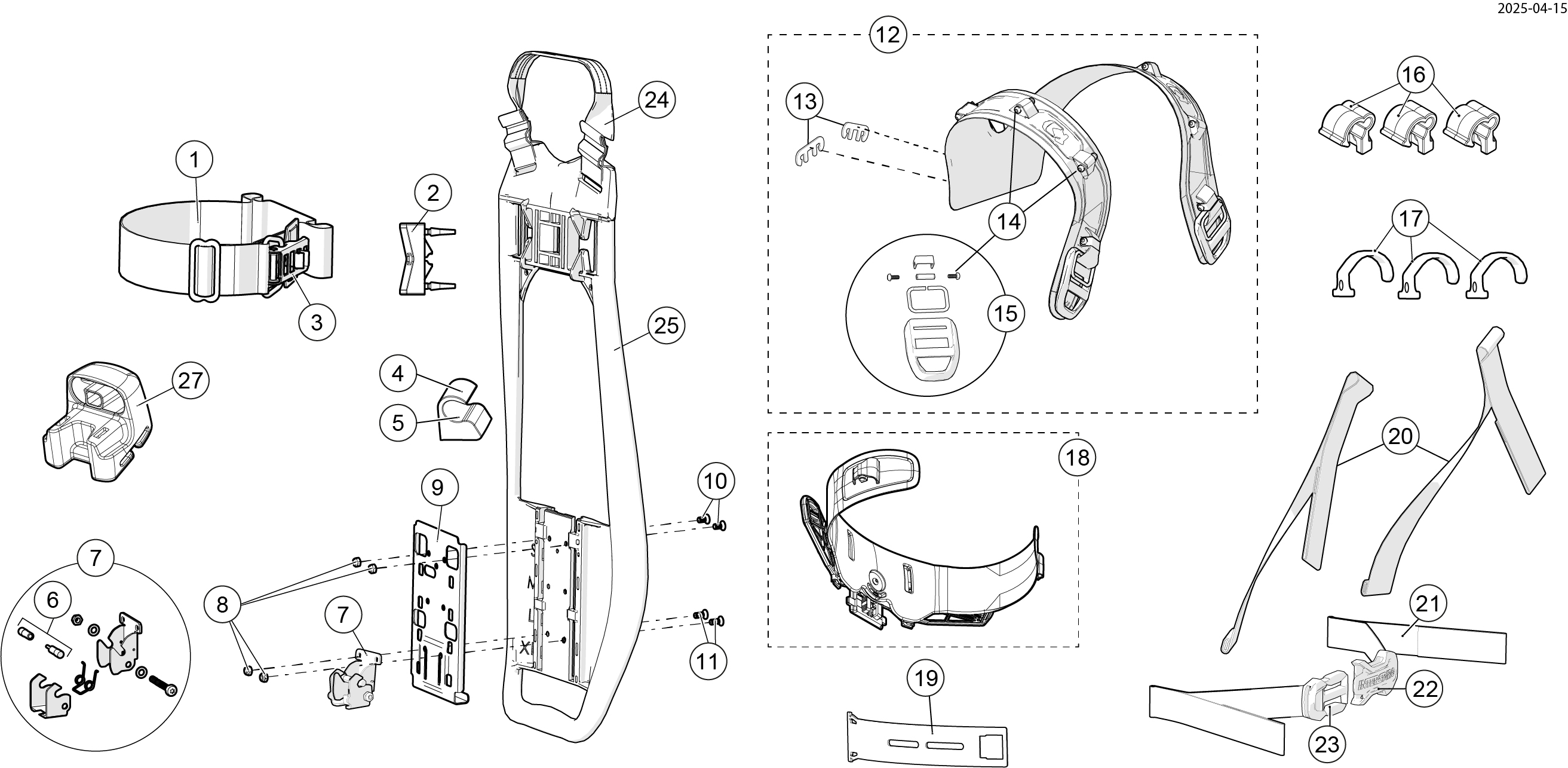

Spare Parts Incurve-E - HKFSD harness
Spare Parts Incurve-E - HKFSD harness
| Position | Item number | Description |
| 1 |
31346-62
|
Longer Cylinder strap including buckle, Incurve
|
| 2 |
101072-51
|
Cylinder support
|
| 3 |
31343-51
|
Cylinder strap buckle
|
| 4 |
99707-854
|
Screw, 10 x 99707-804
|
| 5 |
101076-51
|
Hose holder clip
|
| 6 |
33411-51
|
Regulator rod
|
| 7 |
460200109
|
Quick attachment
|
| 8 |
99799-55
|
Locking Nut M5, 10-pack (10 x 99799-05)
|
| 9 |
31314-51
|
Bracket
|
| 10 |
99709-51
|
Screw, 10 x 99709-01
|
| 11 |
99709-52
|
Screw, 10 x 99709-02
|
| 12 |
460200112
|
Shoulder strap unit, complete
|
| 13 |
33466-51
|
Backplate clip, 2 x 33466-01
|
| 14 |
99711-52
|
Screw, 10 x 99711-02
|
| 15 |
460200113
|
Buckle
|
| 16 |
101398-51
|
Hose holder, HP
|
| 17 |
33457-52
|
Holder for breathing hose, 3-pack
|
| 18 |
31310-54
|
Incurve hip belt, Hongkong w/o straps and waist buckle
|
| 19 |
33460-51
|
Hip belt stabiliser
|
| 20 |
31325-52
|
Adjusting strap, shoulder, 2 pack
|
| 21 |
31326-51
|
Adjusting strap, hip, QS II, 2 x 31326-01
|
| 22 |
31302-51
|
Waist buckle, female
|
| 23 |
31303-51
|
Waist buckle, male
|
| 24 |
33464-51
|
Handle, Incurve
|
| 25 |
31311-52
|
Backplate
|
Spare Parts Incurve-E - HKFSD harness
| Position | Item number | Description |
| 26 |
101770-51
|
Breathing valve parking
|

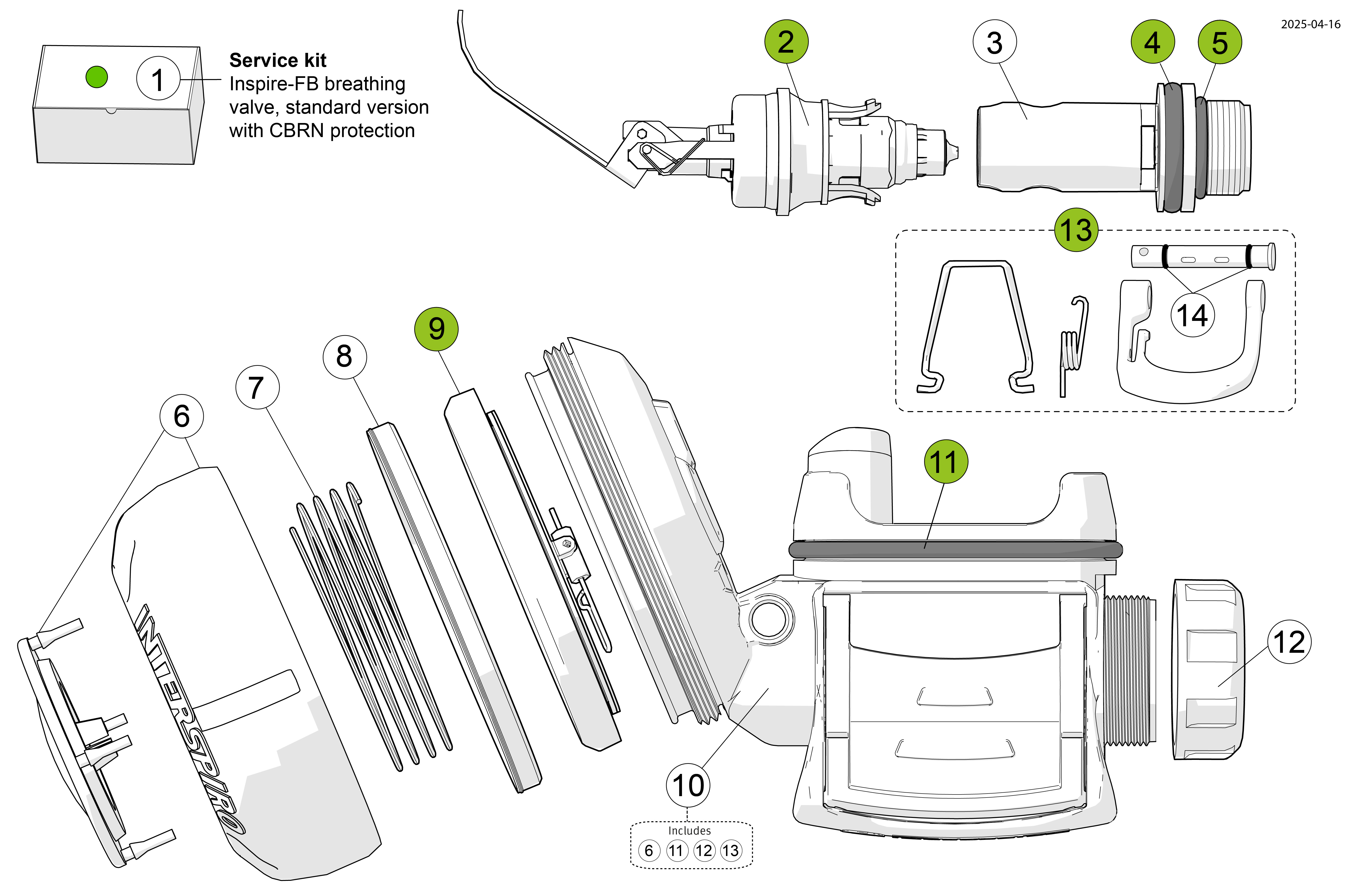

Spare Parts Inspire-FB - HKFSD breathing valve
Spare Parts Inspire-FB - HKFSD breathing valve
| Position | Item number | Description |
| 1 |
012451-01
|
Service kit for Inspire breathing valve - standard version with CBRN protection
|
| 2 |
460200115
|
Valve insert Inspire breathing valve
|
| 3 |
460190242
|
Connection nipple (M16 thread)
|
| 4 |
336190227
|
O-ring, 10 x 331900064
|
| 5 |
336190225
|
O-ring, 10 x 336900001
|
| 6 |
460200117
|
Cover with purge button
|
| 7 |
460190022
|
Positive pressure spring, 5 x 95063
|
| 8 |
460190308
|
Diaphragm ring, 10-pack (10 x 331100653)
|
| 9 |
460190021
|
Diaphragm assembly, standard version with CBRN protection
|
| 10 |
010381-52
|
Valve housing Inspire FB, RFID
|
| 11 |
460200133
|
O-ring, 36.14 x 2.7, NBR, 10 x 34210-01
|
| 12 |
460190516
|
Locking nut, black, 5 x 336101140
|
| 13 |
012157-01
|
Lifting arm assy Inspire-FB
|
| 14 |
336190228
|
O-ring, 12.42x1.78, NBR, 10 x 336900007
|
