Inspire-FB Face Mask (STD M/L) including Spirocom QC bracket
|
2024 September
|
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

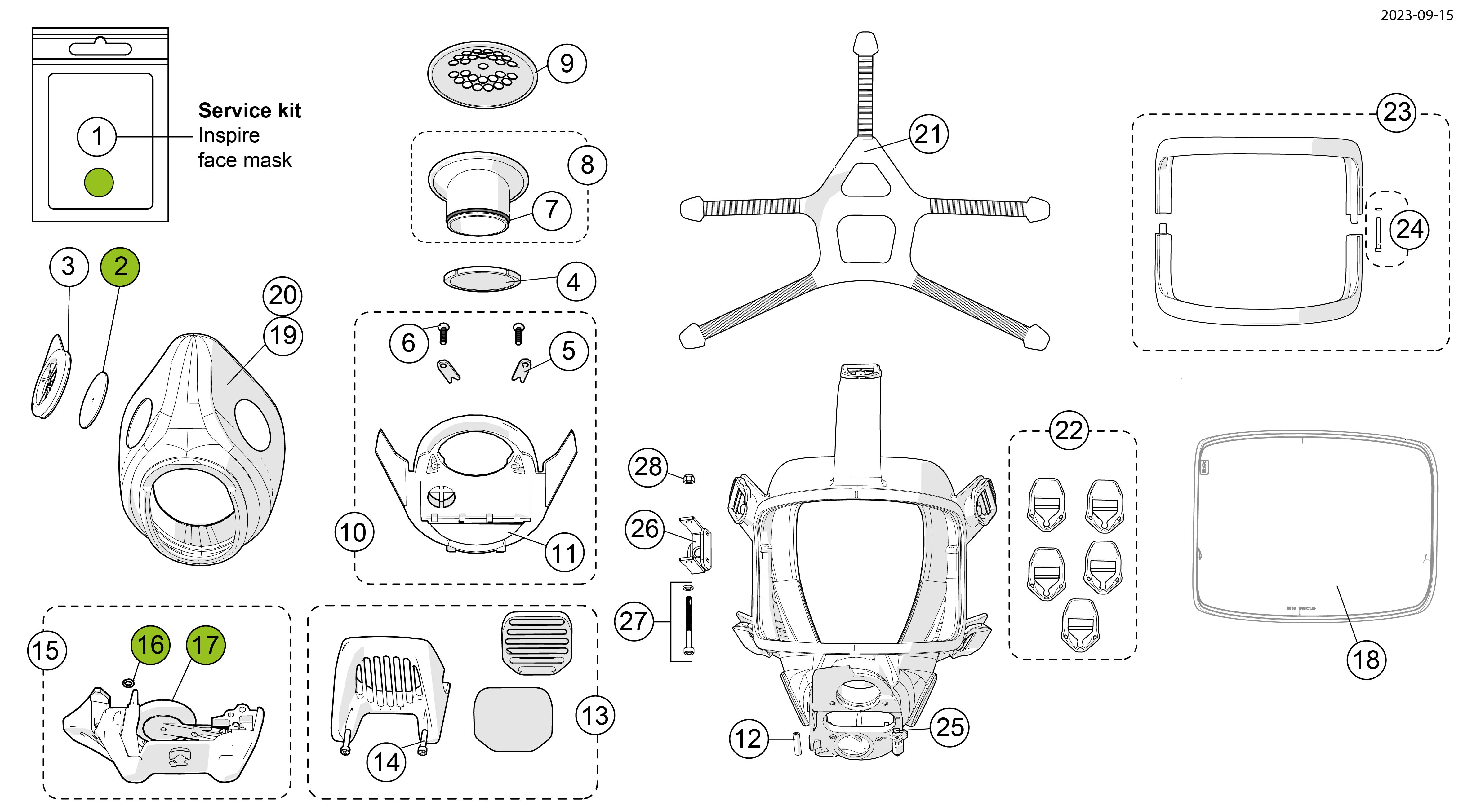

Position | Item number | Description |
1 |
460190324
|
Service kit for Inspire & S face mask
|
2 |
460190014
|
Non-return valve disc, Q, 10-pack (10 x 336800092)
|
3 |
95026-52
|
Valve seat, black, 1 pc
|
4 |
460190149
|
Protective net
|
5 |
460190223
|
Locking plate, 10 x 336100822
|
6 |
460190239
|
Screw, 10 x 944288226
|
7 |
336190790
|
O-ring, 10 x 336900268
|
8 |
336190773
|
Speech diaphragm with O-ring
|
9 |
460200105
|
Speech diaphragm cover
|
10 |
460190019
|
Inner mask plate assy
|
11 |
460190072
|
Non return flap, 5-pack
|
12 |
99252-51
|
Screw, 10-Pack
|
13 |
33426-51
|
External Speech Cone, Inspire
|
14 |
99726-854
|
Screw, 10 x 99726-804, pre-applied Nylok
|
15 |
99477-56
|
Exhalation valve assembly Inspire-FB
|
16 |
460190071
|
O-ring, 10 x 95212-01
|
17 |
460190011
|
Exhalation valve disc 5-pack
|
18 |
460200200
|
Visor, hardcoated, anti-fog - Replaces 96701-51
|
19 |
95002-58
|
Inner mask S/M, EPDM
|
20 |
96756-58
|
Inner mask, L/XL, EPDM
|
21 |
31306-53
|
Head harness, Standard version, 5-point adjustment - EPDM
|
22 |
460200065
|
Buckle assy, 5-pack
|
23 |
460190657
|
Visor frame assy, black
|
24 |
336190409
|
Screw with washer, 10-pack
|
25 |
460190374
|
Locking pin, 5 pack (5 x 95202-01)
|
Position | Item number | Description |
26 |
460200136
|
Spirocom quick attachment
|
27 |
460200170
|
Screw and washer, 10-pack
|
28 |
336890099
|
Locking nut 5-pack Replaces 336900189
|

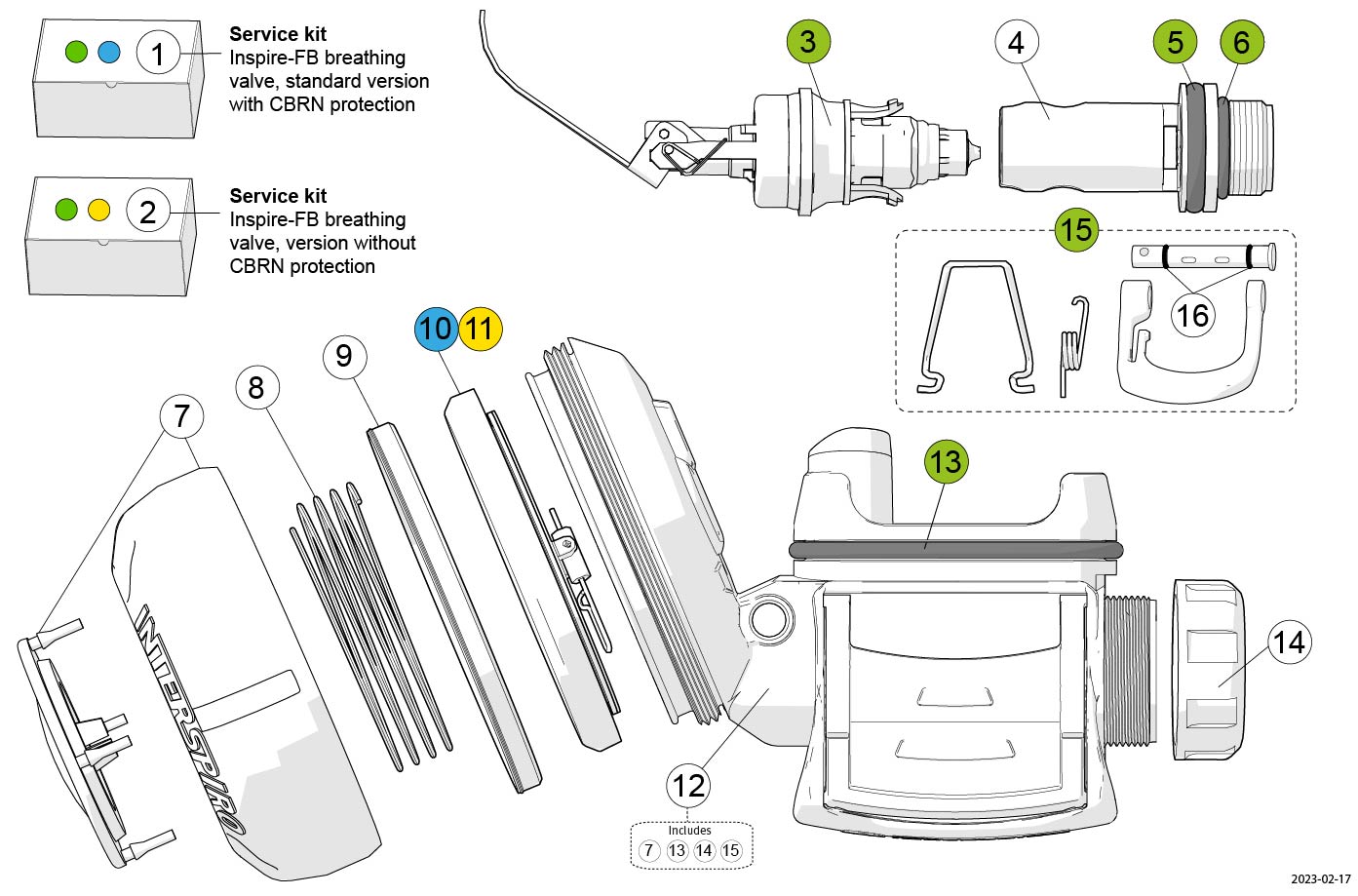

Position | Item number | Description |
1 |
012451-01
|
Service kit for Inspire breathing valve - standard version with CBRN protection
|
2 |
012451-02
|
Service kit for Inspire breathing valve - version without CBRN proection
|
3 |
460200115
|
Valve insert Inspire breathing valve
|
4 |
460190242
|
Connection nipple (M16 thread)
|
5 |
336190227
|
O-ring, 10 x 331900064
|
6 |
336190228
|
O-ring, 12.42x1.78, NBR, 10 x 336900007
|
7 |
460200117
|
Cover with purge button
|
8 |
460190021
|
Diaphragm assembly, standard version with CBRN protection
|
9 |
460190332
|
Diaphragm assembly, version without CBRN protection
|
10 |
460190308
|
Diaphragm ring, 10-pack (10 x 331100653)
|
11 |
460190022
|
Positive pressure spring, 5 x 95063
|
12 |
010381-51
|
Valve housing assy Inspire-FB
|
13 |
460200133
|
O-ring, 36.14 x 2.7, NBR, 10 x 34210-01
|
14 |
460190516
|
Locking nut, black, 5 x 336101140
|
15 |
012157-01
|
Lifting arm assy Inspire-FB
|
16 |
336190225
|
O-ring, 10 x 336900001
|
