Spare part list
|
Spiroguide II Essex
|
|
2025 September
|
READ BEFORE USE
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

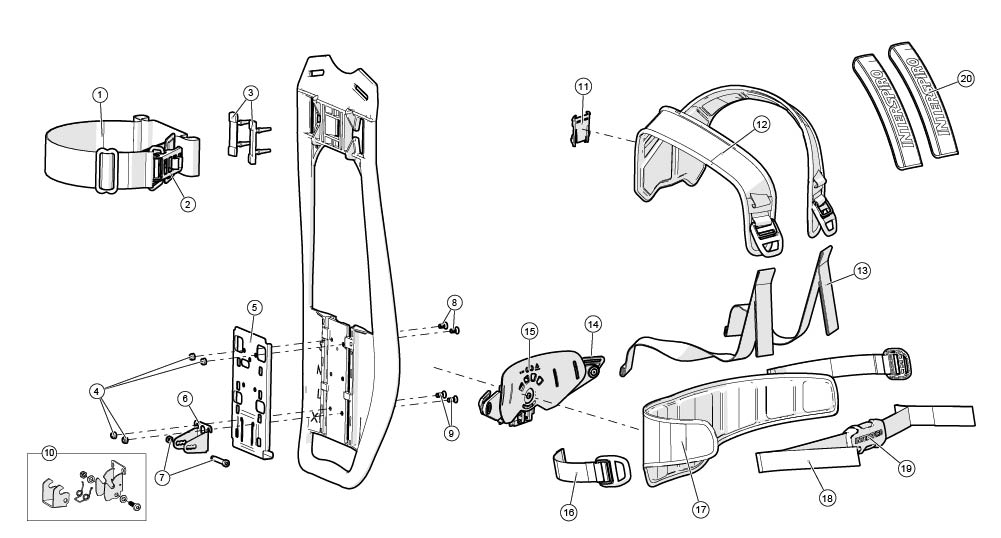

| Position | Item number | Description |
| 1 |
31346-51
|
Cylinder strap including buckle, QS II
|
| 2 |
31343-51
|
Cylinder strap buckle
|
| 3 |
460190101
|
Cylinder support 10-pack
|
| 4 |
99799-55
|
Locking Nut M5, 10-pack (10 x 99799-05)
|
| 5 |
31314-51
|
Bracket
|
| 6 |
31319-51
|
Support Bracket
|
| 7 |
31322-51
|
Screw and nut
|
| 8 |
99709-51
|
Screw, 10 x 99709-01
|
| 9 |
99709-52
|
Screw, 10 x 99709-02
|
| 10 |
460200109
|
Quick attachment
|
| 11 |
32003-51
|
Locking plate, shoulder pad
|
| 12 |
31324-52
|
Shoulder pad (for buttons)
|
| 13 |
31325-52
|
Adjusting strap, shoulder, 2 pack
|
| 14 |
460200067
|
Pivot arms QS II
|
| 15 |
31310-51
|
Hip belt attachment QS II
|
| 16 |
31377-51
|
Hip webbing with buckle QS II, 2-pack
|
| 17 |
31369-51
|
Hip belt (textile parts) QS II
|
| 18 |
31326-51
|
Adjusting strap, hip, QS II, 2 x 31326-01
|
| 19 |
460200066
|
Waist buckle complete QS II
|
| 20 |
31378-71
|
Hose cover with press buttons
|

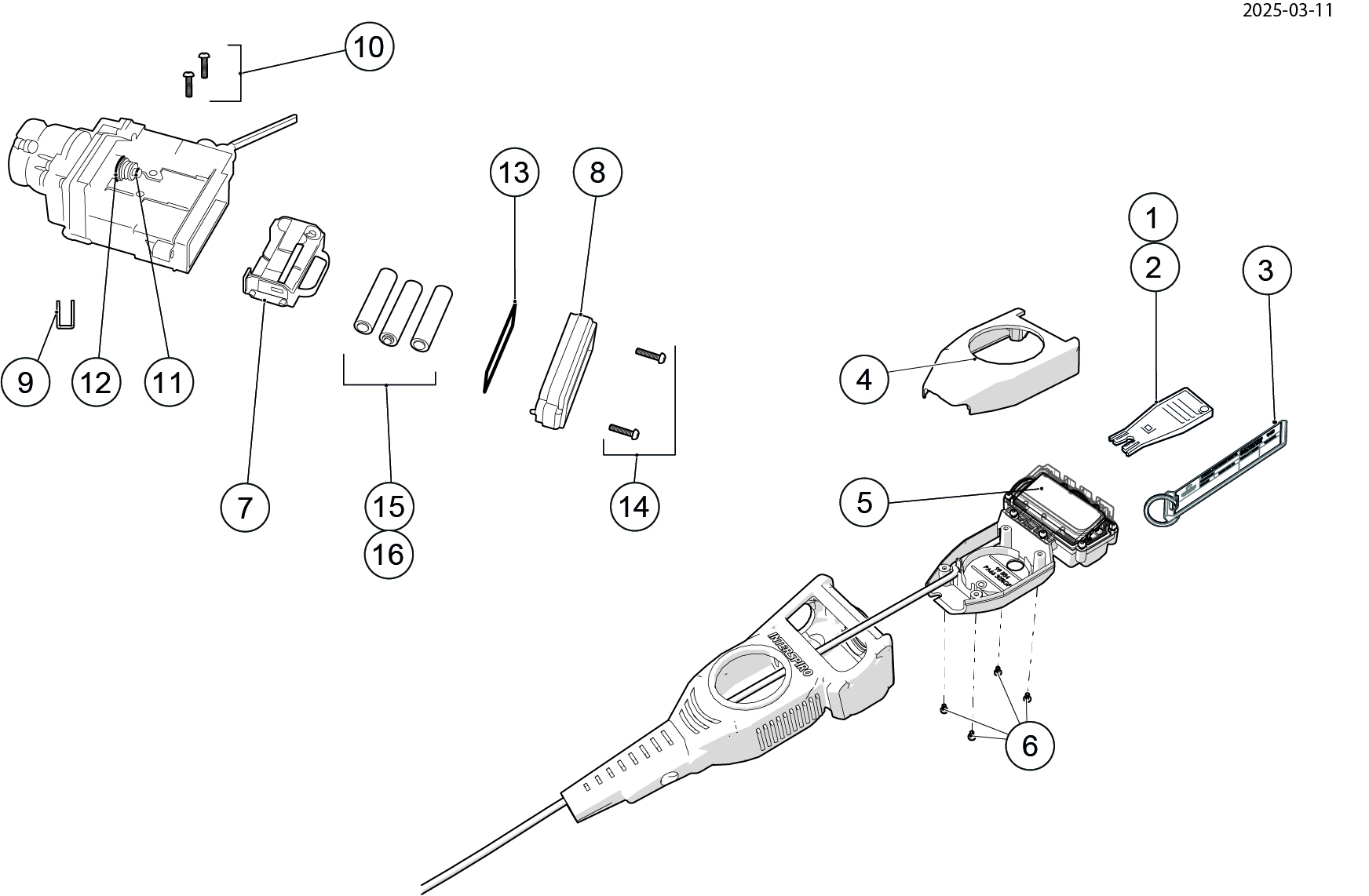

| Position | Item number | Description |
| 1 |
98837-51
|
Tally key, 5-pack - Black
|
| 2 |
98837-03
|
Tally key, red
|
| 3 |
34908-52
|
Spirolink Tally key for Incurve-E
|
| 4 |
99876-51
|
Window
|
| 5 |
98660-52
|
Battery Holder for 3xAAA, cordless
|
| 6 |
99295-51
|
Battery cover assy, BAC Spiroguide
|
| 7 |
95188-51
|
Locking clip, 10-pack
|
| 8 |
96069-51
|
Screw, 10 x 96069-01
|
| 9 |
95160-51
|
O-ring, 10 x 95160
|
| 10 |
96201-51
|
O-ring, 10 x 96201
|
| 11 |
336190232
|
O-ring, 10 x 336900044
|
| 12 |
460190821
|
Upper part assy
|
| Position | Item number | Description |
| 1 |
460190321
|
Service kit Manifold
|
| 2 |
460190711
|
Service kit cylinder connection
|
| 3 |
460190381
|
Pressure gauge with gasket set
|
| 4 |
336190159
|
Gasket set, 1 x 335100368 & 1 x 335100369
|
| 5 |
31365-51
|
Sealing label, whistle,10-pack
|
| 6 |
34850-51
|
Whistle, 55 Bar Replaces 31030-51
|
| 7 |
99722-51
|
Screw, 10 x 99722-801
|
| 8 |
31018-51
|
U-clip, 10-pack
|
| 9 |
460190192
|
Back-up ring & O-ring, 5-pack (5 x 98568-01 & 012027-01)
|
| 10 |
96529-51
|
High pressure hose 920 mm
|
| 11 |
336190312
|
O-ring, 10 x 336900105
|
| 12 |
31391-51
|
Dust cover, small, 10-pack
|
| 13 |
31392-51
|
Dust cover, large, 10-pack
|
| 14 |
99710-51
|
Screw, 10 x 99710-01
|
| 15 |
30130-52
|
Spring, long, 5 x 30130-02
|
| 16 |
98520-51
|
Hand wheel
|
| 17 |
460190384
|
Connection nipple long
|
| 18 |
346190643
|
Inlet filter, 10-pack (10 x 212100014)
|
| 19 |
346190644
|
Inlet Filter, 100-pack (100 x 212100014)
|
| 20 |
460190382
|
Sealing nipple
|
| 21 |
336190272
|
O-ring, 10 x 331100767
|
| 22 |
460190237
|
O-ring, 100 x 331100767
|
| 23 |
336190237
|
O-ring, 10 x 336900099
|
| 24 |
336190311
|
O-ring, 10 x 944610206
|
| 25 |
460190041
|
Medium pressure hose for Y-piece
|
| Position | Item number | Description |
| 26 |
346190021
|
O-ring, 10 x 346900001
|
| 27 |
88119-51
|
Connector, 90 degree
|
| 28 |
460190361
|
Supply hose 0,82 m, Replaces 346190143
|
| 29 |
460200103
|
Breathing hose with bend restrictor
|
| 30 |
96317-01
|
Pressure regulator
|
| 31 |
460190387
|
Relief valve
|
| 32 |
346190053
|
Protective band, 10-pack (10 x 346100066)
|
| 33 |
88193-54
|
Regulator cover 3-port 1/8 parallell + back
|
| 34 |
346190022
|
O-ring, 10 x 346900002
|
| 35 |
460190386
|
Piston
|
| 36 |
346190026
|
Spring, 5 x 346100005
|
| 37 |
346190024
|
O-ring, 10 x 346900004
|
| 38 |
460190201
|
Protective band, 5 x 95472
|
| 39 |
460190198
|
O-ring & back-up ring, 10 pack (10 x 346900001 & 95471-01)
|
| 40 |
460190199
|
O-ring & back-up ring, 50-pack (50 x 346900001 & 95471-01)
|
| 41 |
346190023
|
Valve seat set
|
| 42 |
460190388
|
Adjusting screw, 5 x 346100009
|
| 43 |
346190295
|
Sealing label 25-pack
|
| 44 |
346190293
|
Locking clip, 10-pack (10 x 346100158)
|
| 45 |
346190294
|
Protective cover, 10 x 346100159
|
