Spare part list
|
Spiromatic mask
|
|
2024 December
|
READ BEFORE USE
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.
| Position | Item number | Description |

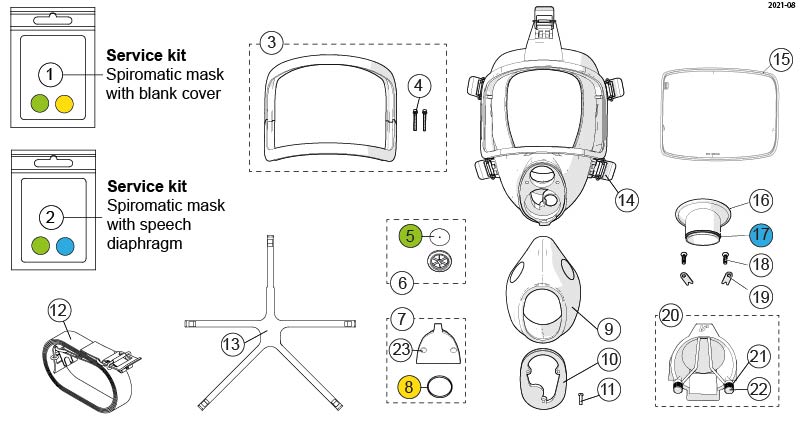

| 1 |
460190404
|
Service kit Divator Full Face Mask & Spiromatic mask with blank cover
|
| 2 |
460190405
|
Service kit Spiromatic mask, version with speech cone
|
| 3 |
460190657
|
Visor frame assy, black
|
| 4 |
336190409
|
Screw with washer, 10-pack
|
| 5 |
32419-52
|
Non-return valve disc, 1x32419-01
|
| 6 |
460190549
|
Valve seat assy, black, 2-pack
|
| 7 |
460190555
|
Blank cover for mask, black
|
| 8 |
336190222
|
O-ring, 5 x 944610221
|
| 9 |
460200079
|
Inner mask, silicone, black
|
| 10 |
460190398
|
Retaining plate Replaces 336100018
|
| 11 |
336190246
|
Screw, 10 x 941136224
|
| 12 |
98998-51
|
Neck strap with mask buckles
|
| 13 |
460190402
|
Head harness Replaces 331100631
|
| 14 |
460190541
|
Buckle assy, 5 x 336900017
|
| 15 |
460190350
|
Visor
|
| 16 |
336190773
|
Speech diaphragm with O-ring
|
| 17 |
336190790
|
O-ring, 10 x 336900268
|
| 18 |
460190276
|
Screw, 10 x 336900264
|
| 19 |
460190223
|
Locking plate, 10 x 336100822
|
| 20 |
31137-51
|
External speech cone black
|
| 21 |
336190255
|
Circlip 10-pack Replaces 944607106
|
| 22 |
460190399
|
Hand screw speech cone, 10-pack Replaces 336100814
|
| 23 |
460190300
|
Screw, 10 x 336100029
|
| Position | Item number | Description |

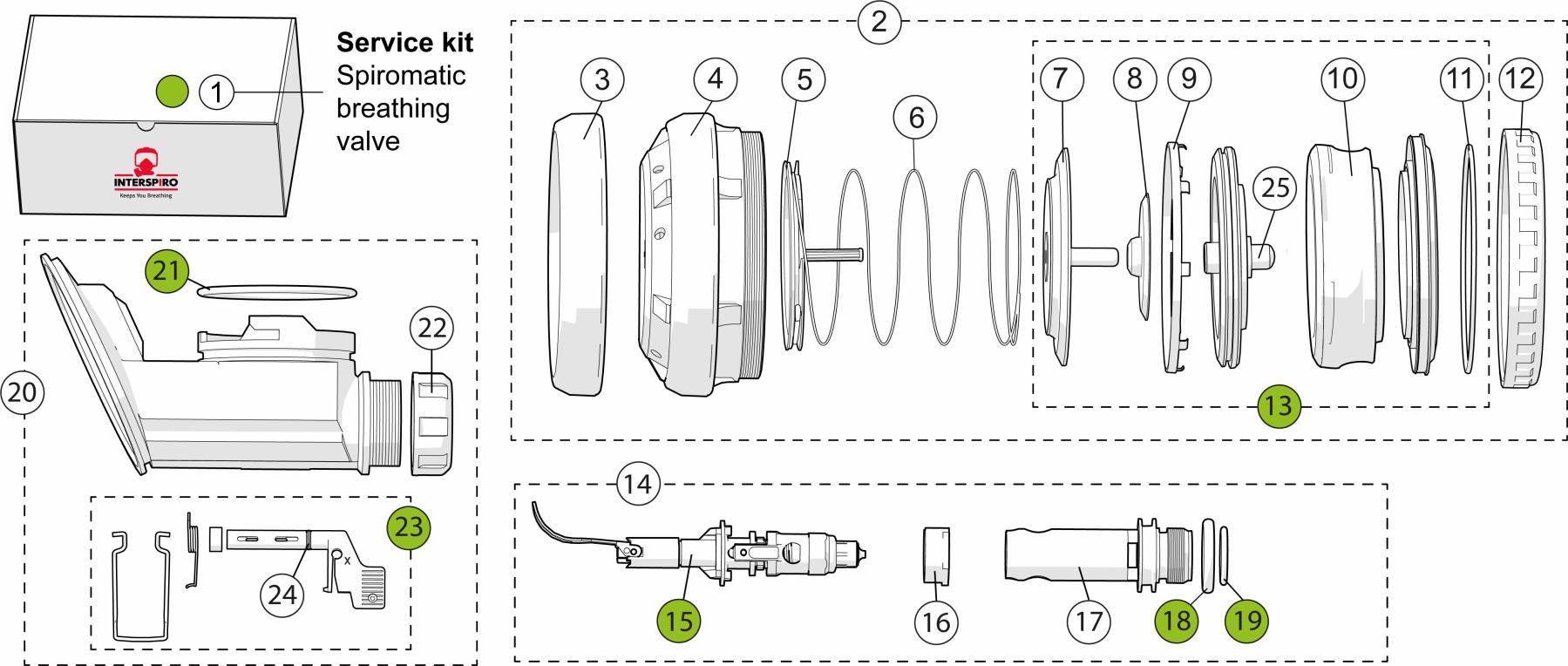

| 1 |
460190416
|
Service kit Spiromatic breathing valve
|
| 2 |
31997-51
|
Positive pressure attachment
|
| 3 |
346190197
|
Shield ring, black 5-pack (5 x 336800184)
|
| 4 |
31998-51
|
Cover black
|
| 5 |
460190412
|
Guide disc with SP Replaces 336100003
|
| 6 |
460190392
|
Positive pressure spring, 5-pack (5 x 336100004)
|
| 7 |
460190393
|
Sealing disc, 5-pack (5 x 336100005)
|
| 8 |
346190196
|
Exhalation diaphragm 5-pack
|
| 9 |
460190413
|
Securing ring 10-pack (10 x 336100008)
|
| 10 |
460190140
|
Diaphragm for breathing valve, (1 x 336100009)
|
| 11 |
336190224
|
O-ring, 5 x 336900009
|
| 12 |
460190515
|
Locking ring, black, 5 x 336101139
|
| 13 |
336190065
|
Diaphragm assy
|
| 14 |
336190281
|
Valve insert
|
| 15 |
460190146
|
Valve insert Spiromatic
|
| 16 |
346190198
|
Retaining ring 10-pack 10 x 336100777
|
| 17 |
460190396
|
Connection nipple - replaces 336100020
|
| 18 |
336190227
|
O-ring, 10 x 331900064
|
| 19 |
336190228
|
O-ring, 12.42x1.78, NBR, 10 x 336900007
|
| 20 |
31996-51
|
Valve housing assy
|
| 21 |
336190226
|
O-ring, 10 x 336900008
|
| 22 |
460190516
|
Locking nut, black, 5 x 336101140
|
| 23 |
336190142
|
Handle assy
|
| 24 |
336190225
|
O-ring, 10 x 336900001
|
| 25 |
346190194
|
Guide pin 10-pack 10 x 336100011
|
