Spare part list










Tools for regulator with reserve air warning



2024 November

READ BEFORE USE


1. Only holders of a valid Interspiro Service Certificate may carry out
    service and repairs on Interspiro breathing equipment. Unauthorized
    service may result in malfunction and users relying thereon could
    sustain severe respiratory injury or death.


2. When using the spare part list always refer to the equipment's Service
    manual in regard to procedures and handling of the spare parts
    assembly and function.


3. Changes to this document – necessitated by typographical errors,
    inaccuracies of current information or improvements and changes of
    equipment – may be done at any time and without prior notice. Always
    refer to the Interspiro webpage for the latest version.


4. The description defines if the spare part is a multi-pack,
    e. g. "10 x 336100437" indicates that this is a multi-pack
    that consists of 10 pieces of the single component 336100437.
    The single component part number 336100437 can not be ordered,
    it is only used to label parts included in service kits.


5. The service kits contain replacement items used for preventive
    maintenance.


6.  Always refer to the Interspiro webpage for product and document
     updates and important notices.

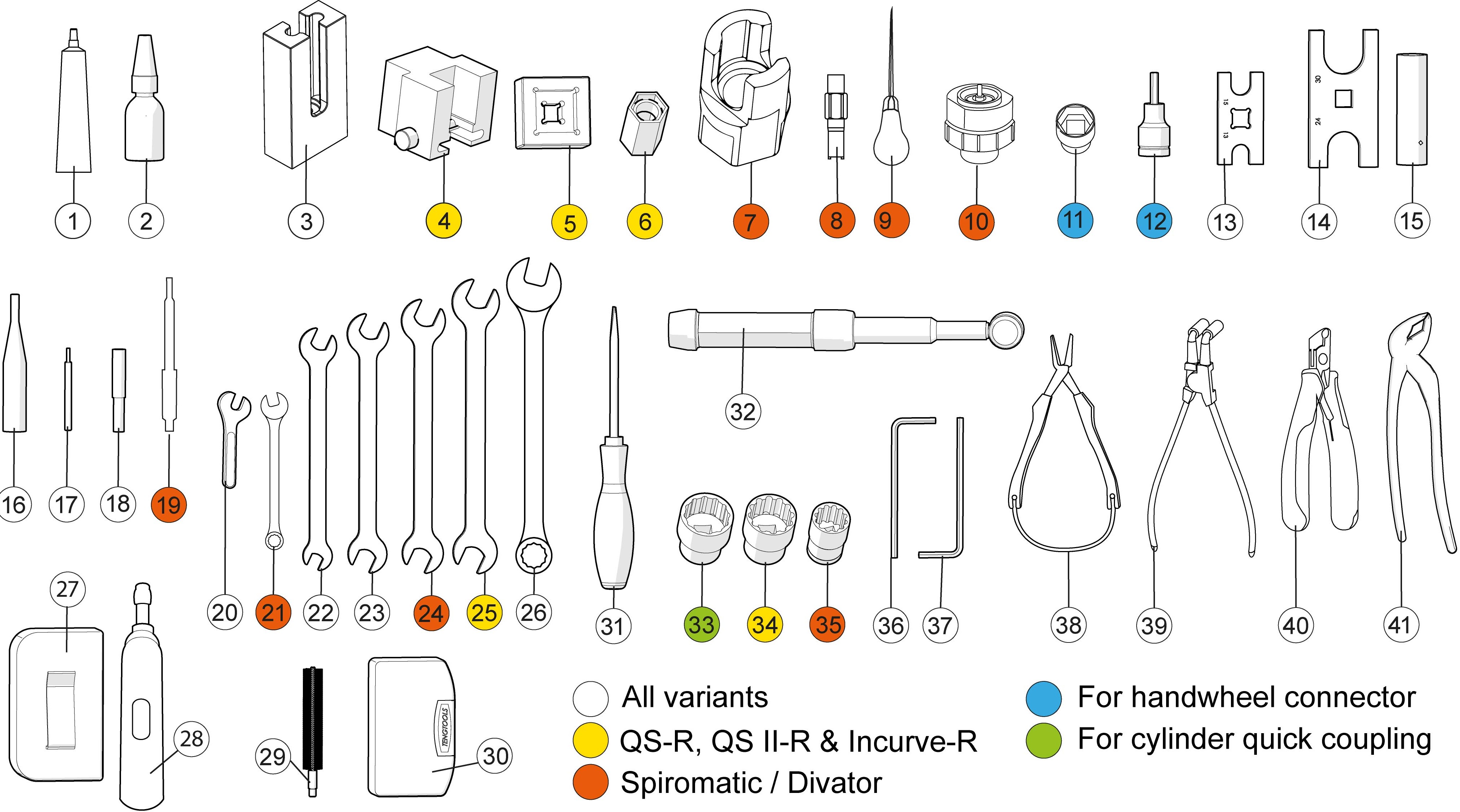

Spare Parts Tools for regulator with reserve air warning






Spare Parts Tools for regulator with reserve air warning
Position Item number Description
1
331900269
Silicone lubricant
2
331900268
Lubricant for cylinder valve
3
460190846
Locking compound Loctite 542, 10 ml
4
97951-51
Fixture, warning manifold Divator/Spiromatic
5
95927-01
Fixture for Manifold QS and DP1
6
32154-51
Tool for regulator cover
7
460190847
Fixture for Plug-in regulator
8
460190855
Fixture for P+regulator, Spiromatic, MKII & DP1
9
460190853
Adjusting key for warning unit
10
460190768
Awl 100 mm
11
99211-01
Piston Extractor Spiromatic II/MKII Regulator
12
460190567
Socket, slotted, 19 mm
13
460200520
Socket, 5 mm, hexagonal
14
460190852
Torque wrench adapter 13-15 mm
15
99082-01
Torque wrench adapter, 24-30 mm
16
460200029
Socket, 15 mm, long
17
95925-01
Assembly tool, regulator + shuttle
18
460190565
Protective pin, o-ring & support washer
19
460190566
Punch tool
20
460190854
O-Ring nozzle punch
21
460200516
U-Spanner 8 mm
22
32140-5107
U-Spanner 7 mm
23
460190774
U-Spanner 10-13 mm
24
460190769
U-Spanner 14-15 mm
25
460200530
U-spanner 16-17 mm

Spare Parts Tools for regulator with reserve air warning
Position Item number Description
26
460190775
U-Spanner 18-19 mm
27
460200010
U-Spanner 20 mm
28
88749-51
Bit Set
29
88748-51
Torque Screwdriver 1-5 Nm
30
460200030
Barrel brush
31
30042-51
O-ring tool kit
32
460190767
Screwdriver slotted 5.5 x 125
33
336190478
Torque wrench 5-50 Nm (S/R 3SDR 5-50 Nm ½ inch)
34
31956-51
Socket, 29 mm
35
460200521
Socket, 27 mm
36
460200523
Socket, 20 mm
37
96004-51
Hexagon Key, 4 mm
38
460200008
Hexagonal key 5 mm
39
460190772
Picking pliers
40
460200519
Circlip pliers
41
88626-51
Cutting pliers
42
96984-51
Tongue & Groove Pliers
