Tools for regulator with reserve air warning
|
2024 September
|
1. Only holders of a valid Interspiro Service Certificate may carry out
service and repairs on Interspiro breathing equipment. Unauthorized
service may result in malfunction and users relying thereon could
sustain severe respiratory injury or death.
2. When using the spare part list always refer to the equipment's Service
manual in regard to procedures and handling of the spare parts
assembly and function.
3. Changes to this document – necessitated by typographical errors,
inaccuracies of current information or improvements and changes of
equipment – may be done at any time and without prior notice. Always
refer to the Interspiro webpage for the latest version.
4. The description defines if the spare part is a multi-pack,
e. g. "10 x 336100437" indicates that this is a multi-pack
that consists of 10 pieces of the single component 336100437.
The single component part number 336100437 can not be ordered,
it is only used to label parts included in service kits.
5. The service kits contain replacement items used for preventive
maintenance.
6. Always refer to the Interspiro webpage for product and document
updates and important notices.

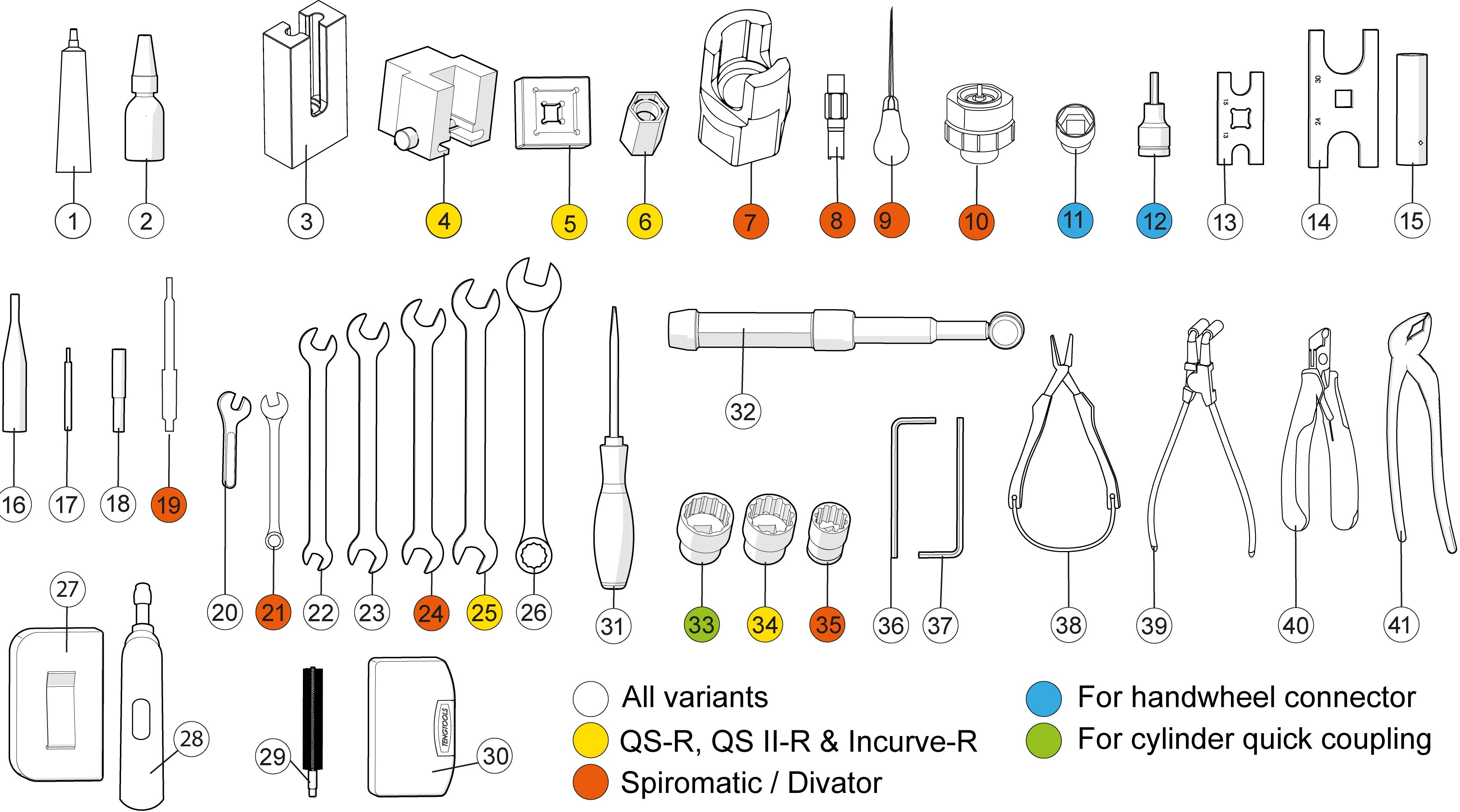

Position | Item number | Description |
1 |
331900269
|
Silicone lubricant
|
2 |
331900268
|
Lubricant for cylinder valve
|
3 |
460190846
|
Locking compound Loctite 542, 10 ml
|
4 |
97951-51
|
Fixture, warning manifold Divator/Spiromatic
|
5 |
95927-01
|
Fixture for Manifold QS and DP1
|
6 |
32154-51
|
Tool for regulator cover
|
7 |
460190847
|
Fixture for Plug-in regulator
|
8 |
460190855
|
Fixture for P+regulator, Spiromatic, MKII & DP1
|
9 |
460190853
|
Adjusting key for warning unit
|
10 |
460190768
|
Awl 100 mm
|
11 |
99211-01
|
Piston Extractor Spiromatic II/MKII Regulator
|
12 |
460190567
|
Socket, slotted, 19 mm
|
13 |
460200520
|
Socket, 5 mm, hexagonal
|
14 |
460190852
|
Torque wrench adapter 13-15 mm
|
15 |
99082-01
|
Torque wrench adapter, 24-30 mm
|
16 |
460200029
|
Socket, 15 mm, long
|
17 |
95925-01
|
Assembly tool, regulator + shuttle
|
18 |
460190565
|
Protective pin, o-ring & support washer
|
19 |
460190566
|
Punch tool
|
20 |
460190854
|
O-Ring nozzle punch
|
21 |
460200516
|
U-Spanner 8 mm
|
22 |
32140-5107
|
U-Spanner 7 mm
|
23 |
460190774
|
U-Spanner 10-13 mm
|
24 |
460190769
|
U-Spanner 14-15 mm
|
25 |
460200530
|
U-spanner 16-17 mm
|
Position | Item number | Description |
26 |
460190775
|
U-Spanner 18-19 mm
|
27 |
460200010
|
U-Spanner 20 mm
|
28 |
88749-51
|
Bit Set
|
29 |
88748-51
|
Torque Screwdriver 1-5 Nm
|
30 |
460200030
|
Barrel brush
|
31 |
30042-51
|
O-ring tool kit
|
32 |
460190767
|
Screwdriver slotted 5.5 x 125
|
33 |
336190478
|
Torque wrench 5-50 Nm (S/R 3SDR 5-50 Nm ½ inch)
|
34 |
31956-51
|
Socket, 29 mm
|
35 |
460200521
|
Socket, 27 mm
|
36 |
460200523
|
Socket, 20 mm
|
37 |
96004-51
|
Hexagon Key, 4 mm
|
38 |
460200008
|
Hexagonal key 5 mm
|
39 |
460190772
|
Picking pliers
|
40 |
460200519
|
Circlip pliers
|
41 |
88626-51
|
Cutting pliers
|
42 |
96984-51
|
Tongue & Groove Pliers
|
